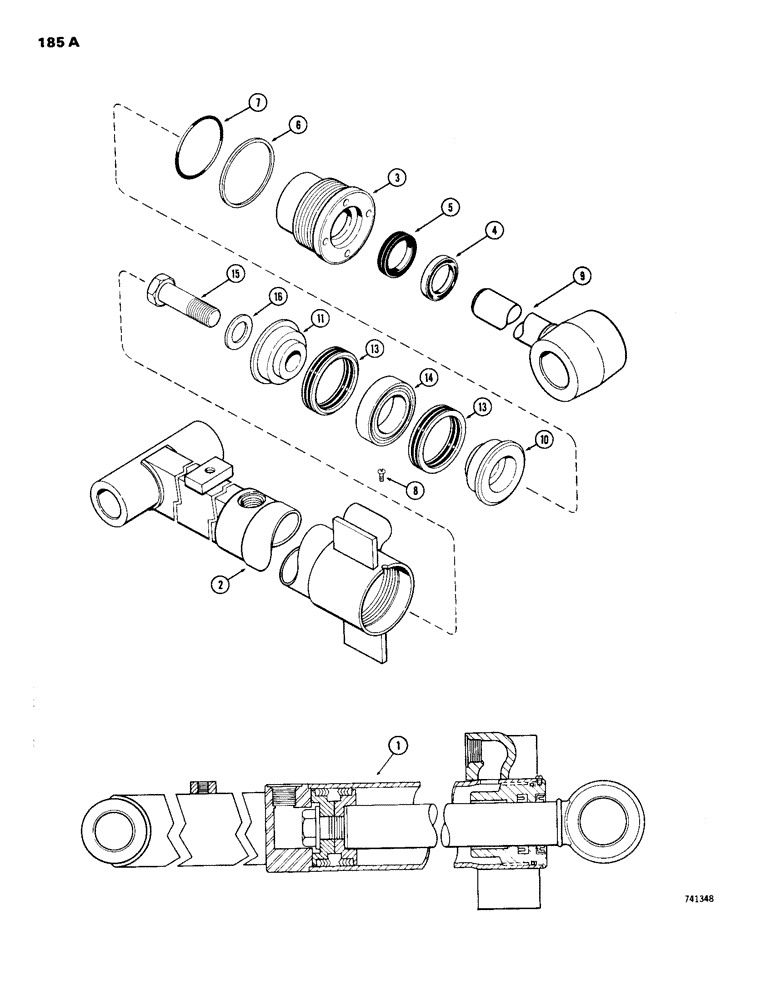

Запчасти Case 26S (185A) - G33204 DIPPER EXTENSION CYLINDER, GLAND HAS SOLID OUTER ROD WIPER, NO IDENTIFICATION RING

1

G33204

CYLINDER

ASSY. - dipper extension (3" dia. x 36-3/8" stroke), Inlcudes: Ref. 2 - 16

1шт.

2

G33205

TUBE,61.21" L

- cylinder body

1шт.

G33189

GLAND

ASSY. - w/bushing, Inlcudes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND ASSY.

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of seal kit P/N G33188

1шт.

5

D36969

CUP

SEAL - piston rod (1-1/2" x 2" x 7/16")

1шт.

Part of seal kit P/N G33188

1шт.

6

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit P/N G33188

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of seal kit P/N G33188

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

9

G33207

ROD

- piston (1-1/2" dia.)

1шт.

10

G33150

PISTON

- split (rod end)

1шт.

11

D28366

PISTON

- split (bolt end)

1шт.

G33151

PACKING

ASSY. - piston, Inlcudes: Ref. 13 and 14

1шт.

Part of seal kit P/N G33188

1шт.

13

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

14

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

15

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston (3/4 x 2-1/2" N.F. hex.)

1шт.

16

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt (7/8 x 1-3/8 x 9/64")

1шт.

G33188

SEAL

KIT - seal, Includes Refs. 4, 5, 6, 7 and G33151

1шт.

G100776

SEAL

- piston rod (Extreme heat or cold)

1шт.
