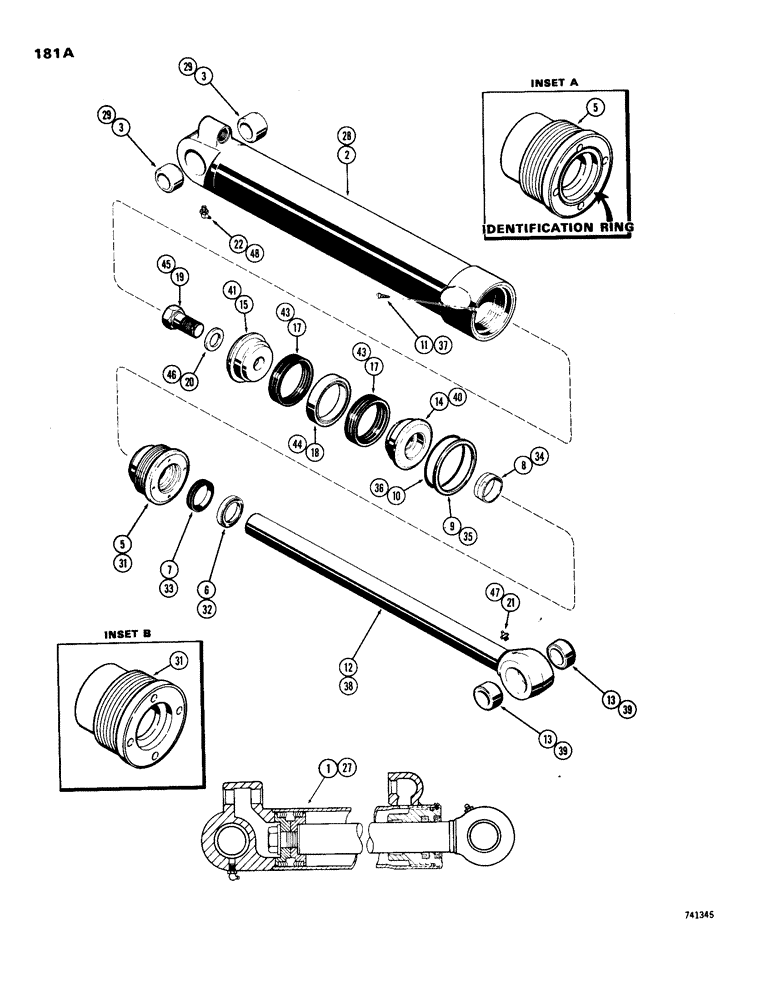

Запчасти Case 26S (181A) - G33291 BUCKET CYLINDER, GLAND HAS IDENTIFICATION RING

1

G33291

CYLINDER BLOCK

CYLINDER ASSY. - bucket (3-1/2" dia. x 26-1/2" stroke), Inlcudes: Ref. 2 - 22

1шт.

2

G33332

TUBE,34.22" L

ASSY. - cylinder body, Inlcudes: Ref. 3

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- tube

2шт.

G33579

COVER

GLAND ASSY., Inlcudes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - (w/identification ring)(See Inset A)

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16")

1шт.

Part of seal kit P/N G32289

1шт.

7

D36970

CUP

SEAL - piston rod (1-3/4 " x 2-1/4" x 7/16")

1шт.

Part of seal kit P/N G32289

1шт.

8

D27432

SHIM

- piston rod, inner (split type)

1шт.

Part of seal kit P/N G32289

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit P/N G32289

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of seal kit P/N G32289

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

G33335

ROD ASSY.

- piston (1-3/4" dia.)(w/identification ring), Inlcudes: Ref. 13

1шт.

13

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

14

G33331

PISTON

- split (rod end)(w/identification ring)

1шт.

15

D28896

PISTON

- split (bolt end)

1шт.

G33151

PACKING

ASSY. - piston

1шт.

17

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

18

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston (1-7/64 x 1-7/8 x 9/64")

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

27

G32162

CYLINDER ASSY. - bucket (3" dia. x 26-1/2" stroke), G32162 bucket cylinder gland has solid outer rod wiper-no identification ring, Inlcudes: Ref. 28 - 48

1шт.

28

D43078

CYLINDER

TUBE ASSY. - cylinder body, G32162 bucket cylinder gland has solid outer rod wiper-no identification ring, Inlcudes: Ref. 29

1шт.

29

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- tube, G32162 bucket cylinder gland has solid outer rod wiper-no identification ring

2шт.

30

G32735

ASSY., G32162 bucket cylinder gland has solid outer rod wiper-no identification ring, Inlcudes: Ref. 31 - 36

1шт.

31

NSS

NOT SOLD SEPARAT

GLAND - (w/o identification ring)(See Inset B), G32162 bucket cylinder gland has solid outer rod wiper-no identification ring

1шт.

32

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16"), G32162 bucket cylinder gland has solid outer rod wiper-no identification ring

1шт.

Part of seal kit P/N G32289

1шт.

33

D36970

CUP

SEAL - piston rod (1-3/4" x 2-1/4" x 7/16"), G32162 bucket cylinder gland has solid outer rod wiper-no identification ring

1шт.

Part of seal kit P/N G32289

1шт.

34

D27432

SHIM

- piston rod, inner (split type), G32162 bucket cylinder gland has solid outer rod wiper-no identification ring

1шт.

Part of seal kit P/N G32289

1шт.

35

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up, G32162 bucket cylinder gland has solid outer rod wiper-no identification ring

1шт.

Part of seal kit P/N G32289

1шт.

36

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8"), G32162 bucket cylinder gland has solid outer rod wiper-no identification ring

1шт.

Part of seal kit P/N G32289

1шт.

37

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping), G32162 bucket cylinder gland has solid outer rod wiper-no identification ring

1шт.

38

D43081

ROD ASSY.

- piston (1-3/4" dia.)(w/o identification ring), G32162 bucket cylinder gland has solid outer rod wiper-no identification ring, Inlcudes: Ref. 39

1шт.

39

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod, G32162 bucket cylinder gland has solid outer rod wiper-no identification ring

2шт.

40

D28897

PISTON

- split (rod end)(w/o identification ring), G32162 bucket cylinder gland has solid outer rod wiper-no identification ring

1шт.

41

D28896

PISTON

- split (bolt end), G32162 bucket cylinder gland has solid outer rod wiper-no identification ring

1шт.

42

RESERVED

1шт.

G33151

PACKING

ASSY. - piston, G32162 bucket cylinder gland has solid outer rod wiper-no identification ring, Inlcudes: Ref. 43 and 44

1шт.

Part of seal kit P/N G32289

1шт.

43

NSS

NOT SOLD SEPARAT

PACKING ASSY. "V" type, G32162 bucket cylinder gland had solid outer rod wiper-no identification ring

2шт.

44

NSS

NOT SOLD SEPARAT

RING - center bearing, G32162 bucket cylinder bgland has solid outer rod wiper-no identification ring

1шт.

45

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston, G32162 bucket cylinder gland has solid outer rod wiper-no identification ring Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

46

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-7/64 x 1-7/8 x 9/64"), G32162 bucket cylinder gland has solid outer rod wiper-no identification ring

1шт.

47

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.), G32162 bucket cylinder gland has solid outer rod wiper-no identification ring

1шт.

48

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , G32162 bucket cylinder gland has solild outer rod wiper-no identification ring 90º, 1/8" NPT x .84" lg

1шт.

G32289

SEAL

KIT - seal, Includes Refs. 6, 7, 8, 9, 10, 32, 33, 34, 35, 36 and G33151, G32162 bucket cylinder gland has solid outer rod wiper-no identification ring

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod (Extreme heat or cold), G32162 bucket cylinder gland has solid outer rod wiper-no identification ring

1шт.
