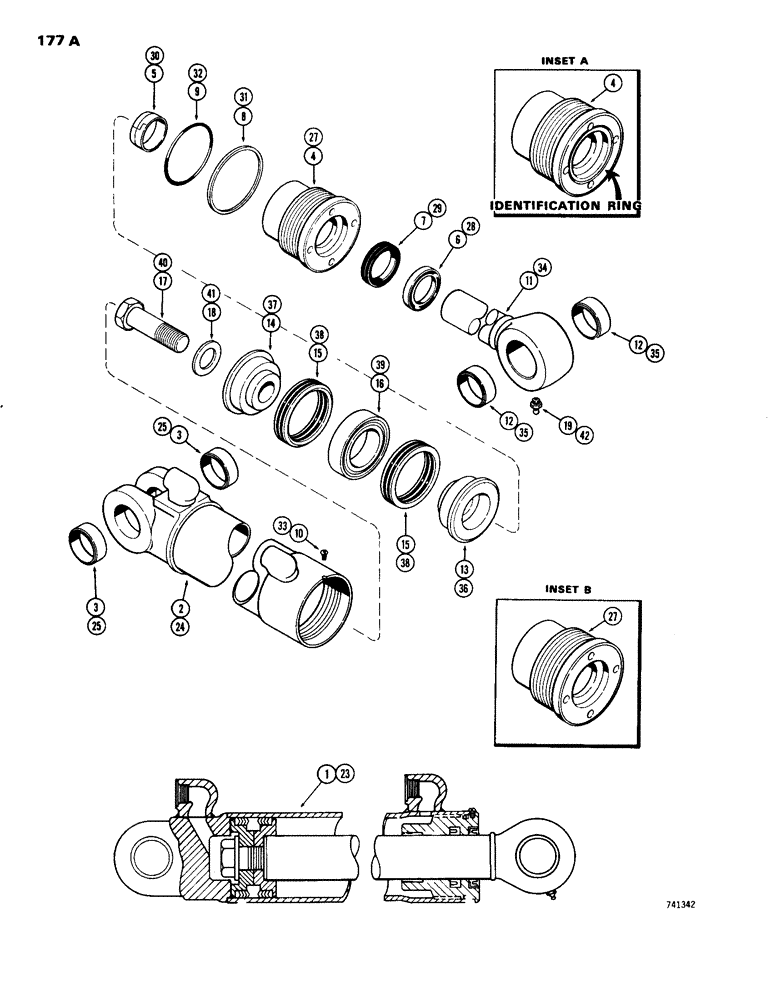

Запчасти Case 26S (177A) - D33596 DIPPER CYLINDER, GLAND HAS IDENTIFICATION RING

1

G33596

CYLINDER

ASSY. - dipper (3-1/2" dia. x 33-1/8" stroke), Inlcudes: Ref. 2 - 19

1шт.

2

D43068

CYLINDER

TUBE ASSY. - cylinder body, Inlcudes: Ref. 3

1шт.

3

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- tube

2шт.

G33191

GLAND

ASSY. - with bushing, Inlcudes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - See Inset A

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - piston rod, inner (solid type)

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of seal kit P/N G32729

1шт.

7

D36971

RING

SEAL - piston rod (2" x 2-1/2" x 7/16")

1шт.

Part of seal kit P/N G32729

1шт.

8

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit P/N G32729

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of seal kit P/N G32729

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

11

G33597

SCRAPER

ROD ASSEMBLY - piston (2" dia.), Inlcudes: Ref. 12

1шт.

12

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

13

G33167

PISTON

- split (Rod end)

1шт.

14

D28367

PISTON

- split (bolt end)

1шт.

15

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSY. - piston, "V" type

2шт.

Part of seal kit P/N G32729

1шт.

16

D47208

RING

- center bearing

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-7/64 x 1-7/8 x 9/64")

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

1шт.

G32729

SEAL

KIT - seal, Includes Refs. 6, 7, 8, 9 and 15

1шт.

23

G32158

CYLINDER

ASSY. - dipper (3-1/2" dia. x 33-1/8" stroke), G32158 dipper cylinder gland has solid outer rod wiper-no identification ring, Inlcudes: Ref. 24 - 42

1шт.

24

D43068

CYLINDER

TUBE ASSY. - cylinder body, G32158 dipper cylinder gland has solid outer rod wiper-no identification ring, Inlcudes: Ref. 25

1шт.

25

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- tube, G32158 dipper cylinder gland has solid outer rod wiper-no identification ring

2шт.

G32736

GLAND

ASSY. G32158 dipper cylinder gland has solid outer rod wiper-no identification ring, Inlcudes: Ref. 27 - 32

1шт.

27

NSS

NOT SOLD SEPARAT

GLAND - See Inset B, G32158 dipper cylinder gland has solid outer rod wiper-no identification ring

1шт.

28

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16"), G32158 dipper cylinder gland has solid outer rod wiper-no identification ring

1шт.

Part of seal kit P/N G32293

1шт.

29

D36971

RING

SEAL - piston rod (2" x 2-1/2" x 7/16"), G32158 dipper cylinder gland has solid outer rod wiper-no identification ring

1шт.

Part of seal kit P/N G32293

1шт.

30

D27380

SCRAPER RING

WIPER - piston rod, inner (split type), G32158 dipper cylinder gland has solid outer rod wiper-no identification ring

1шт.

31

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up, G32158 dipper cylinder gland has solid outer rod wiper-no identification ring

1шт.

Part of seal kit P/N G32293

1шт.

32

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8"), G32158 dipper cylinder gland has solid outer rod wiper-no identification ring

1шт.

Part of seal kit P/N G32293

1шт.

33

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping), G32158 dipper cylinder gland has solid outer rod wiper-no identification ring

1шт.

34

D43071

PISTON ROD

ROD ASSEMBLY - piston (2" dia.), G32158 dipper cylinder gland has solid outer rod wiper-no identification ring, Inlcudes: Ref. 35

1шт.

35

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod, G32158 dipper cylinder gland has solid outer rod wiper-no identification ring

2шт.

36

D28368

PISTON

- split (Rod end ), G32158 dipper cylinder gland has solid outer rod wiper-no identification ring

1шт.

37

D28367

PISTON

- split (bolt end), D32158 dipper cylinder gland has solid outer rod wiper-no identification ring

1шт.

38

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSY. - piston, "V" type, G32158 dipper cylinder gland has solid outer rod wiper-no identification ring

2шт.

Part of seal kit P/N G32293

1шт.

39

D47208

RING

- center bearing, G32158 dipper cylinder gland has solid outer rod wiper-no identification ring

1шт.

40

D32861

BOLT

- piston (1 x 2-1/2" N.F. hex.), G32158 dipper cylinder gland has solid outer rod wiper-no identification ring

1шт.

41

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-1/16 x 1-7/8 x 9/64"), G32158 dipper cylinder gland has solid outer rod wiper-no identification ring

1шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.), G32158 dipper cylinder gland has solid outer rod wiper-no identification ring

1шт.

G32293

SEAL

KIT - seal, Includes Refs. 28, 29, 31, 32 and 38, G32158 dipper cylinder gland has solid outer rod wiper-no identification ring

1шт.

G100778

SEAL

- piston rod (Extreme heat or cold), G32158 dipper cylinder gland has solid outer rod wiper-no identification ring

1шт.
