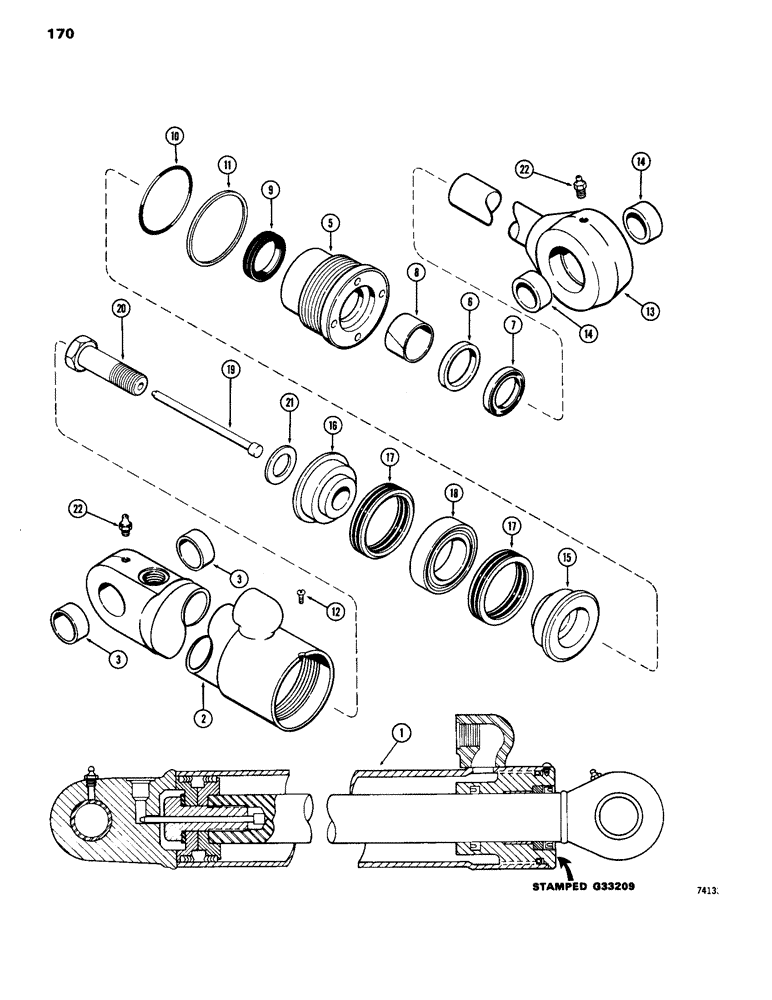

Запчасти Case 26S (170) - G33209 BOOM CYLINDER, GLAND IS STAMPED WITH CYLINDER PART NUMBER

1

G33209

CYLINDER

ASSEMBLY - boom (4" dia. x 37-7/8" stroke), Inlcudes: Ref. 2 - 22

1шт.

2

G33215

HYD CYL SLEEVE,46.95" L

TUBE ASSEMBLY - cylinder body, Inlcudes: Ref. 3

1шт.

3

D29325

BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

4

G34635

GLAND

ASSEMBLY, Inlcudes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer (2-1/4 x 2-3/4 x 5/16")

1шт.

Part of seal kit P/N G34636

1шт.

8

G34620

BUSHING

BEARING - center

1шт.

Part of seal kit P/N G34636

1шт.

9

D39359

RUBBER SEAL

SEAL - piston rod (2-1/4" x 2-3/4" x 7/16")

1шт.

Part of seal kit P/N G34636

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4-1/4 x 1/8")

1шт.

Part of seal kit P/N G34636

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland "O" Ring

1шт.

Part of seal kit P/N G34636

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

13

G33210

ROD ASSEMBLY - piston (2-1/4" dia.), Inlcudes: Ref. 14

1шт.

14

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- piston rod

2шт.

15

D49168

PISTON

- split (rod end)

1шт.

16

D46930

PISTON

- split (bolt end)

1шт.

17

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSEMBLY - piston ("V" type)

2шт.

Part of seal kit P/N G34636

1шт.

18

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

19

G33217

PIN

- cushion relief

1шт.

20

G33218

BOLT

- piston & relief pin retaining

1шт.

21

G32351

WASHER

- bolt (1-11/32 x 2-1/2 x 1/8")

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.

G34636

SEAL

KIT - seal, Includes Refs. 7, 8, 9, 10, 11 and 17

1шт.

G100779

SEAL

- piston rod (Extreme heat or cold)

1шт.
