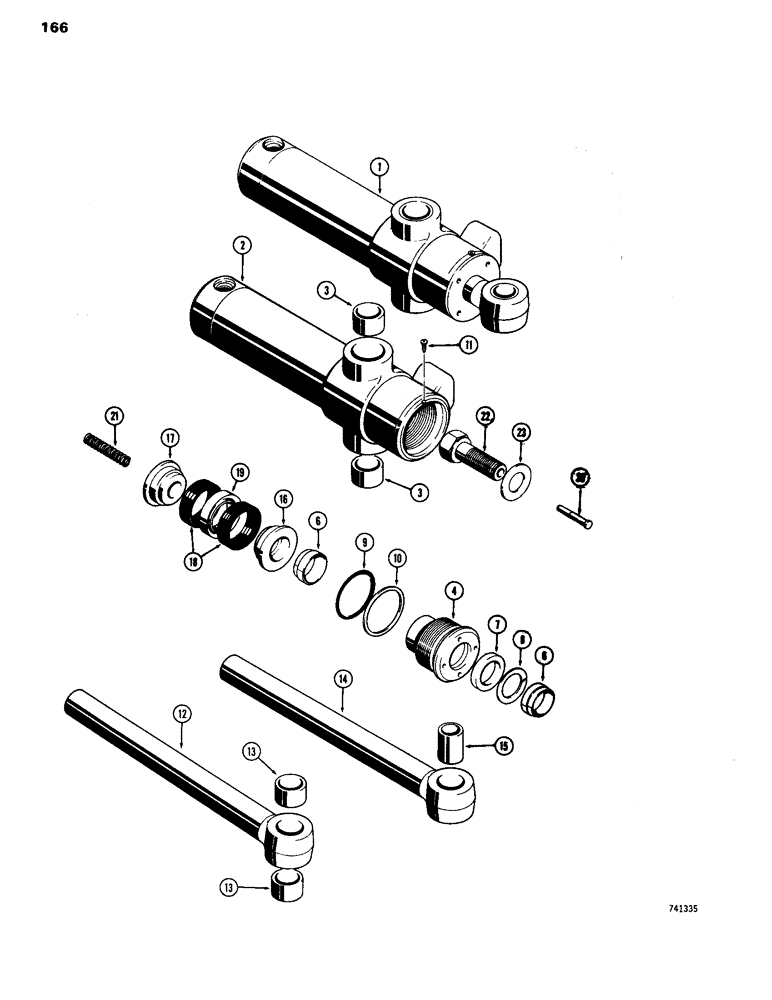

Запчасти Case 26S (166) - D48996 AND D48997 SWING CYLINDERS

1

D48996

CYLINDER

ASSEMBLY - swing, L.H. (3-1/2" dia. x 11" stroke), Inlcudes: Ref. 2 - 23

1шт.

1

D48997

CYLINDER

ASSEMBLY - swing, R.H. (3-1/2" dia. x 11" stroke), Inlcudes: Ref. 2 - 23

1шт.

2

D43044

TUBE

ASSEMBLY - cylinder body, L.H., Inlcudes: Ref. 3

1шт.

2

D43045

TUBE

ASSEMBLY - cylinder body, R.H., Inlcudes: Ref. 3

1шт.

3

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- tube trunnion

2шт.

4

D45295

GLAND

1шт.

5

D47896

GLAND

PACKING KIT - gland, Inlcudes: Ref. 6 - 11

1шт.

6

D27706

WIPER SEAL

WIPER - piston rod, inner & outer (split type)

2шт.

7

D36969

CUP

SEAL - piston rod (1-1/2" x 2" x 7/16")

1шт.

Extreme heat or cold

1шт.

8

D28498

RING

- piston rod seal back-up

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

10

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- gland "O" ring back-up

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

D48998

ROD

ASSEMBLY - piston (1-1/2" dia.) With 2 bushings, Inlcudes: Ref. 13

1шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- piston rod (1-3/8 x 1-1/2 x 3/4")

2шт.

14

D43050

ROD ASSEMBLY - piston (1-1/2" dia.) With 1 bushing (Order D48998), Inlcudes: Ref. 15

1шт.

15

D43056

BUSHING

- piston rod (1-3/8 x 1-1/2 x 1-3/4")

1шт.

16

D43054

PISTON - split (rod end)

1шт.

17

D28367

PISTON

- split (bolt end)

1шт.

18

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSEMBLY - piston

2шт.

19

D47208

RING

- center bearing

1шт.

20

D46171

AXLE PIN

PIN - restrictor

1шт.

21

D44554

VALVE SPRING

SPRING - restrictor pin

1шт.

22

D44571

BOLT

BOLT - piston & pin retaining

1шт.

23

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- bolt (1-7/64 x 1-7/8 x 9/64")

1шт.

G100776

SEAL

- piston rod (Extreme heat or cold)

1шт.
