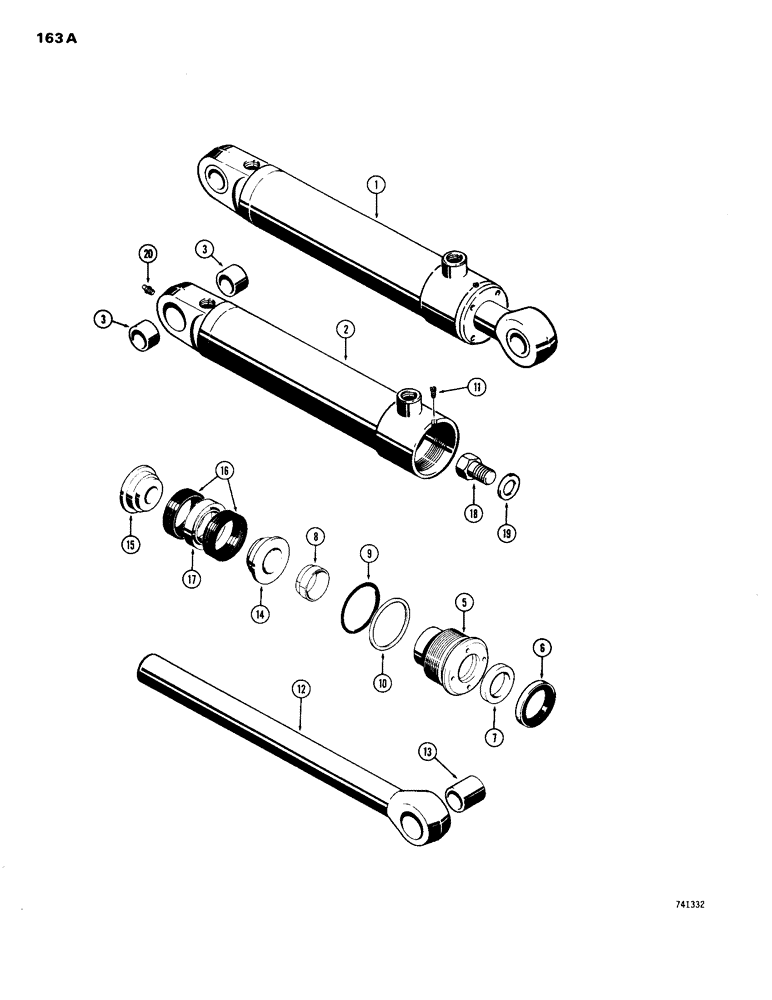

Запчасти Case 26S (163A) - G32173 STABILIZER CYLINDER, GLAND HAS SOLID OUTER ROD WIPER, NO IDENTIFICATION RING

1

G32173

CYLINDER

ASSEMBLY - stabilizer (3-1/2" dia. x 11-1/2" stroke), Inlcudes: Ref. 2 - 20

2шт.

2

D36680

TUBE

ASSEMBLY - cylinder body, Inlcudes: Ref. 3

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

G32743

GLAND

ASSEMBLY, Inlcudes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16")

1шт.

Part of seal kit P/N G32298

1шт.

7

D36970

CUP

SEAL - piston rod (1-3/4" x 2-1/4" x 7/16")

1шт.

Part of seal kit P/N G32298

1шт.

8

D27432

SHIM

- piston rod, inner (Split Type)

1шт.

Part of seal kit P/N G32298

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of seal kit P/N G32298

1шт.

10

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of seal kit P/N G32298

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

D36684

ROD ASSY.

ROD ASSEMBLY - piston (1-3/4" dia.), Inlcudes: Ref. 13

1шт.

13

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- piston rod

1шт.

14

D28369

PISTON

- split (rod end)

1шт.

15

D28367

PISTON

- split (rod end)

1шт.

16

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSEMBLY- piston, "V" type

2шт.

Part of seal kit P/N G32298

1шт.

17

D47208

RING

- center bearing

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston, retaining Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- ret. bolt (1-7/64 x 1-7/8 x 9/64")

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

G32298

SEAL

KIT - seal, Includes: Refs. 6 - 10 and 16

1шт.

100777

SEAL - piston rod (Extreme heat or cold)

1шт.
