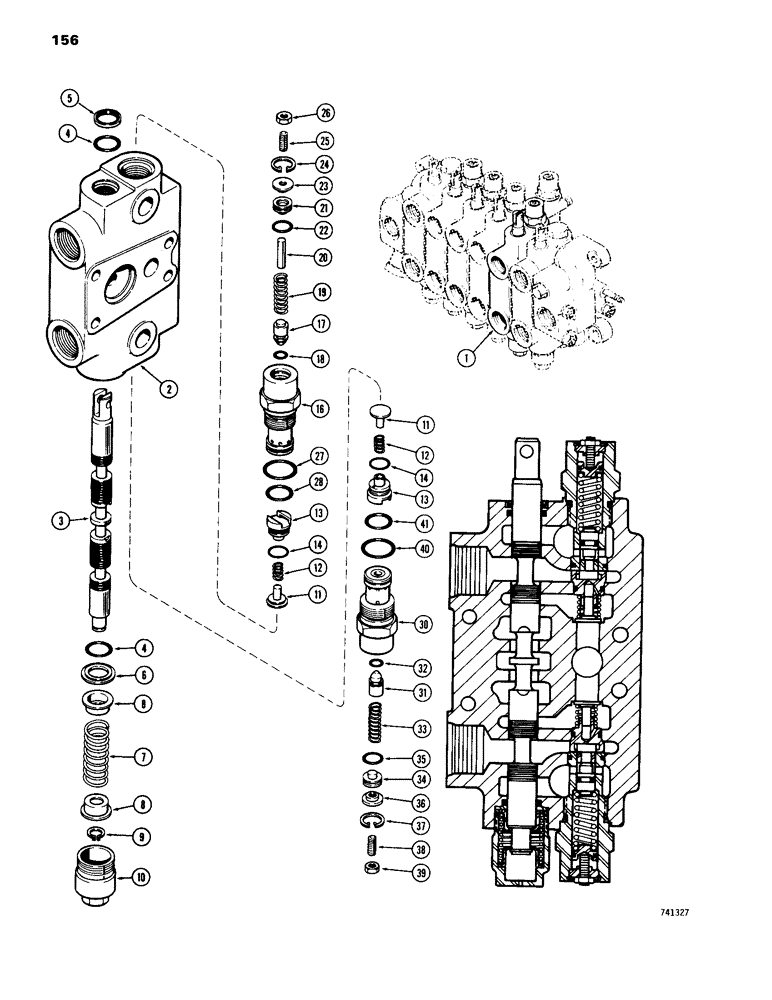

Запчасти Case 26S (156) - G33119 BOOM SECTION

1

G33119

VALVE

ASSY. - boom, Inlcudes: Ref. 2 - 41

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - boom valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - boom valve

1шт.

4

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O"RING - body (3/4 x 15/16 x 3/32")

2шт.

5

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

- valve spool (3/4 x 1 x 1/8")

1шт.

6

G33803

RETAINER

- body "O" ring

1шт.

7

G34463

SPRING

- spool centering (2-9/32" free length) (replaces G34257 & G34016 springs)

1шт.

8

G33075

RETAINER,12.2mm ID, 27.9mm OD

- centering spring

2шт.

9

G33077

SNAP RING,#47, Ext

Ring, Snap, , retainer #47, Ext

1шт.

10

P0033080G

SCREW

- centering spring

1шт.

11

G33081

VALVE POPPET

POPPET - load check

2шт.

12

G33573

SPRING

- load check (11/16" free length)

2шт.

13

G33084

PLUG

- load check

2шт.

14

G33686

O-RING,0.07" Thk x 0.61" ID

"O"RING - plug (5/8 x 3/4 x 1/16")

2шт.

15

G34052

KIT

VALVE ASSEMBLY - relief, upper (1250 P.S.I.) (Replaces G33120), Inlcudes: Ref. 16 - 28

1шт.

For service order G34862 service kit.

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

17

G33089

VALVE

POPPET - relief valve

1шт.

18

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Poppet

1шт.

19

G33090

SPRING

- relief valve (1-25/32" free length)

1шт.

20

G33241

PIN

- stop, relief valve

1шт.

21

G33091

PISTON

- relief valve

1шт.

22

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"O"RING - piston (1/2 x 5/8 x 1/16")

1шт.

23

G33092

RETAINER

- relief valve

1шт.

24

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, 0.75", Int, #75

1шт.

25

178-630

SET SCREW,Hex Soc, 1/4"-20 x 3/4"

SCREW - set, piston (1/4" N.C. x 3/4") (hex. sckt., headless, oval pt.)

1шт.

26

25-144

JAM NUT,Jam, 1/4"-20, G5

- lock, set screw (1/4" N.C. hex., jam)

1шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O"RING - valve body (15/16 x 1-1/8 x 1/8")

1шт.

28

G33093

O-RING

"O"RING - valve body (3/4 x 7/8 x 1/16")

1шт.

G34043

KIT

VALVE ASSEMBLY - relief, lower (2750 P.S.I.) (Replaces G33085), Inlcudes: Ref. 30 - 41

1шт.

For service order G34862 service kit.

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

31

G33089

VALVE

POPPET - relief valve

1шт.

32

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Poppet

1шт.

33

G33090

SPRING

- relief valve (1-25/32" free length)

1шт.

34

G33091

PISTON

- relief valve

1шт.

35

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"O" RING - piston (1/2 x 5/8 x 1/16")

1шт.

36

G33092

RETAINER

- relief valve

1шт.

37

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, 0.75", Int, #75

1шт.

38

178-630

SET SCREW,Hex Soc, 1/4"-20 x 3/4"

SCREW - set, piston (1/4" N.C. x 3/4") (hex. sckt., headless, oval pt.)

1шт.

39

25-144

JAM NUT,Jam, 1/4"-20, G5

- lock, set screw (1/4" N.C. hex., jam)

1шт.

40

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - valve body (15/16 x 1-1/8 x 1/8")

1шт.

41

G33093

O-RING

"O" RING - valve body (3/4 x 7/8 x 1/16")

1шт.
