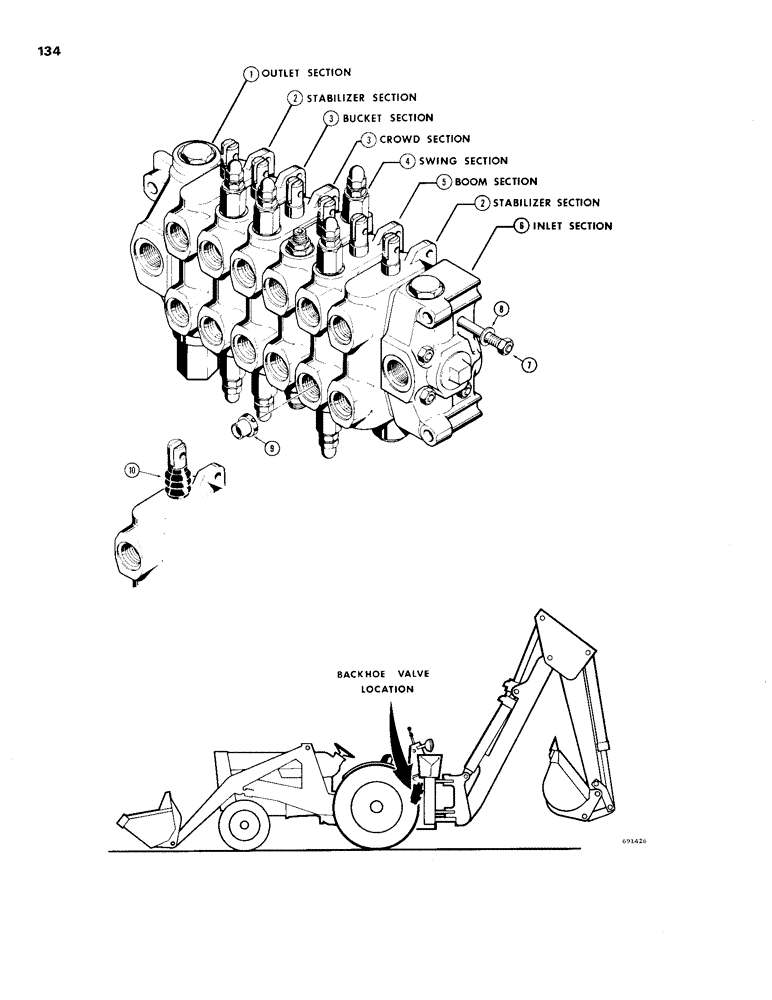

Запчасти Case 26S (134) - D39047 BACKHOE CONTROL VALVE

D39047

VALVE

- backhoe control, Inlcudes: Ref. 1 - 8

1шт.

1

D37146

KNIFE SECTION

OUTLET SECTION - backhoe control valve (Parts list Figure 136)

1шт.

2

D26842

ELEMENT

STABILIZER SECTION - backhoe control valve (Parts list Figure 138)

2шт.

3

D40750

SECTOR

BUCKET AND CROWD SECTION - backhoe control valve (Parts list Figure 140)

2шт.

4

D40749

SECTOR

SWING SECTION - backhoe control valve (Parts list Figure 142)

1шт.

5

D40748

SECTOR

BOOM SECTION - backhoe control valve (Parts list Figure 144)

1шт.

6

D37349

KNIFE SECTION

INLET SECTION - backhoe control valve (Parts list Figure 136)

1шт.

7

D26846

STUD

ASSEMBLY - backhoe control valve

4шт.

8

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

9

D47559

VALVE

RESTRICTOR - boom drop, D40748 boom section only

1шт.

10

D42631

BELLOWS

- valve spool, service options

6шт.
