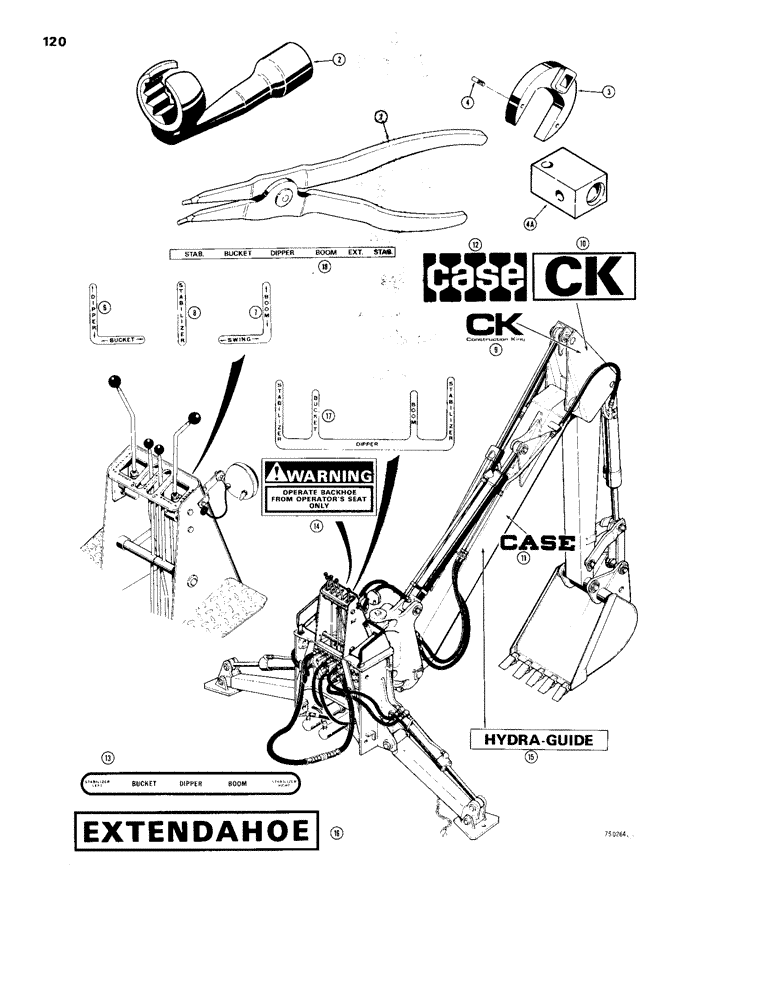

Запчасти Case 26S (120) - TOOLS

1

D32049

TOOL

PLIERS - snap ring

1шт.

2

D38971

TOOL

WRENCH - crowfoot, 1/2" drive (For backhoe hose 1" fittings)

1шт.

D27216

TOOL

WRENCH - crowfoot, 1/2" drive (For backhoe hose 1-1/16" fittings)

1шт.

D28774

TOOL ASSY.

WRENCH - crowfoot, 1/2" drive (For backhoe hose 1-1/4" fittings)

1шт.

D44110

OPEN END WRENCH

SET - spanner wrench (For removing and installing packing gland in threaded gland type hydraulic cylinders), Inlcudes: Ref. 3 and 4

1шт.

3

D44111

OPEN END WRENCH

WRENCH - spanner, for 2-1/2" I.D. cylinder with 1-1/4" or 1-1/2" piston rods, Inlcudes: Ref. 4

1шт.

D44112

OPEN END WRENCH

WRENCH - spanner, for 3" I.D. cylinders with 1-1/2" piston rod, Inlcudes: Ref. 4

1шт.

D44113

OPEN END WRENCH

WRENCH - spanner, for 3" I.D. cylinders with 1-3/4" piston rod, Inlcudes: Ref. 4

1шт.

D44114

OPEN END WRENCH

WRENCH - spanner, for 3-1/2" I.D. cylinders with 1-3/4" or 2" piston rods, Inlcudes: Ref. 4

1шт.

G33234

OPEN END WRENCH

WRENCH - spanner, for 4" I.D. cylinders with 2" or 2-1/4" piston rods, Inlcudes: Ref. 4

1шт.

G33235

OPEN END WRENCH

WRENCH - spanner, for 4-1/2" I.D. cylinders with 2-1/2" piston rod, Inlcudes: Ref. 4

1шт.

4

D30107

PIN

- spanner wrench, for 2-1/2" I.D. thru 4" I.D. cylinders

3шт.

D44118

SPARE PART

PIN - spanner wrench, for 4-1/2" I.D. cylinders

3шт.

4a

G35216

BLOCK

TEST BLOCK - port relief valves

1шт.

6

321-917

DECAL

- dipper arm, deacals early production

1шт.

7

321-918

DECAL

- boom and swing, decals early production

1шт.

8

321-919

DECAL

- stabilizer, decals early production

1шт.

9

321-1003

DECAL

- CK, dipper arm (If used), decals early production

2шт.

10

321-1482

DECAL

- CK, dipper arm (If used), decals early production

2шт.

11

321-1010

DECAL

- CASE, on boom (If used), decals early production

2шт.

12

321-1440

DECAL

- CASE, dipper arm and console (If used), decals early production

3шт.

13

D30664

DECAL

- control console, individual control (26S Backhoe), decals early production

1шт.

14

321-3054

DECAL

- operator's warning (R.H. and L.H. side of console), decals early prodction

2шт.

15

321-1831

DECAL

- "Hydra-Guide" (If used), decals early production

2шт.

16

321-2058

DECAL

- "EXTENDAHOE" (If used), decals early production

1шт.

17

321-921

DECAL

- control console, individual control (Used on all backhoes except those with extendable dippers after back- hoe Sn. 5224733), decals early production

1шт.

18

321-2454

DECAL

- control console, individual control (Used on Back- hoes with extendable dipper, backhoe Sn. 5224733 and after), decals early production

1шт.
