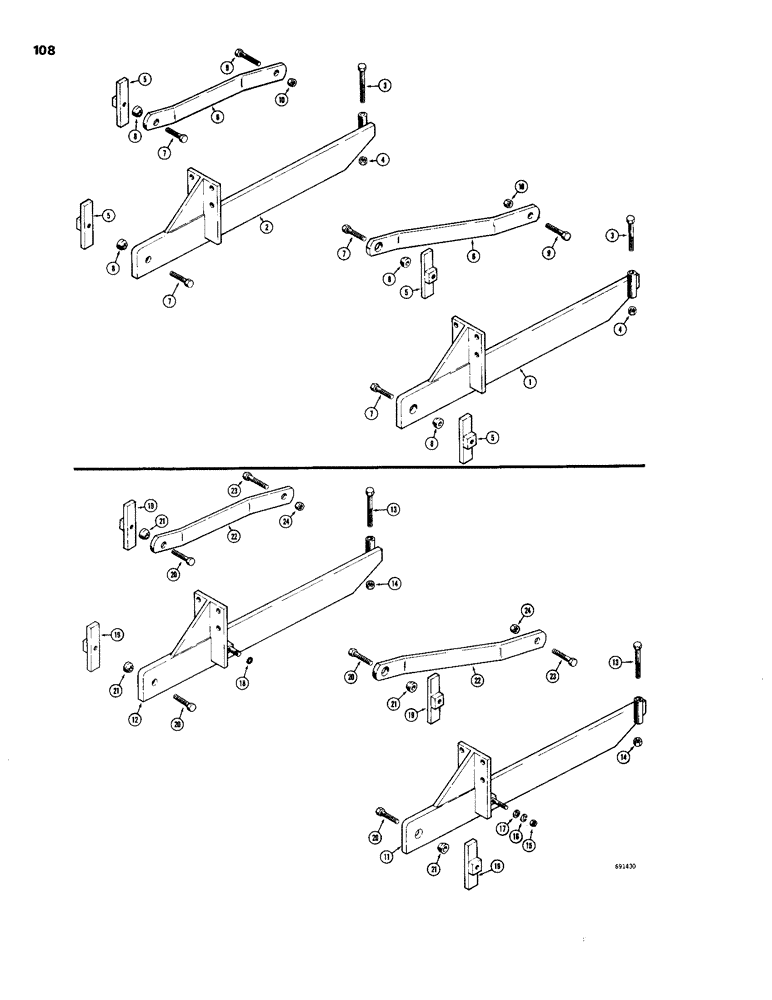

Запчасти Case 26S (108) - BACKHOE MOUNTING PARTS, FOR 480 AND 480 B TRACTORS, USED ON MODELS WITHOUT DRAFT-O-MATIC OR P.T.O.

1

D44834

SUPPORT ARM - lower, R.H.

1шт.

2

D44833

SUPPORT ARM - lower, L.H.

1шт.

3

13-12108

BOLT,Hex, 3/4" - 10 x 6-3/4", Gr 5

HHCS - 3/4" - 10 NC x 6-3/4"

2шт.

4

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC)

2шт.

5

D31496

SPECIAL NUT

NUT - special, knockoff

4шт.

6

D30726

ARM

SUPPORT ARM - upper

2шт.

7

13-2080

BOLT,Hex, 1-1/4" - 7 x 5", Gr 5

4шт.

8

D30717

WASHER

- cone, 15 degrees

4шт.

9

D44832

BOLT

- special

2шт.

10

25-1020

NUT,1 1/4"-7, G5

2шт.

11

D46662

SUPPORT ARM - lower, R.H., used on models with draft-0-matic

1шт.

12

D46663

SUPPORT ARM - lower, L.H., used on models with draft-0-matic

1шт.

13

13-12108

BOLT,Hex, 3/4" - 10 x 6-3/4", Gr 5

HHCS - 3/4" - 10 NC x 6-3/4", used on models with draft-0-matic

2шт.

14

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC), used on models with draft-0-matic

2шт.

15

25-1010

NUT,5/8"-11, G5

Used on models with Draft-o-matic 5/8"-11, G5

2шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used on models with Draft-o-matic 5/8"

2шт.

17

95-10

WASHER,5/8"

- plain (), used on models with draft-0-matic 5/8"

2шт.

18

B18206

SNAP RING,#87, Ext

Ring, Snap, , used on models with draft-o-matic #87, Ext

2шт.

19

D31496

SPECIAL NUT

NUT - special, knockoff, used on models with draft-0-matic

4шт.

20

13-2080

BOLT,Hex, 1-1/4" - 7 x 5", Gr 5

Used models with Draft-o-matic Hex, 1 1/4"-7 x 5", G5

4шт.

21

D30717

WASHER

- cone, 15 degrees, used on models with draft-0-matic

4шт.

22

D30726

ARM

SUPPORT ARM - upper, used on models with draft-0-matic

2шт.

23

D44832

BOLT

- special, used on models with draft-0-matic

2шт.

24

25-1020

NUT,1 1/4"-7, G5

Used on models with Draft-o-matic 1 1/4"-7, G5

2шт.

11

L44190

SUPPORT ARM - lower, R.H., used on models with p.t.o. and with or without draft-0-matic

1шт.

12

L44191

SUPPORT ARM - lower, L.H., used on models with p.t.o. and with or without draft-0-matic

1шт.

13

13-12108

BOLT,Hex, 3/4" - 10 x 6-3/4", Gr 5

HHCS - 3/4" - 10 NC x 6-3/4", used on models with p.t.o. and with or without draft-0-matic

2шт.

14

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC), used on models with p.t.o. and with or without draft-0-matic

2шт.

15

25-1010

NUT,5/8"-11, G5

Used on models with PTO and with or without Draft-o-matic 5/8"-11, G5

2шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used on models with PTO and with or without Draft-o-matic 5/8"

2шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used on models with PTO and with or without Draft-o-matic 5/8"

2шт.

17

95-10

WASHER,5/8"

- plain (), used on models with p.t.o. and with or without draft-0-matic 5/8"

2шт.

18

B18206

SNAP RING,#87, Ext

Ring, Snap, , used on models with PTO and with or without draft-o-matic #87, Ext

2шт.

19

D31496

SPECIAL NUT

NUT - special, knockoff, used on models with p.t.o. and with or without draft-0-matic

4шт.

20

D30716

BOLT

- special, used on models with p.t.o. and with or without draft-0-matic

4шт.

21

D30716

BOLT

WASHER - cone, 15 degrees, used on models with p.t.o. and with or without draft-0-matic

4шт.

22

L44187

BRACE

SUPPORT ARM - upper (When stock is exhausted, order D57353 arm for service), used on models with p.t.o. and with or without draft-0-matic

2шт.

22

D57353

ARM

SUPPORT ARM - upper, used on models with p.t.o. and with or without draft-0-matic

2шт.

23

D44832

BOLT

- special, used on models with p.t.o. and with or without draft-0-matic

2шт.

24

25-1020

NUT,1 1/4"-7, G5

Used on models with PTO and with or without Draft-o-matic 1 1/4"-7, G5

2шт.
