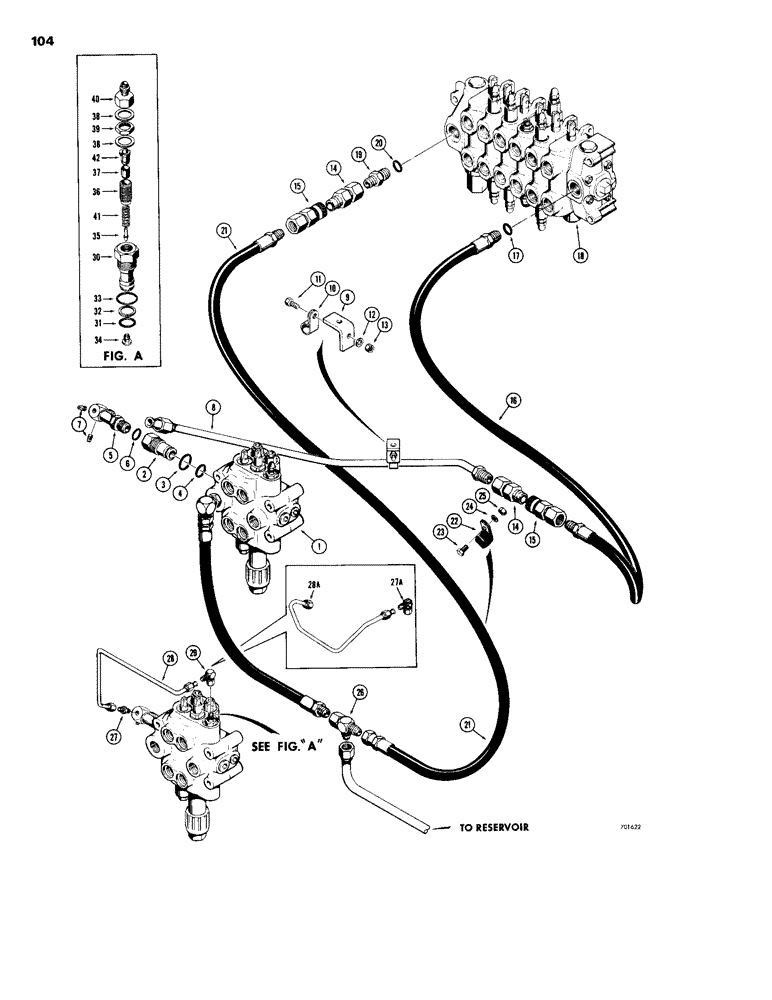

Запчасти Case 26S (104) - BASIC BACKHOE HYDRAULICS, FOR 310G AND 350 CRAWLERS

1

REF

INSTRUCTION

VALVE - equipment control (See Model 310G Crawler Parts Catalog No. F1104 for breakdown)

1шт.

2

D61251

FITTING

- carryover, Inlcudes: Ref. 3 and 4

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, large

1шт.

4

L32680

RING

SEAL - "O" ring, small

1шт.

5

D35472

FITTING

ELBOW - special (Used with 3 spool valves only), Inlcudes: Ref. 6

1шт.

D37824

ELBOW - special (Used with 2 spool valves only), Inlcudes: Ref. 6

1шт.

D38646

ELBOW - special (Used with 1 spool valves only), Inlcudes: Ref. 6

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

7

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT)

2шт.

8

D39150

TUBE - pressure

1шт.

9

D38617

BRACKET - mounting, tube clamp

1шт.

10

R11405

CLAMP

- tube

1шт.

11

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

13

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

14

D31617

COUPLING, BREAK AWAY

COUPLING - quick disconnect, male (Parts list Figure 60)

2шт.

15

D31618

COUPLING, BREAK AWAY

COUPLING - quick disconnect, female (Parts list Figure 60)

2шт.

16

D38618

HOSE - at backhoe control valve, inlet port (32" long)

1шт.

17

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

18

REF

INSTRUCTION

VALVE - backhoe control (See Figures 134 and 146 for proper valve)

1шт.

19

218-5017

ADAPTER

- 1" tube to 3/4" NPT , Inlcudes: Ref. 20

1шт.

20

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

21

D38619

HOSE ASSY.

HOSE - at backhoe control valve, outlet port (68" long)

1шт.

22

84183C1

CLAMP

- hose

1шт.

23

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

1шт.

24

92-8

LOCK WASHER,1/2"

1шт.

25

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

26

D39149

TEE

- special

1шт.

27

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

CONNECTOR - straight (Early production), used on dozer backhoe models only

1шт.

27a

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- male, 90 degrees (Late production), used on dozer backhoe models only

1шт.

28

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

TUBE - special elbow to dual main relief (Early production), used on backhoe models only

1шт.

28a

D51749

TUBE - special elbow to dual main relief (Late production), used on backhoe models only

1шт.

29

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- swilvel, 90 degrees (Early production), used on dozer backhoe models only

1шт.

D38570

VALVE

- dual main relief, used on dozer backhoe models only, Inlcudes: Ref. 30 - 42

1шт.

30

D37045

CAP

BODY - valve, used on dozer backhoe models only

1шт.

31

L30444

O-RING,0.521" ID x 0.661" OD

SEAL - "O" ring, small, used on dozer backhoe models only

1шт.

32

L30443

BACK-UP RING,0.547" ID x 0.049" Width

- backup, used on dozer backhoe models only

1шт.

32

L30443

BACK-UP RING,0.547" ID x 0.049" Width

- backup, used on dozer backhoe models only

1шт.

34

D26266

SEAT

- pilot, used on sozer backhoe models only

1шт.

35

D26267

PLUNGER

- pilot, use on dozer backhoe models only

1шт.

36

D27258

ADJUSTMENT SCREW,5/8" - 18 x 1 1/16"

- adjusting, used on dozer models only

1шт.

37

D27261

PISTON

- relief valve, used on dozer backhoe models only

1шт.

38

D27259

SEAL

- special, used on dozer backhoe models only

2шт.

39

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex., jam (5/8" - 18 NF), used on dozer backhoe models only

1шт.

40

D27260

FITTING

- pilot, used on dozer backhoe models only

1шт.

41

D37043

SPRING - pilot (Used with D41525 retainer only) See ref. no. 42, used on dozer backhoe models only

1шт.

D26268

SPRING

- pilot (Used with D41764 retainer only) See ref. no. 42., used on dozer backhoe models only

1шт.

42

D41525

RETAINER - piston, early production (Code number "2"), used on dozer backhoe models only

1шт.

D41764

RETAINER - piston, late production (Code number "3"), used on dozer backhoe models only

1шт.

33

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, large, used on dozer backhoe models only

1шт.
