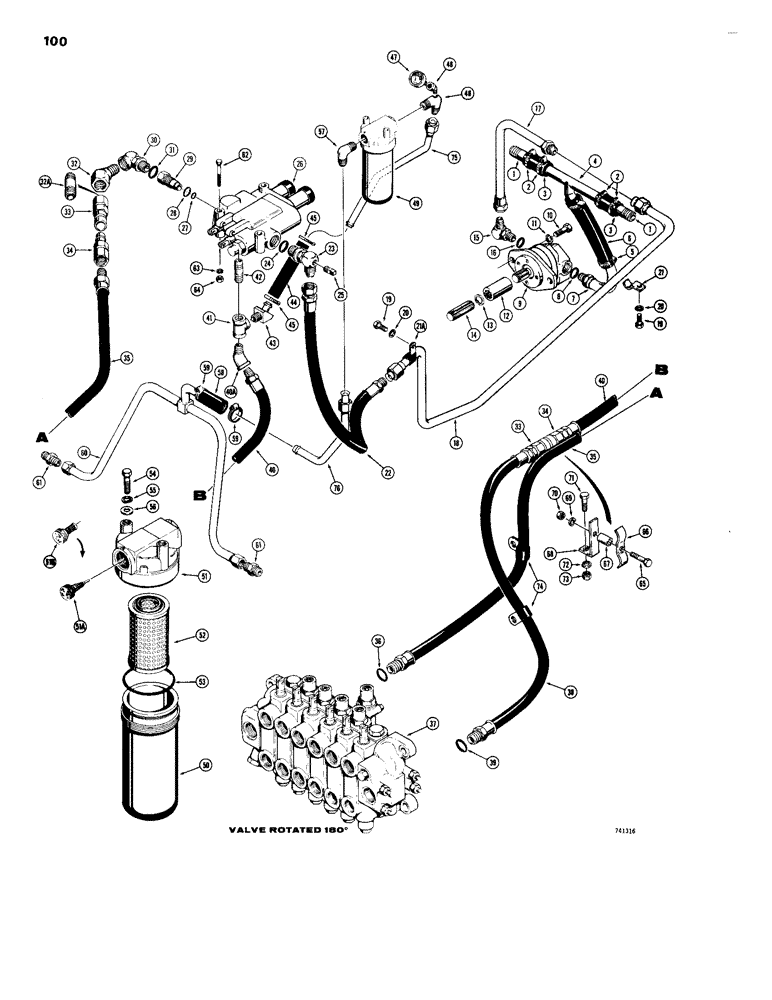

Запчасти Case 26S (100) - BASIC BACKHOE HYDS., BACKHOE S/N 5220992 & AFTER, WITH HYD. OIL FILTER HOUSING DOWN, FOR 480 B TRAC.

1

D33363

FITTING

STEM - hose, hydraulic reservoir

2шт.

2

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

3

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- low pressure, at reservoir 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

4

D41098

TEE

TUBE - special, Serial Range: reservoir-pump

1шт.

5

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

6

D54149

HOSE ASSY.

HOSE - low pressure

1шт.

7

D26747

STEM - hose, Inlcudes: Ref. 8

1шт.

8

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

9

REF

INSTRUCTION

PUMP - hydraulic, Loader Backhoe Models (See 26 & 26B Loader Catalog No. C1124, page 85 for proper pump)

1шт.

10

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

11

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

12

D31108

SPLINED COUPLING

COUPLING - female, pump to shaft, Inlcudes: Ref. 13

1шт.

13

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , coupling 0.75", Int, #75

1шт.

14

D30569

SHAFT

- pump drive

1шт.

15

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 16

1шт.

16

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

17

D55369

TUBE

- pump to valve (At pump)

1шт.

18

D55975

TUBE

-, Serial Range: pump-valve

1шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

21

D55880

CLAMP

- tube

1шт.

21a

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- tube

1шт.

22

D24646

HOSE ASSY.

HOSE - pump to loader valve (25" long)

1шт.

23

D26360

ELBOW - special, 90 degrees, Inlcudes: Ref. 24

1шт.

24

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

25

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, sq. hd. (1/4" NPT)

1шт.

26

REF

INSTRUCTION

VALVE - loader control (2 spool) See 26 & 26B Loader Catalog No. C1124 for proper valve (Parts list page 87)

1шт.

27

D53169

RING

SEAL - quad ring

1шт.

28

D48086

SEAL,1.358" ID

GASKET - copper

1шт.

29

D48085

SLEEVE

- valve

1шт.

30

D25353

ELBOW - special, 90 degrees, Inlcudes: Ref. 31

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

32

217-1088

ELBOW,45 Degree, 3/4"-14 Female x 3/4"-14 Male

- special, 45 degrees

1шт.

32a

221-212

NIPPLE, LUBE

NIPPLE - pipe, straight (3/4" x 1-1/2")

1шт.

33

D52800

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female (Parts list Figure 62)

2шт.

34

D52694

QUICK MALE COUPLING

COUPLING - quick disconnect, male (Parts list Figure 62)

2шт.

35

D37540

HOSE

- control valve to backhoe valve (83" long), Inlcudes: Ref. 36

1шт.

36

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

37

REF

INSTRUCTION

VALVE - backhoe control (See Figure 146 for proper valve) Catalog No. A984, A1101 or C1162 for proper valve)

1шт.

38

D37541

HOSE

- backhoe valve to loader valve (43" long), Inlcudes: Ref. 39

1шт.

39

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

40

D32178

HOSE

- backhoe valve to loader valve (24" long)

1шт.

40a

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

- street, 45 degrees

1шт.

41

221-425

FITTING,3/4" NPT

TEE - female

1шт.

42

221-215

PIPE,Nipple, 3/4" NPT x 2"

NIPPLE - pipe, 3/4" x 2"

1шт.

43

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

STEM - hose, 45 degrees

1шт.

44

NLS

NO LONGER SERVICED

HOSE - low pressure (9-1/2" long)

1шт.

45

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

2шт.

46

D55728

ELBOW UNION

ELBOW - male, 90 degrees (Special)

1шт.

47

D29650

ELECTRICAL GAUGE

GAUGE - filter condition indicator

1шт.

48

221-401

ELBOW,45 Degree, 1/8"-27, NPT

- street, 45 degrees (1/8" NPT)

1шт.

49

D43567

FILTER ASSY

- hydraulic oil, Inlcudes: Ref. 50 - 53

1шт.

50

D42439

HOUSING

- filter

1шт.

D42440

FILTER HEAD

HEAD ASSEMBLY - filter (When stock is exhausted, order D61903 head assembly for service)

1шт.

D61903

HEAD

ASSEMBLY - filter, Inlcudes: Ref. 51 - 51B

1шт.

51

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

51a

D49377

LOCK VALVE

VALVE - by-pass (D42440 head assembly only)

1шт.

51b

D58199

VALVE

- by-pass (D61903 head assembly only)

1шт.

D43800

FILTER, ELEMENT

KIT - element, Inlcudes: Ref. 52 and 53

1шт.

52

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

53

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

54

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

55

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

56

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

57

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- male, 90 degrees

1шт.

58

32798

HOSE

- low pressure, filter reservoir

1шт.

59

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

60

D39843

TUBE - crossover, at reservoir

1шт.

61

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - straight male

2шт.

62

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

3шт.

63

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

64

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

65

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

66

D42833

CLAMP

- hose

1шт.

67

D33554

BUSHING

SPACER - hose clamp

1шт.

68

D31392

CLAMP

BRACKET - hose clamp mounting

1шт.

69

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

70

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

71

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

72

92-8

LOCK WASHER,1/2"

1шт.

73

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

74

A17323

CLAMP - hose

2шт.

75

D55750

TUBE

- filter inlet, gauge side

1шт.

76

D55973

TUBE - filter outlet

1шт.
