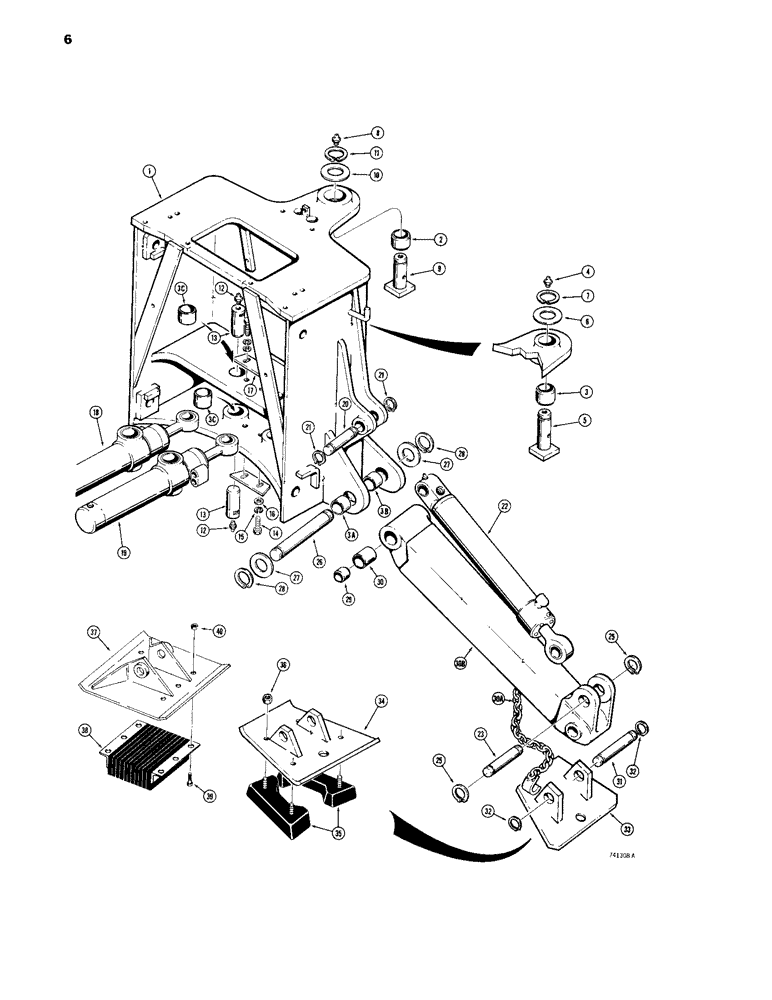

Запчасти Case 26S (006) - MOUNTING FRAME AND STABILIZERS

1

D44845

FRAME

- backhoe mounting (Used before backhoe Sn. 5224733) When stock is exhausted, order D57260 frame for service), Includes: Ref. 2 - 3C

1шт.

1

D57260

FRAME

- backhoe mounting (Used on backhoe Sn. 5224733 as production item, prior to Sn. 5224733 as service replace- ment), Includes: Ref. 2 - 3C

1шт.

1

D46935

FRAME - backhoe mounting (310g, 350 and 450 models only), Includes: Ref. 2 - 3C

1шт.

2

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- frame to swing tower, top

1шт.

3

D44697

BUSHING

- frame to swing tower, bottom

1шт.

3a

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- frame to stabilizer leg, rear bracket

2шт.

3b

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- frame to stabilizer leg, front bracket

2шт.

3c

D72170

BUSHING,44.48mm ID x 53.98mm OD x 31.75mm L

- swing cylinder pivot (If used)

4шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

5

D44733

PIN

- mounting frame to swing tower

1шт.

6

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

Spacer .035" Thk

1шт.

7

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

9

D44885

PIN

- mounting frame to swing tower

1шт.

10

195-2155

WASHER,2 1/16" x 3" x .109"

- flat (2")

1шт.

11

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

4шт.

13

D47259

AXLE PIN,44.32mm OD x 75.18mm L

PIN - swing cylinder to mounting frame

4шт.

14

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

15

92-8

LOCK WASHER,1/2"

4шт.

16

195-33

WASHER,1/2"

- flat () 1/2"

4шт.

17

D39926

PLATE

- pin retaining

2шт.

18

REF

INSTRUCTION

CYLINDER - hydraulic, L.H. swing (3-1/2" I.D. x 11" stroke) See pages 165 and 167 for proper cylinder

1шт.

19

REF

INSTRUCTION

CYLINDER - hydraulic, R.H. swing (3-1/2" I.D. x 11" stroke) See pages 165 and 167 for proper cylinder

1шт.

20

D28037

AXLE PIN

PIN - stabilizer cylinder to mounting frame

2шт.

21

D25279

SNAP RING,M35, Int

RING - retaining, pin

4шт.

22

REF

INSTRUCTION

CYLINDER - hydraulic, stabilizer (3" dia. x 16-3/8" stroke) see pages 159 and 161 for proper cylinder

2шт.

23

D37606

PIN,38.1mm OD x 103.5mm L

- stabilizer cylinder to stabilizer leg

2шт.

24

RESERVED

1шт.

25

D25279

SNAP RING,M35, Int

RING - retaining, pin

4шт.

26

D46404

PIN

- stabilizer leg to mounting frame

2шт.

27

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat (2")

4шт.

28

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

D37425

SUPPORT ASSY.

LEG - stabilizer, L.H. (includes item 29-30B) When stock is exhausted, order D56414 leg for service, Includes: Ref. 29 - 30B

1шт.

D56414

STABILIZER

LEG - stabilizer, L.H. (Includes items 29-30B), Includes: Ref. 29 - 30B

1шт.

D37426

SUPPORT ASSY.

LEG - stabilizer, R.H. (Includes items 29-30B) When stock is exhausted, order D56415 leg for service, Includes: Ref. 29 - 30B

1шт.

D56415

HOSE

LEG - stabilizer, R.H. (Includes items 29-30B), Includes: Ref. 29 - 30B

1шт.

29

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

-, Serial Range: leg-frame

2шт.

30

D38134

BUSHING

SPACER - bushing

1шт.

30a

D56413

CHAIN (AG)

CHAIN - transport

1шт.

30b

NSS

NOT SOLD SEPARAT

LEG - stabilizer

1шт.

31

D37603

PIN

- stabilizer, Serial Range: leg-foot

2шт.

32

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

4шт.

33

D38080

FOOT REST

FOOT - stabilizer, cleated

2шт.

34

D38079

FOOT REST

FOOT - stabilizer, street or cemetery pad (Optional) When stock is exhausted, order D61380 foot, D61368 pad, (6) 13-1228 bolts and (6) 25-1012 nuts for service, listed below

2шт.

35

D40469

SHOE (ASSY)

PAD - rubber (Optional) When stock is exhausted, order R31222 pad for service (Used with D38079 foot only)

4шт.

35

R31222

SHOE

PAD - rubber (Optional) Used with D38079 foot only

4шт.

36

D29712

SPECIAL NUT

- hex., special (7/16" - 20 NF) Used with D40469 or R31222 pad only

8шт.

37

D61380

STABILIZER

FOOT - stabilizer, street or cemetery pad (Optional)

2шт.

38

D61368

PAD

Rubber (Optional) Used with D61380 foot only

2шт.

39

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

(Used with D61368 pad only) Hex, 3/4"-10 x 1 3/4", G5

12шт.

40

25-1012

NUT,3/4"-10, G5

Used with D61368 pad only 3/4"-10, G5

12шт.
