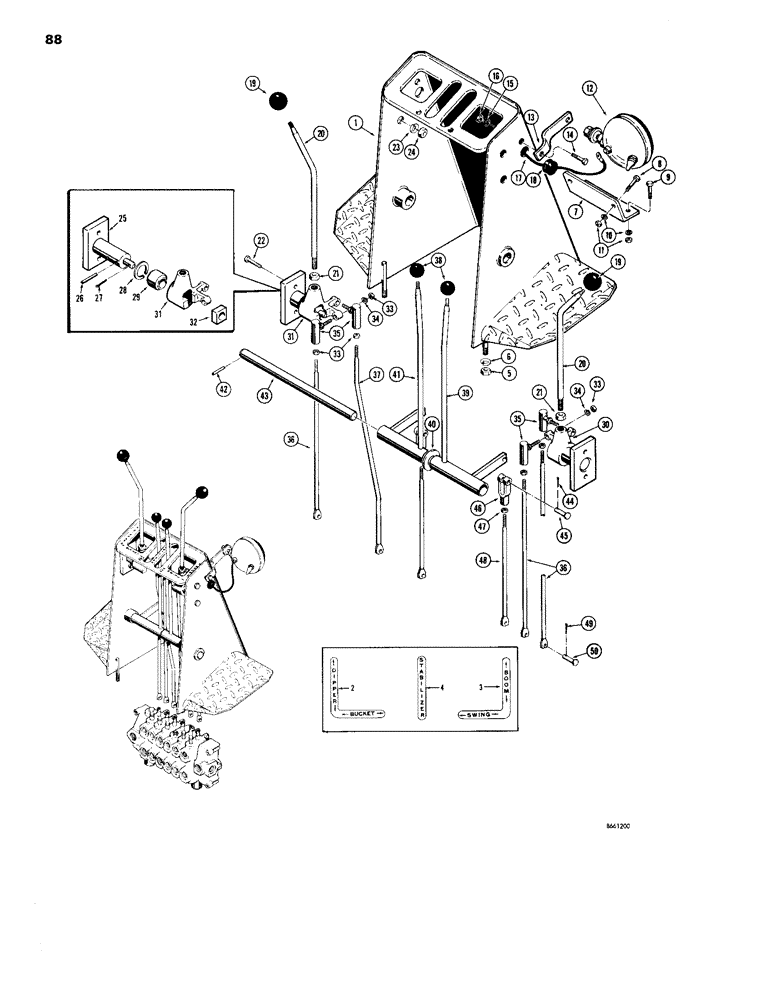

Запчасти Case 26S (088) - TWIN LEVER BACKHOE CONTROL, FOR USE WITH D39047 BACKHOE CONTROL VALVE, FOR 480 AND 480 B TRACTORS

1

D38288

CONSOLE - backhoe control

1шт.

2

321-917

DECAL

- dipper and bucket

1шт.

3

321-918

DECAL

- boom and swing

1шт.

4

321-919

DECAL

- stabilizer

1шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

6

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

7

D38292

COVER PLATE

BRACKET - console mounting

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

9

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

10

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

11

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

12

A20965

LAMP BASE

LIGHT - flood and tail (Parts list fig. 19)

1шт.

13

D30662

LINK

- light mounting

1шт.

14

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

15

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

16

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

17

D38477

ELECTRICAL WIRE

WIRE - light

1шт.

18

D37936

GROMMET

- wire

1шт.

19

31375

WASHER

- control lever, large

2шт.

20

D38304

HANDLE

LEVER - control, outer (R.H. - boom and swing, L.H. - dipper and bucket)

2шт.

21

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF)

2шт.

22

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

23

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

24

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

25

D38299

SUPPORT

STUD - lever pivot

2шт.

26

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

4шт.

27

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

28

D1038223

SPRING

Ring, Snap, 1.438", Int, #143

2шт.

29

D38297

SPHERICAL BEARING,22.23mm ID x 36.51mm OD x 19.43mm W

- pivotal ball type

2шт.

30

D38303

ADAPTER

LEVER - pivotal, R.H.

1шт.

31

D38302

ADAPTER

LEVER - pivotal, L.H.

1шт.

32

D38305

BLOCK

WEAR BLOCK - lever

2шт.

33

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., lock (3/8" - 24 NF)

8шт.

34

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

35

D38296

JOINT

- ball type

4шт.

36

D38295

ROD

- straight, connecting (Boom, bucket and swing control)

3шт.

37

D38294

ROD

- bent, connecting (Dipper control)

1шт.

38

70213

KNOB

- lever, small (Used with 3/8" - 24 NF lever)

2шт.

38

D49996

KNOB

- lever, small (Used with 1/2" - 20 NF lever)

2шт.

39

D38307

LEVER

- control, R.H. stabilizer (3/8" - 24 NF threaded end)

1шт.

39

D49990

HANDLE

LEVER - control, R.H. stabilizer (1/2" - 20 NF threaded end) Before bachoe Sn. 5220152

1шт.

39

D54340

HANDLE

LEVER - control, R.H. stabilizer (1/2" - 20 NF threaded end) Backhoe Sn. 5220152 and after

1шт.

40

195-2097

WASHER,15/16" x 1 3/4" x .083"

- flat, steel (15/16")

1шт.

41

D38306

LEVER

- control, L.H. stabilizer (3/8" - 24 NF threaded end)

1шт.

41

D49991

HANDLE

LEVER - control, L.H. stabilizer (1/2" - 20 NF threaded end) Before backhoe Sn. 5220152

1шт.

41

D54341

HANDLE

LEVER - control, L.H. stabilizer (1/2" - 20 NF threaded end) Backhoe Sn. 5220152 and after

1шт.

42

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

43

D30817

SHAFT

- lever pivot

1шт.

44

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

45

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Mounting 3/8" x 1.060"

2шт.

46

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - connecting rod

2шт.

47

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., lock (3/8" - 24 NF)

2шт.

48

D38291

ROD - straight, connecting (Stabilizer control)

2шт.

49

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

50

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Connecting rod mounting 5/16" x .940"

6шт.
