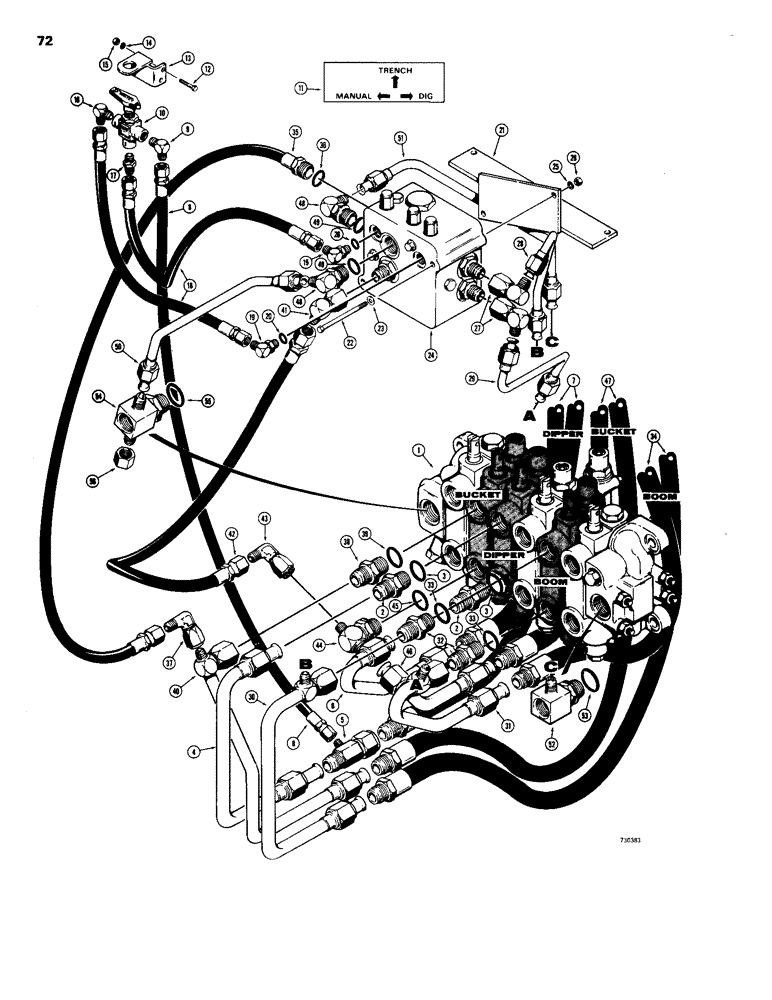

Запчасти Case 26S (072) - HYDRA-GUIDE CONTROLS, BACKHOE SERIAL NUMBER 5220152 AND AFTER

1

REF

INSTRUCTION

VALVE - backhoe control (Parts list Figure 146)

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - male, straight, Inlcudes: Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

D54254

TUBE - upper valve port to tee, dipper port

1шт.

5

218-5475

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 1/2"-20 Br

- tube to dipper cylinder rod end and selector valve

1шт.

6

D54226

TUBE

- lower valve port to dipper cylinder, closed end

1шт.

7

REF

INSTRUCTION

HOSE - valve to dipper cylinder (See fig. 35 for related hydraulics to connect to dipper cylinders)

2шт.

8

D52713

HOSE

- tee to selector valve (42" long)

1шт.

9

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- male, 90 degrees

1шт.

10

D55981

LOCK VALVE

VALVE - selector

1шт.

11

321-1795

X

DECAL - selector valve

1шт.

12

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

13

D52734

BRACKET - selector valve mounting

1шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

25-104

NUT,1/4"-20, G5

2шт.

16

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- male, 90 degrees

1шт.

17

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

CONNECTOR - straight, male

1шт.

18

D61212

HOSE ASSY.

HOSE - selector valve to upper ports of controller valve (19" long)

2шт.

19

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- adjustable, 90 degrees, Inlcudes: Ref. 20

2шт.

20

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

21

D54247

BRACKET - mounting, controller valve

1шт.

22

13-680

CAPSCREW,Hex, 3/8" - 16 x 5", Gr 5

BOLT, Hex, 3/8"-16 x 5", G5

2шт.

23

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

24

D54561

VALVE

- controller, Hydra-guide (Parts list Figure 70)

1шт.

25

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

26

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

27

218-5376

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- swivel, 90 degrees

2шт.

28

D54373

TUBE - upper port of controller valve to boom cylinder and backhoe control valve

1шт.

29

D54375

TUBE - lower port of controller valve to boom cylinder and backhoe control valve

1шт.

30

D54250

TUBE - backhoe control valve to boom cylinder, upper boom port

1шт.

31

D54252

TUBE - backhoe control valve to boom cylinder, lower boom port

1шт.

32

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - male, straight, Inlcudes: Ref. 33

2шт.

33

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

34

REF

INSTRUCTION

HOSE - valve to boom cylinder (See fig. 35 for related hydraulics to connect to boom cylinders)

2шт.

35

D52715

HOSE

- controller valve to bucket cylinder and backhoe control valve, upper port (19-1/4" long), Inlcudes: Ref. 36

1шт.

36

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

37

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- swivel, 90 degrees

1шт.

38

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - male, straight (Upper bucket section port), Inlcudes: Ref. 39

1шт.

39

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

40

D54256

TUBE - backhoe control valve to bucket cylinder, upper port.

1шт.

41

218-5376

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- swivel, 90 degree (At controller valve)

1шт.

42

D54382

HOSE ASSY.,9.53mm ID x 381mm L, SAE 100R2

HOSE - controller valve to bucket cylinder and backhoe control valve, lower port (15")

1шт.

43

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- swivel, 90 degrees (At backhoe control valve)

1шт.

44

218-5501

TEE,1 1/16"-12, 37 Degree x 3/4"-16 x 1 1/16"-12, O-Ring Br

- adjustable (Lower bucket section port), Inlcudes: Ref. 45

1шт.

45

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

46

D54222

TUBE - backhoe control valve to bucket cylinder, lower port.

1шт.

47

REF

INSTRUCTION

HOSE - valve to bucket cylinder (See Figure 34 for related hydraulics to connect to bucket cylinders)

2шт.

48

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, 90 degrees (At controller valve), Inlcudes: Ref. 49

2шт.

49

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

50

D54380

TUBE - controller valve to outlet section of backhoe control valve

1шт.

51

D61213

TUBE

- controller valve to inlet section of backhoe control valve

1шт.

52

D54377

TEE - adjustable, 90 degree (Special)

1шт.

53

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

54

D54377

TEE - adjustable, 90 degrees (special) outlet port of backhoe control valve (Used on Hydra-guide models without extendable dipper) Not shown

1шт.

54

D57736

CROSS - adjustable, 4-way (special) outlet port of backhoe control valve (Used on Hydra-guide models with Extendable dipper)

1шт.

55

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring (D54377 tee or D57736 cross)

1шт.

56

218-755

CAP,37 Degree, 3/4"-16

Hydraulic (Used with D57736 cross if required) 37º, 3/4"-16

1шт.
