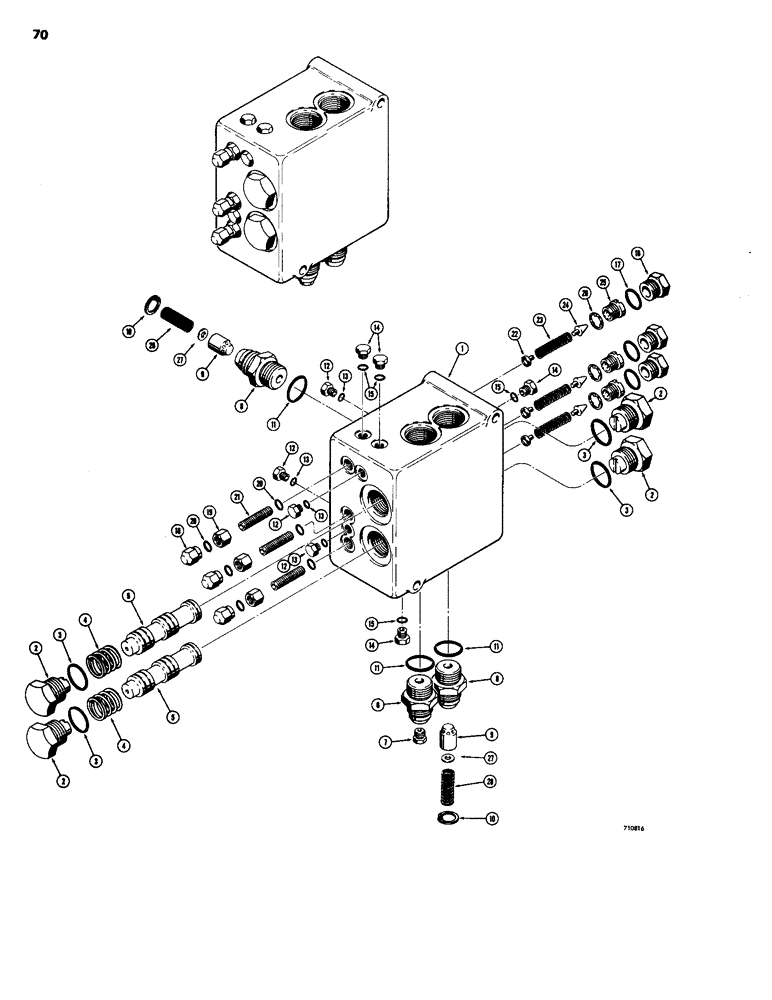

Запчасти Case 26S (070) - D54561 HYDRA-GUIDE CONTROL VALVE

D54561

VALVE

- control, Hydra-Guide, Inlcudes: Ref. 1 - 28

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

D53336

PLUG - spool

4шт.

3

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring, spool plug

4шт.

4

D53341

VALVE SPRING

SPRING - spool centering

2шт.

5

D53329

SPOOL - control valve

2шт.

6

D53335

COUPLING

CONNECTOR - straight, male (Restrictor type)

1шт.

7

D53337

PLUG

RESTRICTOR - connector

1шт.

8

D53331

CONNECTOR - straight, male (Check valve type)

2шт.

9

D53330

PISTON ASSY.

PISTON - check valve

2шт.

10

A35694

SNAP RING,0.688", Int, #68

Ring, Snap, , piston 0.688", Int, #68

2шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, connector

3шт.

12

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

- valve body, Inlcudes: Ref. 13

4шт.

13

218-5001

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk

1шт.

14

9672438

PLUG,7/16" - 20 ORB

Valve body, Incl. Ref. 15 Hex Hd, 7/16"-20 ORB

4шт.

15

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

16

86512512

PLUG,7/8" - 14 ORB

Body, Relief valve, Incl. Ref. 17 Hex Hd, 7/8"-14 ORB

3шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

18

D53338

NUT

- acorn, relief valve

3шт.

19

D53342

LOCK NUT

NUT - lock, special

3шт.

20

A8613

O-RING,0.426" ID x 0.566" OD

SEAL - "O" ring

6шт.

21

83-624

SET SCREW,Hex Soc, 3/8"-16 x 1 1/2"

SCREW - adjustment (3/8" - 16 NC x 1-1/2")

3шт.

22

D53334

GUIDE

- adjustment spring

3шт.

23

D53333

VALVE SPRING

SPRING - adjustment

3шт.

24

D53332

CONE

POPPET - relief valve

3шт.

25

D53339

PLUG

SEAT - valve poppet

3шт.

26

D53340

GASKET

- poppet seat

3шт.

27

D54567

WASHER

- special

2шт.

28

D54566

VALVE SPRING

SPING - check

2шт.
