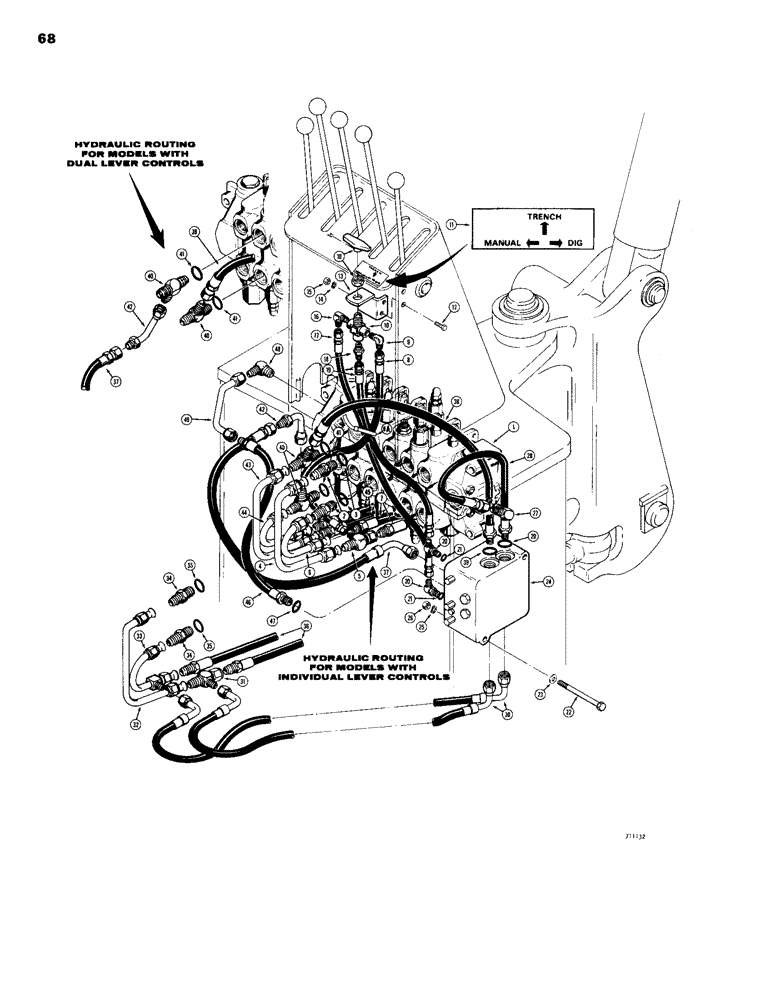

Запчасти Case 26S (068) - HYDRA-GUIDE CONTROLS, BEFORE BACKHOE SERIAL NUMBER 5220152

1

REF

INSTRUCTION

VALVE - backhoe control (Parts list Figure 134)

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Inlcudes: Ref. 3

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

D52722

TUBE - upper valve port to tee, crowd port

1шт.

5

218-5475

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 1/2"-20 Br

- tube to crowd cylinder rod end and selector valve

1шт.

6

D40715

TUBE

-lower valve port to crowd cylinder, closed end

1шт.

7

REF

INSTRUCTION

HOSE - valve to crowd cylinder (See page 31 for related components to connect to crowd cylinder)

2шт.

8

D52713

HOSE

- tee to selector valve (42" long)

1шт.

8a

L11541

CABLE TIE,203.2mm L, Nylon

TIE - hose

1шт.

9

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- male, 90 degrees

1шт.

10

D55981

LOCK VALVE

VALVE - selector

1шт.

11

321-1795

X

DECAL - selector valve

1шт.

12

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

13

D52734

BRACKET - valve mounting

1шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

25-104

NUT,1/4"-20, G5

2шт.

16

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- male, 90 degrees

1шт.

17

D52711

HOSE

- selector valve to controller valve, trenching port (32" long)

1шт.

18

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

CONNECTOR - straight, male

1шт.

19

D52712

HOSE ASSY.

HOSE - selector valve to controller valve, digging port (27" long)

1шт.

20

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- adjustable, 90 degrees

2шт.

21

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

22

13-680

CAPSCREW,Hex, 3/8" - 16 x 5", Gr 5

BOLT, Hex, 3/8"-16 x 5", G5

2шт.

23

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

24

D54561

VALVE

- controller, hydra-guide (Parts list Figure 70)

1шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

27

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees

1шт.

28

D52715

HOSE

- backhoe control valve to controller valve inlet (19-1/4" long), Inlcudes: Ref. 29

1шт.

29

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

30

D52716

HOSE ASSY.

HOSE - controller valve to boom cylinder (18" long)

2шт.

31

218-5219

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 3/4"-16 Br

- boom cylinder

1шт.

32

D52718

TUBE - tee to backhoe control valve, upper port

1шт.

33

D52720

TUBE

- controller valve to backhoe control valve, lower port

1шт.

34

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Inlcudes: Ref. 35

2шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

36

REF

INSTRUCTION

HOSE - control valve to boom cylinder (See page 31 for related components to connect to boom cylinder)

2шт.

37

D52717

HOSE

- hydraulic (See item 17 Figure 30)

1шт.

38

D52715

HOSE

- controller valve to upper bucket port of backhoe valve (19-1/4" long), Inlcudes: Ref. 39

1шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

40

218-5290

TEE - adjustable, valve port, Inlcudes: Ref. 41

2шт.

41

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

42

218-995

FITTING,90 Degree, 37 Degree Fl, 3/4"-16 Male x 3/4"-16 Fem

ELBOW - adjustable, 90 degrees

1шт.

43

D52724

TUBE

- upper valve port to bucket cylinder

1шт.

44

D52726

TUBE

- lower valve port to bucket cylinder

1шт.

45

REF

INSTRUCTION

HOSE - hydraulic (See item 10 on Figure 30)

1шт.

46

D52714

HOSE

- return, controller valve to backhoe valve outlet (13- 1/2" long), Inlcudes: Ref. 47

1шт.

47

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

48

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees

1шт.

49

D53171

TUBE - return, controller valve to backhoe valve outlet

1шт.
