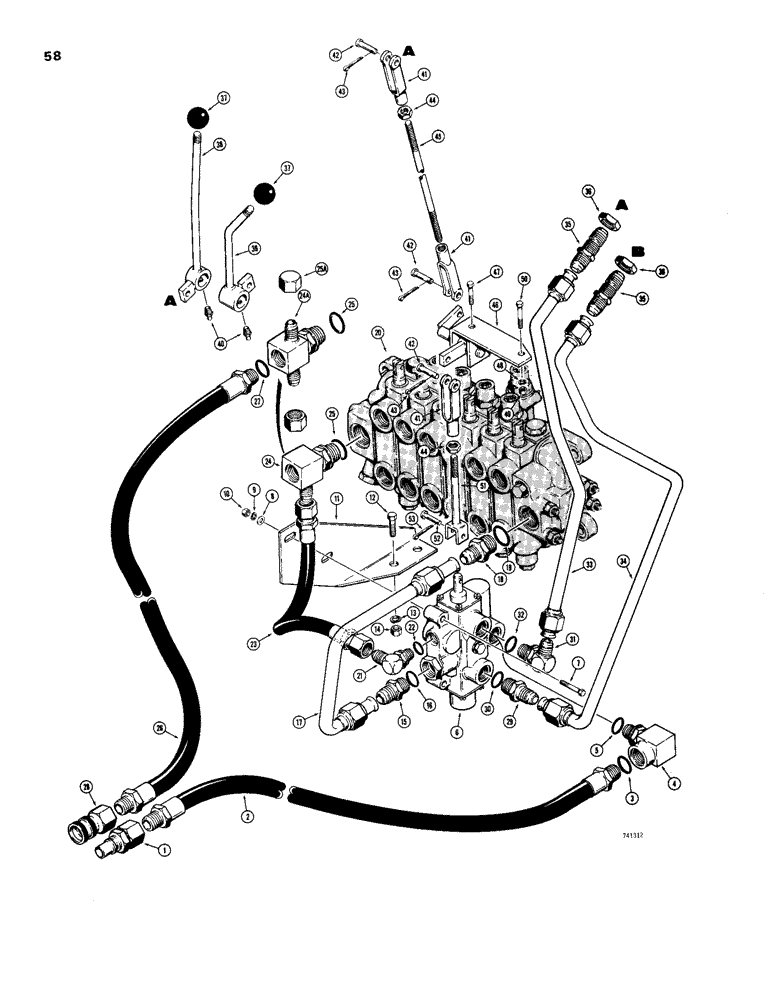

Запчасти Case 26S (058) - HYD. EXTENDABLE DIPPER, THREE FOOT EXTENSION HYDRAULICS, VALVES & LEVERS, BACKHOE S/N 5224733 & AFT.

1

D52694

QUICK MALE COUPLING

COUPLING - quick disconnect, male (Parts list Figure 62)

1шт.

2

D37540

HOSE

- loader control valve to backhoe (83" long), Inlcudes: Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

D57233

ELBOW - special, 90 degrees (Inlet port, extendable dipper valve), Inlcudes: Ref. 5

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

6

D56189

VALVE

ASSY. - control, extendable dipper (Parts list Figure 66)

1шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Valve to mounting bracket) Hex, 3/8"-16 x 2", G5

2шт.

8

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

9

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

10

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

11

D57110

BRACKET - valve mounting, extendable dipper

1шт.

12

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4" (Bracket to frame)

2шт.

13

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

14

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

15

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, male, Incl. Ref. 16

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

17

D57075

TUBE - beyond port of extendable dipper valve to inlet port of backhoe control valve

1шт.

18

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, HYD., , Straight, Male, Incl. Ref. 19 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

19

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

20

REF

INSTRUCTION

VALVE - backhoe control (See Figure 146 for proper valve)

1шт.

21

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees, Inlcudes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

23

36210

HOSE

- return at extendable dipper valve (21-1/2" long)

1шт.

24

D54377

TEE - adjustable, special (At backhoe control valve outlet port) Extendable dipper models without boom lock or hydra-guide

1шт.

24a

D57736

CROSS - adjustable, 4-way (Special) At backhoe control valve outlet port (Extendable dipper models with boom lock or hydra-guide), Inlcudes: Ref. 25

1шт.

25

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring (D54377 tee or D57736 cross)

1шт.

25a

218-755

CAP,37 Degree, 3/4"-16

Hydraulic (Used with D57736 cross if required) 37º, 3/4"-16

1шт.

26

D37541

HOSE

- backhoe return to loader control valve (43" long), Inlcudes: Ref. 27

1шт.

27

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

28

D52800

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female (Parts list Figure 62)

2шт.

29

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, Inlcudes: Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

31

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees, Incl. Ref. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

33

D56488

TUBE - extendable dipper valve to extension cylinder (Upper)

1шт.

34

D56490

TUBE - extendable dipper valve to extension cylinder (Lower)

1шт.

35

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

2шт.

36

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2шт.

37

D59912

KNOB

- extendahoe control lever

2шт.

38

D56483

HANDLE

- extendahoe control lever

1шт.

39

D56480

HANDLE - R.H. stabilizer

1шт.

40

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

41

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - 3/8"

3шт.

42

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - clevis

3шт.

43

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

3шт.

44

25-116

NUT,Hex, 3/8"-24, G5

- jam (3/8" - 24 NF)

2шт.

45

D56479

ROD

- control, dipper extension

1шт.

46

D57070

BRACKET AND SHAFT - extendahoe controls

1шт.

47

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

48

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

49

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

50

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

51

D56436

ROD - control (Lower)

1шт.

52

D50559

CLEVIS,9.53mm OD x 28.32mm L

PIN - clevis

1шт.

53

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.
