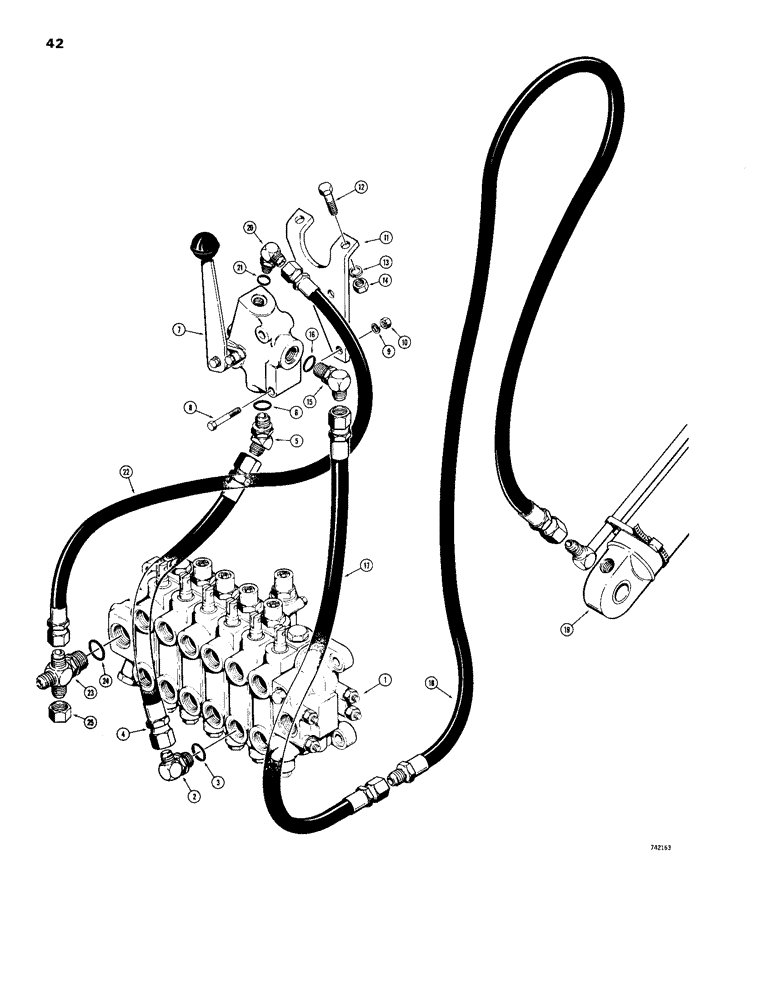

Запчасти Case 26S (042) - BOOM LOCKOUT HYDRAULICS, BACKHOE SERIAL NUMBER 5224733 AND AFTER

1

REF

INSTRUCTION

VALVE ASSY. - backhoe control (Parts list Figure 146)

1шт.

2

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

Adjustable, Incl. Ref. 2 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

L18776

HOSE

- backhoe control valve to lockout valve (Boom section "B" port to bottom port lockout valve) 22" long

1шт.

5

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degrees adjustable, Inlcudes: Ref. 6

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

7

D56102

VALVE

ASSY - lockout (Parts list Figure 44)

1шт.

8

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

11

D58824

PLATE - valve mounting

1шт.

12

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

13

92-8

LOCK WASHER,1/2"

2шт.

14

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

15

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 16

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

17

D45358

HOSE ASSY.

HOSE - from side port of lockout valve to rod end of boom cylinder (39" long)

1шт.

18

D38124

HOSE

- boom lock valve to boom cylinder rod end (At cylinder) 57" long

1шт.

19

REF

INSTRUCTION

HYDRAULICS - boom cylinder (Parts list fig. 35 and 37)

1шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degrees adjustable, Inlcudes: Ref. 21

1шт.

22

D58825

HOSE

- return, from top port of lockout valve to return line of backhoe valve (32" long)

1шт.

23

D57736

CROSS - 4-way, special, Inlcudes: Ref. 24

1шт.

24

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

25

218-755

CAP,37 Degree, 3/4"-16

Hydraulic 37º, 3/4"-16

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
