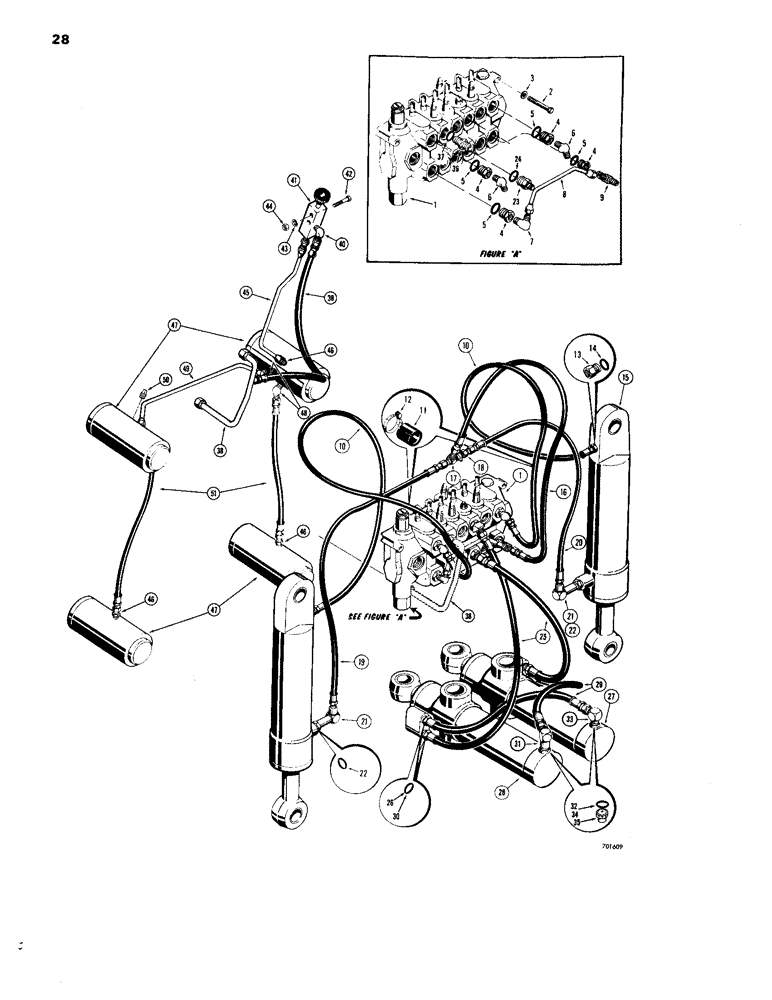

Запчасти Case 26S (028) - SWING, STABILIZER AND LOCKING, CYLINDER HYDRAULICS

1

D39047

VALVE

- backhoe control (Parts list Figure 134)

1шт.

2

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC X 3-3/4"

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

D36928

ADAPTER

- special, straight, stabilizer cylinder hydraulics, Inlcudes: Ref. 5

4шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, stabilizer cylinder hydraulics

1шт.

6

218-1093

ELBOW,45 Degree, 1/2-20" 37 Degree x 1/4"-18, NPTF

- male, 45 degrees, stabilizer cylinder hydraulics

2шт.

7

218-1052

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/4"-18, NPTF

- male, 90 degrees, stabilizer cylinder hydraulics

1шт.

8

D36915

TUBE

- crossover, stabilizer cylinder hydraulics

1шт.

9

218-624

FITTING,1/2"-20, 37 Degree x 3/8"-18, NPTF Run

TEE - male, stabilizer cylinder hydraulics

1шт.

10

D36910

HOSE

- valve to stabilizer cyl. closed end (57-1/2" long), stabilizer cylinder hdyraulics

2шт.

11

D36954

GROMMET - hose, rubber, stabilizer cylinder hydraulics

3шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, stabilizer cylinder hydraulics

3шт.

13

D36929

ADAPTER

- special, straight, stabilizer cylinder hydraulics, Inlcudes: Ref. 14

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Stabilizer cylinder hydraulics

1шт.

15

REF

INSTRUCTION

CYLINDER - hydraulic, stabilizer (Parts list pages 163 and 163B), stabilizer cylinder hydraulics

2шт.

16

D36912

HOSE

- valve to stabilizer cylinder tee (43-3/4" long), stabilizer cylinder hydraulics

1шт.

17

D36931

TEE

- male, special, stabilizer cylinder hydraulics

1шт.

18

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex., lock (1/2" - 20 NF), stabilizer cylinder hydraulics

1шт.

19

D36911

HOSE

- tee to L.H. stabilizer cylinder, rod end (35" long), stabilizer cylinder hydraulics

1шт.

20

D36913

HOSE

- tee to R.H. stabilizer cyl., rod end (24-1/2" long), stabilizer cylinder hydraulics

1шт.

21

D36927

ELBOW UNION

ELBOW - special, 90 degrees, stabilizer cylinder hydraulics, Inlcudes: Ref. 22

2шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Stabilizer cylinder hydraulics

1шт.

23

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, swing cylinder hydraulics, Inlcudes: Ref. 24

2шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, stabilizer cylinder hydraulics

1шт.

25

D37219

HOSE

- valve to swing cylinders (30" long), swing cylinder hydraulics, Inlcudes: Ref. 26

2шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, stabilizer cylinder hydraulics

1шт.

27

G32590

CYLINDER BLOCK

CYLINDER - hydraulic, R.H. swing (Parts list Figure 168), stabilizer cylinder hydraulics

1шт.

28

G32591

CYLINDER ASSY.

CYLINDER - hydraulic, L.H. swing (Parts list Figure 168), swing cylinder hydraulics

1шт.

29

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

- crossover, cylinder (23-1/2" long), swing cylinder hydraulics, Inlcudes: Ref. 30

2шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, swing cylinder hydraulics

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Stabilizer cylinder hydraulics

1шт.

31

D36934

FITTING

ELBOW - adjustable, 90 degrees (L.H. swing cylinder), swing cylinder hydraulics, Inlcudes: Ref. 32

1шт.

33

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees (R.H. swing cylinder), swing cylinder hydraulics

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Swing cylinder hydraulics

1шт.

35

D41462

FITTING

RESTRICTOR - flow control, swing cylinder hydraulics

2шт.

37

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, locking cylinder hydraulics

1шт.

36

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, locking cylinder hydraulics, Inlcudes: Ref. 37

1шт.

38

D51309

TUBE - valve to locking cylinder, locking cylinder hydraulics

1шт.

39

D36912

HOSE

- valve to locking valve (43-3/4" long), locking cylinder hydraulics

1шт.

40

218-1052

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/4"-18, NPTF

- male, 90 degrees, locking cylinder hydraulics

1шт.

41

D36662

PISTON

VALVE - locking, control (Parts list Figure 64), locking cylinder hydraulics

1шт.

42

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Locking cylinder hydraulics Hex, 1/4"-20 x 2", G5

2шт.

43

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Locking cylinder hydraulics 1/4"

2шт.

44

25-104

NUT,1/4"-20, G5

Locking cylinder hydraulics 1/4"-20, G5

2шт.

45

D44380

TUBE

- locking valve to upper R.H. locking cylinder, locking cylinde hydraulics

1шт.

46

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - male, straight, locking cylinder hydraulics

3шт.

47

NSS

NOT SOLD SEPARAT

LOCKING CYLINDER - side shift frame (Parts list Figure 8), locking cylinder hydraulics

4шт.

48

218-1093

ELBOW,45 Degree, 1/2-20" 37 Degree x 1/4"-18, NPTF

- male, 45 degrees, locking cylinder hydraulics

4шт.

49

D36925

TUBE

- R.H. locking cylinder to L.H. locking cylinder, locking cylinde hydraulics

1шт.

50

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT), locking cylinder hydraulics

1шт.

51

D36959

HOSE

- upper to lower locking cylinder (21-1/2" long), locking cylinder hydraulics

2шт.
