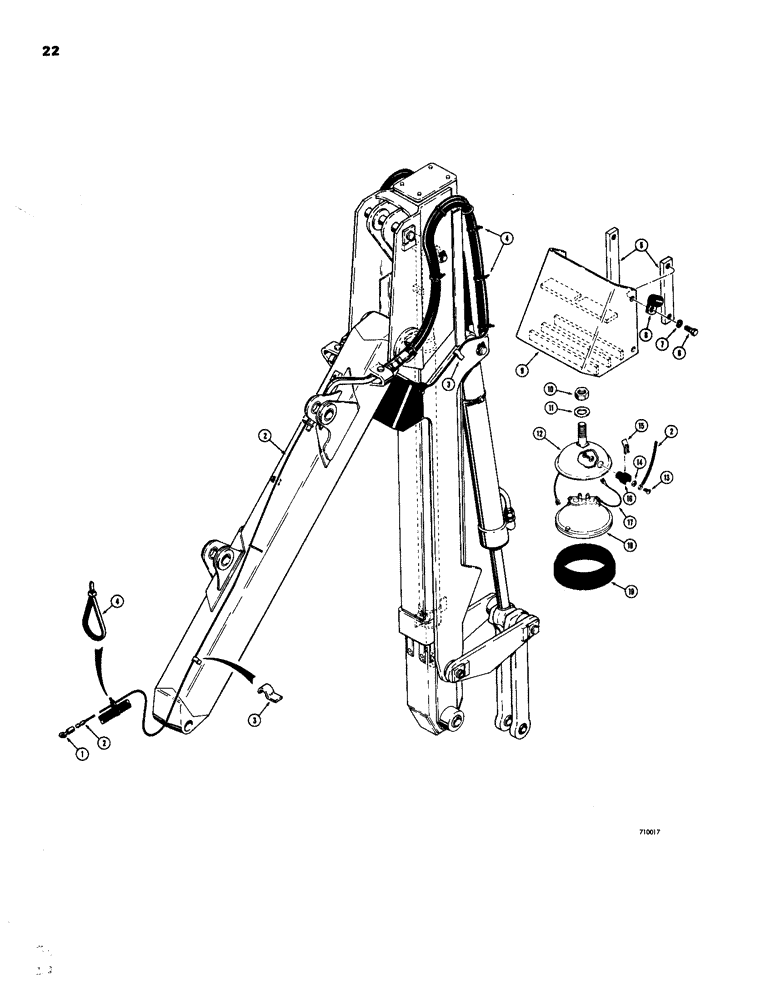

Запчасти Case 26S (022) - DIPPER LIGHT, USED WITH THREE FOOT EXTENDABLE DIPPER

1

223-50

TERMINAL CONNECTOR,14 - 16

TERMINAL - dipper light wire to rear light

1шт.

2

D53268

ELECTRICAL WIRE

WIRE - rear light to dipper light (252" long)

1шт.

3

D48071

CLAMP

- wire to boom and dipper

2шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

STRAP -, Serial Range: wire-hose

8шт.

5

D52595

BAR

- mounting, light housing (Welded to dipper extension)

2шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

49859

CLAMP

- wire to light housing

1шт.

9

D52591

HOUSING

- dipper light

1шт.

10

131-354

LOCK NUT,1/2"-13, GA

NUT - hex., lock (1/2" - 13 NC)

1шт.

11

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

D37811

LAMP

LIGHT ASSEMBLY - dipper, Includes: Ref. 12 - 19

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - light

1шт.

13

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- machine, round head (#8 - 32 NC x 1/4")

2шт.

14

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

2шт.

15

10927

SPRING

- light

1шт.

16

B50293

TERMINAL CONNECTOR

- light

1шт.

17

A25262

ELECTRICAL WIRE

WIRE - light

1шт.

18

D33182

LAMP

BULB - sealed beam

1шт.

19

D31441

RETAINER

- light

1шт.
