Запчасти Case 26D (8-14) - BUCKET CYL HYD. CIRCUIT, MODELSW/O EXTENDABLE DIPPER 14 BACKHOE MODELS ONLY

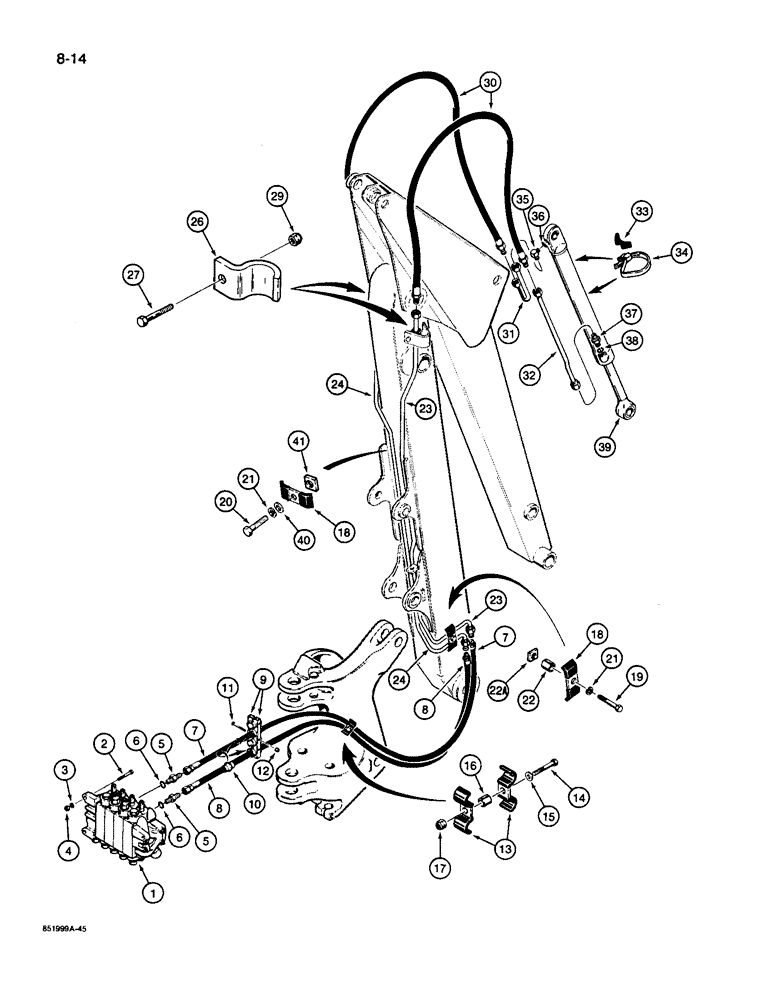

Схема запчастей Case 26D - (8-14) - BUCKET CYL HYD. CIRCUIT, MODELSW/O EXTENDABLE DIPPER 14 BACKHOE MODELS ONLY

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, see Figures 8-24 or 8-26 for correct assembly and components

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

5

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring, Includes: Ref. 6

2шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

D121618

HOSE ASSY.

HOSE - 51-3/16" (1300 mm) long, from upper valve port

1шт.

8

L53351

HOSE

- 45" (1143 mm) long, from lower valve port

1шт.

9

D99151

CLAMP

- hose, includes two halves

1шт.

10

D99822

BUSHING

GROMMET - hose

2шт.

11

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

3шт.

12

131-4

LOCK NUT,5/16"-18, GB

NUT - light hex, self-locking, 5/16 inch NC

3шт.

13

D42833

CLAMP

- hose, at swing tower

2шт.

14

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

16

R46103

SPACER

- clamp

1шт.

17

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

1шт.

18

A13622

PLATE, LOCKING

CLAMP - tube, at boom

2шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

20

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

D76209

SPACER

- tube clamp, side of boom

1шт.

22a

25-226

SQUARE NUT,Sq, 3/8"-16

- square, 3/8 inch NC

1шт.

23

D133451

TUBE ASSY.

TUBE - right-hand

1шт.

24

D128840

TUBE ASSY.

TUBE - left-hand

1шт.

26

L104914

CLAMP

- tube

2шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

29

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

2шт.

30

D132937

HOSE ASSY.

HOSE - 38-7/16" (975 mm) long, to bucket cylinder

2шт.

31

D121620

TUBE

- to closed end of bucket cylinder

1шт.

32

D121622

TUBE

- to rod end of bucket cylinder

1шт.

33

D38648

BLOCK

INSULATOR - rubber

2шт.

34

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - adj., 3-9/16 - 4-1/2 inch dia

2шт.

35

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj. O-ring boss, Incl. Ref. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

37

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 38

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

39

G103503

CYLINDER BLOCK

CYLINDER ASSEMBLY - 3-1/4 inch ID x 26-19/64 inch stroke, bucket, parts list Figure 8-66

1шт.

40

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Used on models with cages on boom for square nut 3/8", SAE

1шт.

41

25-226

SQUARE NUT,Sq, 3/8"-16

- square, 3/8 inch NC, used on models with cages on boom for square nut

1шт.
