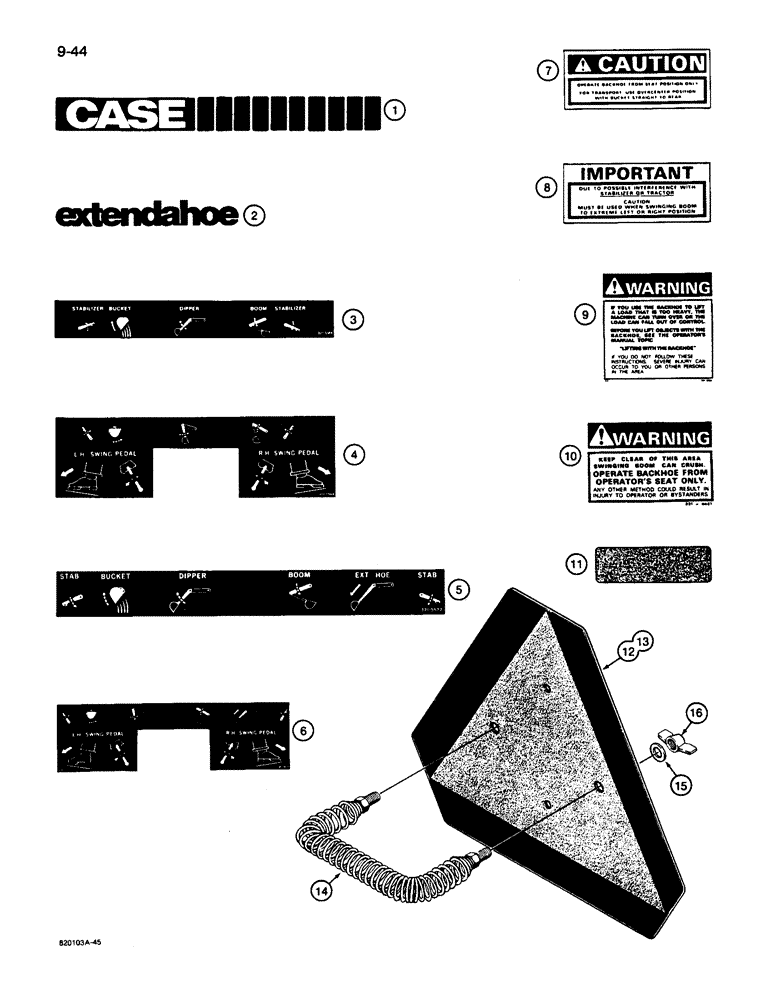

Запчасти Case 26D (9-44) - DECALS, SLOW MOVING VEHICLE EMBLEM

1

321-5066

DECAL

- CASE, with ten right-hand treads, black, if used

1шт.

1

R48490

DECAL

- CASE, with ten right-hand treads, brown, if used

1шт.

1

D143500

DECAL

- CASE, with eight right-hand treads, brown, if used

1шт.

2

321-3139

DECAL

- extendahoe, dipper, black, if used

2шт.

2

D123945

DECAL

- extendahoe, dipper, brown, if used

2шт.

3

321-5569

DECAL

- backhoe control pattern, upper, black, if used

1шт.

3

D123977

DECAL

- backhoe control pattern, upper, brown, if used

1шт.

4

321-5568

DECAL

- backhoe control pattern, lower, black, if used

1шт.

4

D123976

DECAL

- backhoe control pattern, lower, brown, if used

1шт.

5

321-5572

DECAL

- extendahoe control pattern, upper, black, if used

1шт.

5

D123941

DECAL

- extendahoe control pattern, upper, brown, if used

1шт.

6

321-5573

DECAL

- extendahoe control pattern, lower, black, if used

1шт.

6

D123940

DECAL

- extendahoe control pattern, lower, brown, if used

1шт.

7

321-3056

DECAL

- Caution, backhoe transport

1шт.

8

321-3058

DECAL

- Important, due to possible interference, swinging boom

1шт.

9

321-6046

WARNING DECAL

DECAL, WARNING, Backhoe lifting load

1шт.

10

321-4481

DECAL

- Warning, keep clear of this area swinging boom can crush

2шт.

11

D87870

DECAL

- reflector, red

2шт.

12

D123347

WARNING SIGN

EMBLEM - plate and decal, Includes: Ref. 13, slow moving vehicle emblem

1шт.

13

321-4311

DECAL

- emblem, slow moving vehicle

1шт.

14

D52564

SPRING

- emblem retaining, slow moving vehicle

1шт.

15

195-518

WASHER,1/4", SAE

- flat, 1/4", plated, SMV emblem

2шт.

16

129-409

WING NUT,1/4"-20

NUT, WING, , SMV Emblem 1/4"-20

2шт.

17

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Used when storing emblem only, not shown, slow moving vehicle Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Used when storing emblem only, not shown, slow moving vehicle

2шт.
