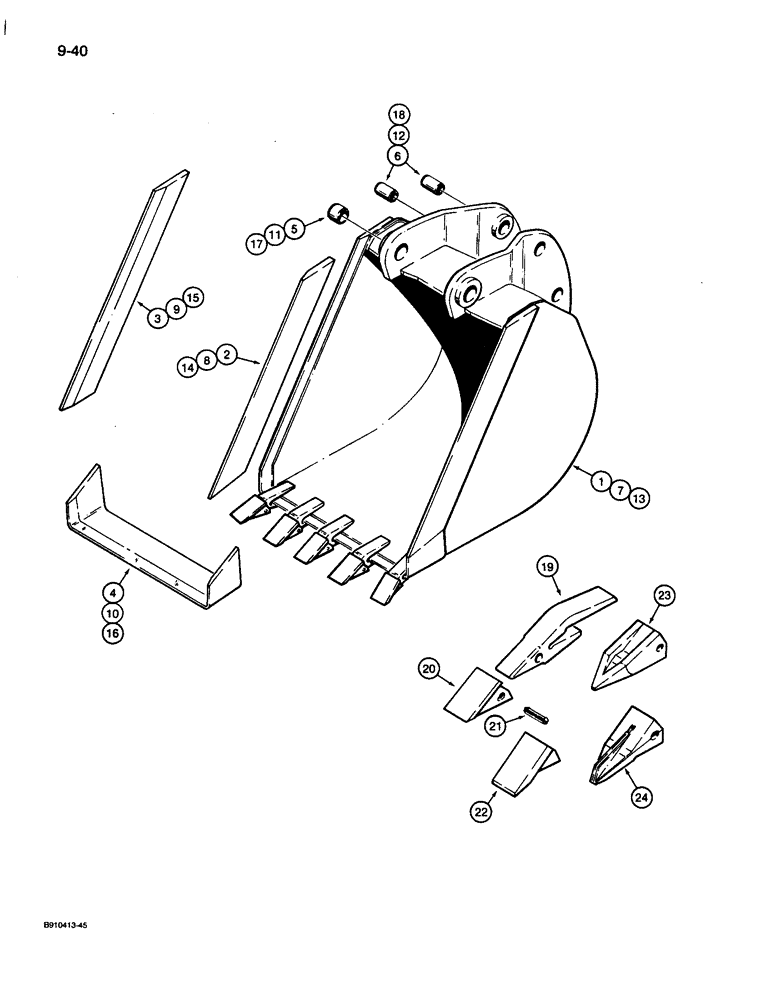

Запчасти Case 26D (9-40) - BACKHOE BUCKETS, TRENCHING BUCKETS - HEAVY DUTY, TOOTH

1

D57544

BUCKET

ASSEMBLY - 24" (610 mm), machinery item, order from the Machinery Price List, Includes: Ref. 2 - 6

1шт.

2

D57550

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side

1шт.

3

D57551

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side

1шт.

4

D57591

EDGE, CUTTING

EDGE - cutting, bucket, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, at bucket link

4шт.

7

D57543

BUCKET

ASSEMBLY - 30" (762 mm) machinery item, order from the Machinery Price List, Includes: Ref. 8 - 12

1шт.

8

D57550

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side

1шт.

9

D57551

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side

1шт.

10

D57559

EDGE, CUTTING

EDGE - cutting, bucket, center

1шт.

11

D57495

TUBE

BUSHING - bucket, at dipper

2шт.

12

D57933

BUSHING - bucket, at bucket link

4шт.

13

D57545

BUCKET

ASSEMBLY - 36" (914 mm) machinery item, order from the Machinery Price List, Includes: Ref. 14 - 18

1шт.

14

D57550

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side

1шт.

15

D57551

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side

1шт.

16

D57595

EDGE, CUTTING

EDGE - cutting, bucket, center

1шт.

17

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket at dipper

2шт.

18

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket at bucket link

4шт.

D48035

TOOTH

ASSEMBLY - heavy duty bucket only, Includes: Ref. 19 - 21

1шт.

19

D48212

SHANK

- tooth, assembly

1шт.

20

D39093

TOOTH

POINT - tooth, assembly

1шт.

21

D39094

BUCKET TOOTH KEY

PIN - flex, point, tooth assembly

1шт.

22

D44193

TOOTH

POINT - tooth, heavy duty, flat end, service option, assembly

1шт.

23

D80119

TOOTH

POINT - tooth, heavy duty, pointed end, service option, assembly

1шт.

24

D79100

TOOTH

POINT - tooth, heavy duty, star point, service option, assembly

1шт.
