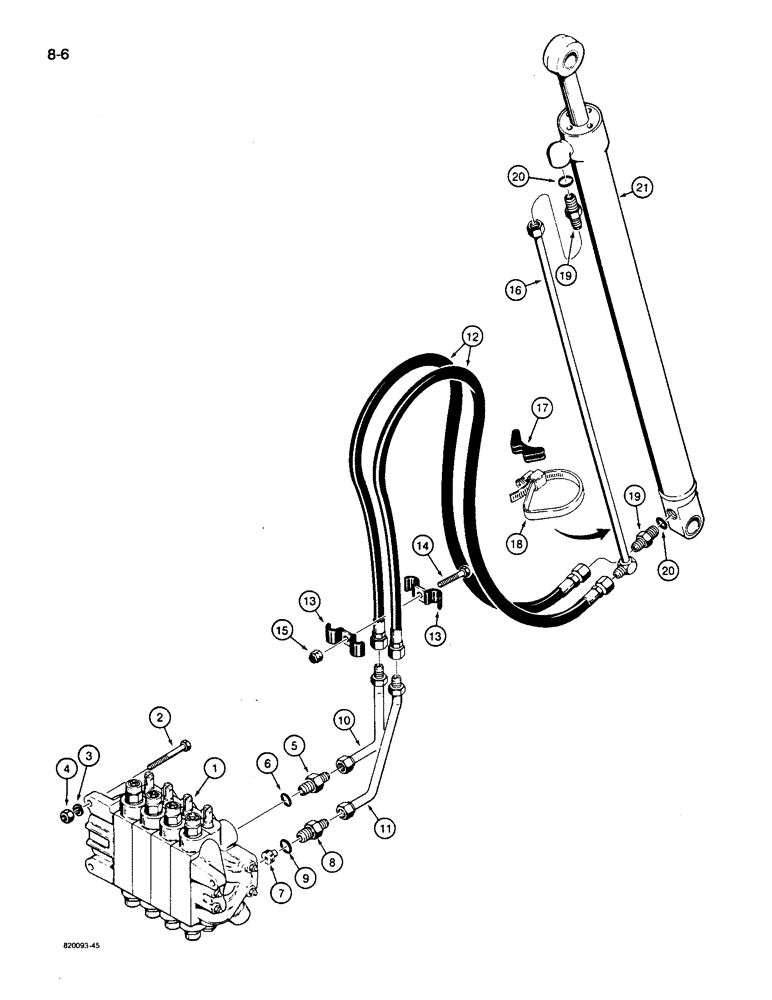

Запчасти Case 26D (8-06) - BOOM CYLINDER HYDRAULIC CIRCUIT, 12 FOOT AND 14 FOOT BACKHOE MODELS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, see Figure 8-24 or 8-26 for correct assembly and components

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

5

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring, upper port, Includes: Ref. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

D87325

RESTRICTOR

- lower port

1шт.

8

D99170

CONNECTOR, ELEC

ADAPTER - straight, male, lower port, Includes: Ref. 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

D99120

HYD TUBE,15.88 mm OD x 157, 106 mm L

TUBE - top port, models with foot swing

1шт.

11

D99122

HYD TUBE,15.88 mm OD x 190, 157 mm L

TUBE - bottom port, models with foot swing

1шт.

12

R22412

HOSE

- 50" (1270 mm) long, to boom cylinder

2шт.

13

D42833

CLAMP

- hose

2шт.

14

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

1шт.

15

131-8

LOCK NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

16

D99141

HYD TUBE,15.88 mm OD x 1014 mm L

TUBE - to rod end of boom cylinder

1шт.

17

D38648

BLOCK

INSULATOR - rubber

1шт.

18

214-270

HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm

CLAMP - adj, 4-5/16 - 5-1/4 inch dia

1шт.

19

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 20

2шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

21

G102835

CYLINDER

ASSEMBLY - 4 inch ID x 38-3/32 inch stroke, boom, parts list Figure 8-58

1шт.
