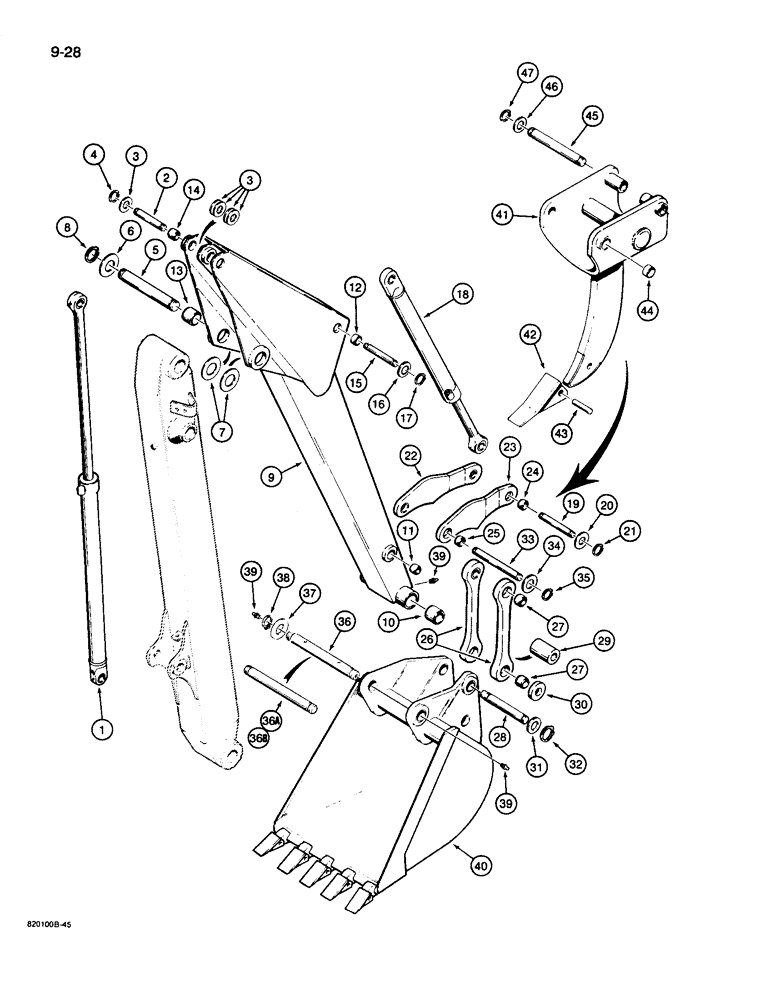

Запчасти Case 26D (9-28) - DIPPER AND BUCKET, 12 FOOT BACKHOE MODELS

1

G104844

CYLINDER

ASSEMBLY - dipper, parts list Figure 8-60

1шт.

2

D44881

PIN,38.1mm OD x 136.4mm L

- dipper, Serial Range: cylinder-dipper

1шт.

3

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- spacer

6шт.

4

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

5

D37609

PIN

-, Serial Range: boom-dipper

1шт.

6

L47721

WASHER

SHIM - spacer

1шт.

7

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16 x 3 x 1/8 inch

1шт.

8

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

9

D84175

BOOM

DIPPER ASSEMBLY - backhoe, Includes: Ref. 10 - 14

1шт.

10

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- bucket at dipper

2шт.

11

D32890

BUSHING

- bucket linkage at dipper

2шт.

12

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- dipper at bucket cylinder

2шт.

13

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- dipper at boom

2шт.

14

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- dipper at dipper cylinder

2шт.

15

D44882

PIN,38.1mm OD x 203.2mm L

- dipper to bucket cylinder

1шт.

16

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- spacer

1шт.

17

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

18

G103503

CYLINDER BLOCK

CYLINDER ASSEMBLY - bucket, parts list Figure 8-66

1шт.

19

D26002

PIN,38.1mm OD x 187.32mm L

- bucket cylinder to bucket linkage

1шт.

20

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- spacer

1шт.

21

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

22

D84167

LINK

- guide, left-hand

1шт.

23

D84166

LINK

- guide, right-hand, Includes: Ref. 24 and 25

1шт.

24

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- link, one each to D84167 and D84166

1шт.

25

D32789

BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L

- link, one each to D84167 and D84166

1шт.

26

D99731

LINK

- bucket, Includes: Ref. 27

2шт.

27

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket link, two each

2шт.

28

D37614

PIN,38mm Od x 246mm L

-, Serial Range: link-bucket

1шт.

29

D44887

SPACER

- link

1шт.

30

74163

SPACER

- link

2шт.

31

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- spacer

1шт.

32

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

33

D44883

PIN,31.75mm OD x 238.25mm L

-, Serial Range: link-dipper

1шт.

34

195-2125

WASHER,1 5/16" x 2" x .109"

- flat, 1-5/16 x 2 x 1/8 inch

1шт.

35

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

2шт.

36

D64799

PIN,44.45mm OD x 370.84mm L

- dipper to bucket, uses Ref. 39 grease fitting , for service order Ref. 36A or 36B pin and Ref. 39 grease fitting

1шт.

36a

D123081

PIN,44.45mm OD x 370.84mm L

- dipper to bucket, used on all buckets except 12" (305 mm) bucket, requires Ref. 39 grease fitting in dipper, if used

1шт.

36b

D40244

PIN,44.45mm OD x 327.02mm L

- dipper to bucket, used on 12" (305 mm) buckets only, requires Ref. 39 grease fitting in dipper, if used

1шт.

37

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-13/16 x 2-1/2 x 1/8 inch

1шт.

38

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

39

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT, two used with Ref. 36 pin, one used with Ref. 36A or 36B pin

1-2шт.

40

REF

INSTRUCTION

BUCKET ASSEMBLY - backhoe, see Figure 9-40 or 9-42 for bucket options

1шт.

D54136

SUPPORT ASSY.

POINT ASSEMBLY - frost, backhoe, if used, Includes: Ref. 41 - 44

1шт.

41

NSS

NOT SOLD SEPARAT

BODY - frost point

1шт.

42

D83306

POINT

- tooth

1шт.

43

D43417

PIN

- tooth point

1шт.

44

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- frost point pivot

2шт.

45

D54218

PIN,38.1mm OD x 345.95mm L

- link to frost point, 13-5/8" long, if used

1шт.

46

195-63

WASHER,1 5/8" x 3 1/4" x .180"

- flat, 1-9/16" ID, used with frost point

2шт.

47

D25279

SNAP RING,M35, Int

RING - snap, pin retaining, used with frost point

2шт.
