Запчасти Case 26D (9-26) - BOOM LATCH, 12 FOOT AND 14 FOOT BACKHOE MODELS

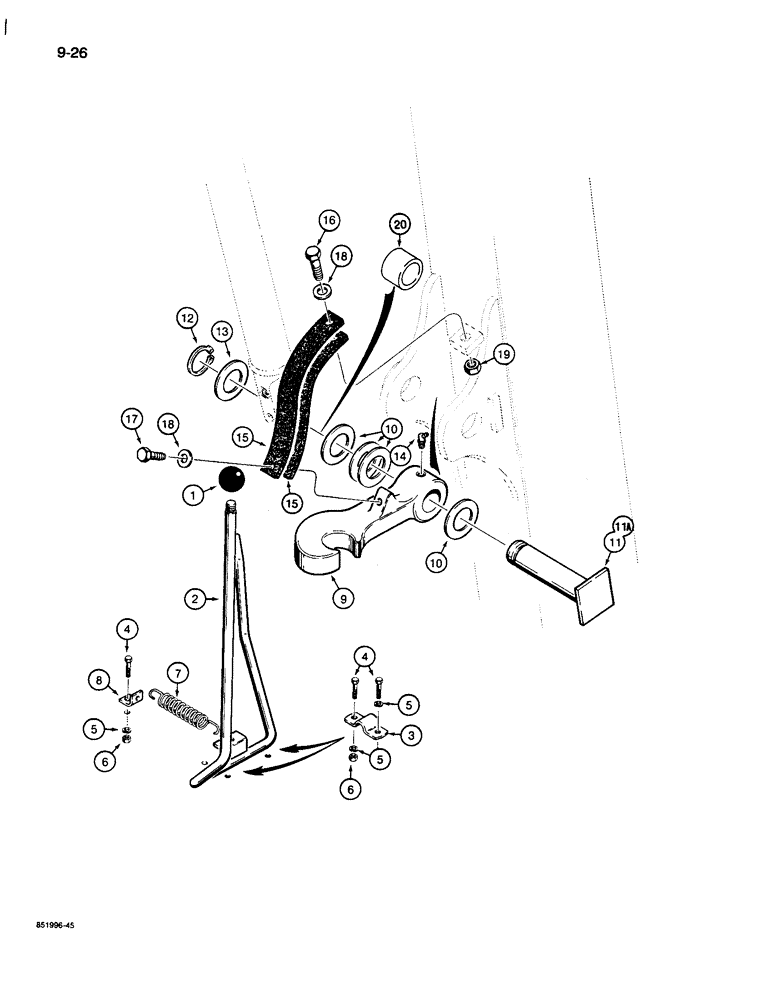

Схема запчастей Case 26D - (9-26) - BOOM LATCH, 12 FOOT AND 14 FOOT BACKHOE MODELS

Артикул

Название

Примечание

Количество

1

D59912

KNOB

- lever, boom latch release

1шт.

2

D99728

HANDLE

LEVER - boom latch release

1шт.

3

D143593

CLAMP

- control lever

2шт.

4

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

6

425-105

NUT,5/16"-18, G5

- hex, 5/16"-18 NC, plated

3шт.

7

F17468

SPRING

- control lever

1шт.

8

D143592

PLATE, LOCKING

BRACKET - spring retaining

1шт.

9

D99787

LATCH

- retaining, backhoe boom

1шт.

10

D31312

WASHER

- spacer, 2-3/4" (70 mm) O.D. x 1/16" (1.6 mm) thick

1шт.

11

D99037

PIN

- latch retaining, used on models with 12 foot backhoe only

1шт.

11a

D133077

PIN ASSY.

PIN - latch retaining, used on models with 14 foot backhoe only

1шт.

12

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

1шт.

13

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- 2-1/2" (64 mm) OD x 1/8" (3.2 mm) thick

1шт.

14

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, special short, 1/8" NPT

1шт.

15

D99039

STRAP

- boom latch

2шт.

16

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

19

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

1шт.

20

D128926

SPACER

- boom lock, used only on models with 14 foot backhoe

1шт.

Выбрано товаров: 21
