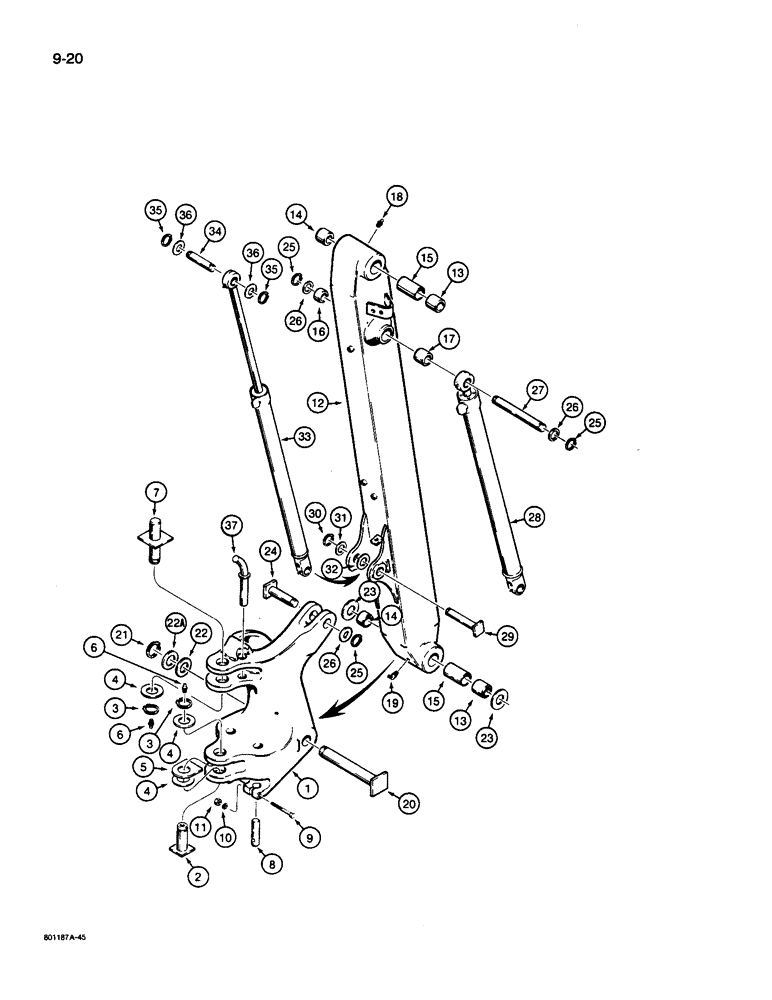

Запчасти Case 26D (9-20) - SWING TOWER AND BOOM, 12 FOOT BACKHOE MODELS

1

D143749

CASING

TOWER - swing, backhoe

1шт.

2

D83625

PIN

- swing tower to mounting frame, lower

1шт.

3

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

4

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

Spacer .035" Thk

1шт.

5

D86084

WASHER

- wear

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

7

D99132

PIN

- swing tower to mounting frame, upper

1шт.

8

D47866

PIN,38.1mm OD x 139.7mm L

- swing cylinder to swing tower

2шт.

9

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex head, 5/8" - 11 NC x 4", plated

2шт.

10

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

129-107

NUT,5/8"-11, G5

2шт.

12

D99200

BOOM

ASSEMBLY - backhoe, Includes: Ref. 13 - 17

1шт.

13

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- boom end, 2" (51 mm) long

2шт.

14

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- boom end, 1-1/2" (38 mm) long

2шт.

15

D99195

SPACER

- boom end

2шт.

16

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

- boom cylinder pivot, 3/4" (19 mm) long

1шт.

17

D55626

BUSHING,44.68mm ID x 57.15mm OD x 41.91mm L

- boom cylinder pivot, 1-5/8" (41 mm) long

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, special short, 1/8" NPT

1шт.

20

D99086

PIN

- boom to swing tower

1шт.

21

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

1шт.

22

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

Spacer (.79 mm) .035" Thk

1шт.

22a

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16 x 3 x 1/8 inch

1шт.

23

L47721

WASHER

- spacer, 1/8" (3.2 mm) thick

1шт.

24

D120744

PIN

- boom cylinder to swing tower

1шт.

25

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

3шт.

26

51200255

SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk

- shim

3шт.

27

D81488

PIN

- boom, Serial Range: cylinder-boom

1шт.

28

G102835

CYLINDER

ASSEMBLY - boom, parts list Figure 8-58

1шт.

29

D99037

PIN

- dipper, Serial Range: cylinder-boom

1шт.

30

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

1шт.

31

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- spacer

1шт.

32

D31312

WASHER

- hardened, spacer

1шт.

33

G104844

CYLINDER

ASSEMBLY - dipper, parts list Figure 8-60

1шт.

34

D44881

PIN,38.1mm OD x 136.4mm L

- dipper, Serial Range: cylinder-dipper

1шт.

35

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

36

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- spacer

6шт.

37

D99084

PIN

- swing lock

1шт.
