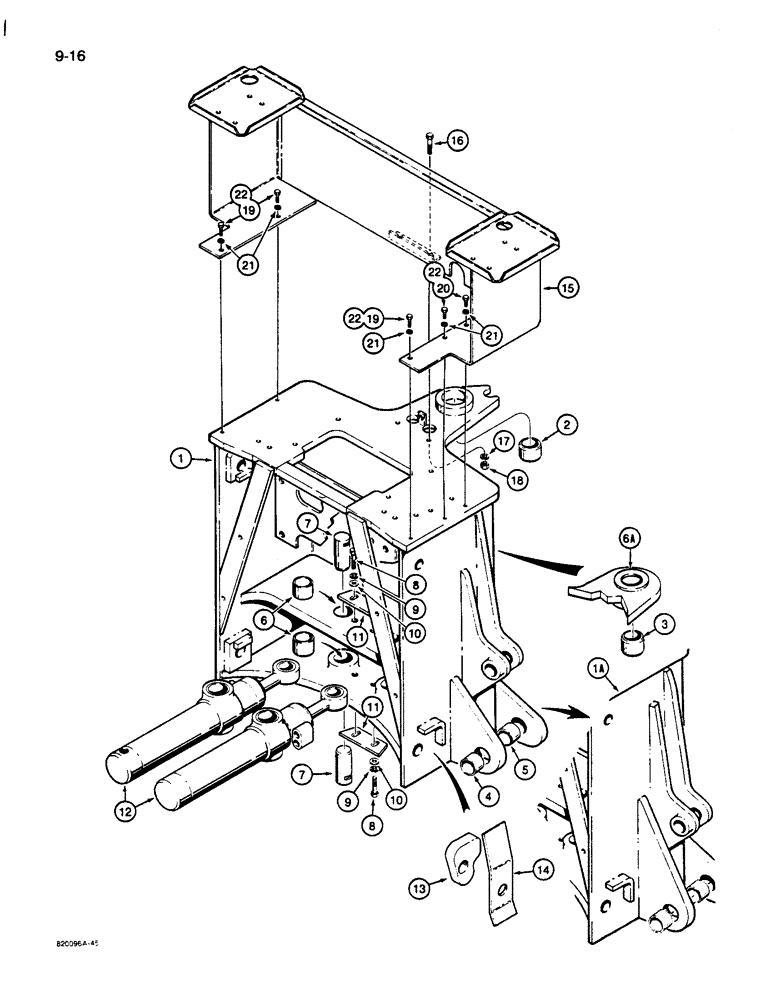

Запчасти Case 26D (9-16) - MOUNTING FRAME

1

D87467

FRAME

- backhoe mounting, used before backhoe SN 5444760, used with D71633 and D71634 stabilizer legs, see Figure 9-18, Includes: Ref. 2 - 6A

1шт.

1a

D121756

FRAME

- backhoe mounting, used on backhoe SN 5444760 and after, used with D94498 stabilizer legs, see Figure 9-18, Includes: Ref. 2 - 6A

1шт.

2

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- frame to swing tower, top

1шт.

3

D44697

BUSHING

- frame to swing tower, bottom

1шт.

4

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- frame to stabilizer leg, bracket without boss

2шт.

5

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- frame to stabilizer leg, bracket with boss

2шт.

6

D72170

BUSHING,44.48mm ID x 53.98mm OD x 31.75mm L

- frame to swing cylinder pins

4шт.

6a

D86085

WASHER

- wear, frame to swing tower, Serial Range: welds-frame

1шт.

7

D99814

PIN,44.32mm OD x 75.2mm L

- swing cylinder to mounting frame

4шт.

8

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

10

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

4шт.

11

D39926

PLATE

- pin retaining

2шт.

12

REF

INSTRUCTION

CYLINDER ASSEMBLY - swing, see Figure 8-56 for correct assembly and components

2шт.

13

R46532

GUIDE

- backhoe

2шт.

14

R46873

SUPPORT

- mounting bolt

2шт.

15

R46533

PANEL

- rear shield, for decals see Figure 9-44 Ref. 1 and 10, for service order R50765 kit, see below

1шт.

16

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

19

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Used on 350B and 450B models Hex, 5/16"-18 x 1 1/2", G5

3шт.

20

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Used on 350B and 450B models Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

5шт.

22

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Used on 450C/455C and 550 models Hex, 5/16"-18 x 1", G5, Full Thd

5шт.

R50765

PANEL

KIT - panel, service replacement, includes R46533 panel and R48490 decal, see Figure 9-44, Ref. 2, for decal

1шт.
