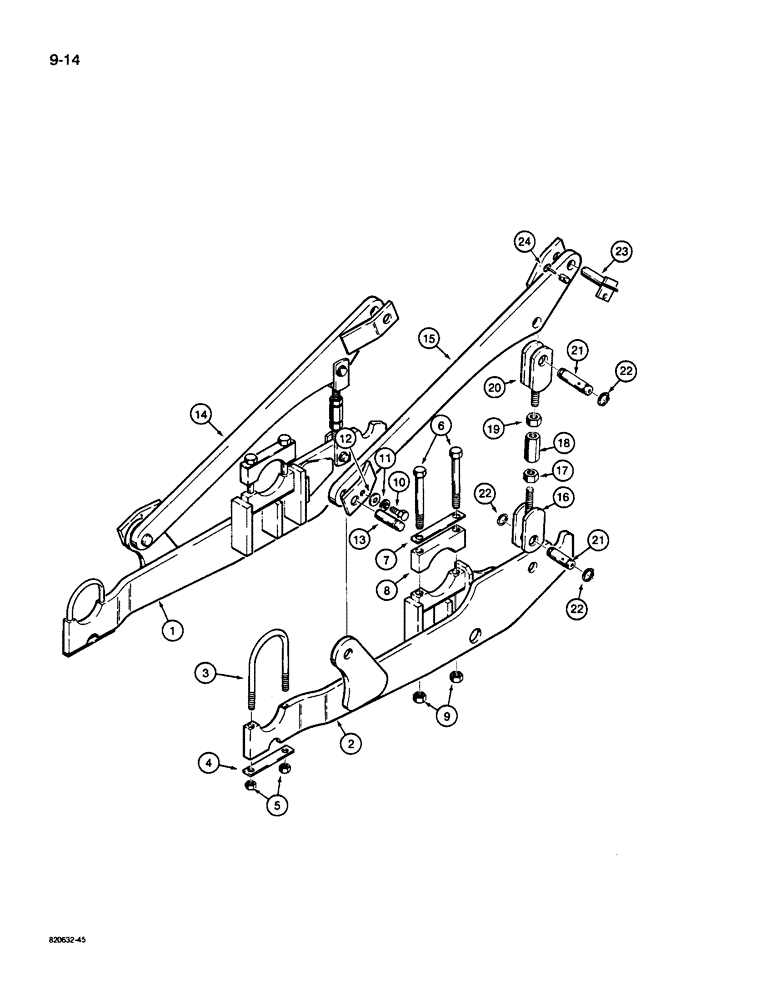

Запчасти Case 26D (9-14) - BACKHOE MOUNTING PARTS, 350B CRAWLER ONLY

1

D37455

ARM

- support, lower, right-hand side of crawler

1шт.

2

D37454

ARM

- support, lower, left-hand side of crawler

1шт.

3

D34086

U-BOLT

- support arm mounting

2шт.

4

D34814

PLATE

- lock

2шт.

5

232-41110

NUT,5/8"-11, GC

NUT - hex, self-locking, 5/8" - 11 NC

4шт.

6

113-829

BOLT,Hex, 7/8" - 9 x 8", Gr 5

- hex head, 7/8" - 9 NC x 8", plated

4шт.

7

D26238

PLATE

- lock

2шт.

8

D31122

BLOCK

CLAMP - upper half

2шт.

9

131-1140

LOCK NUT,7/8" - 9, Gr A

NUT - hex, self-locking, 7/8" - 9 NC, plated

4шт.

10

113-602

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

11

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- pin retaining

2шт.

13

D33697

PIN

- upper to lower support arm

2шт.

14

R46566

LINK

ARM - upper, right-hand side of crawler

1шт.

15

R46567

LINK

ARM - upper, left-hand side of crawler

1шт.

16

R36824

ROD

- tension, right-hand threads, lower

2шт.

17

129-130

NUT,1"-14, G5

- hex, 1" - 14 NF, right-hand threads, lower

2шт.

18

R36828

GUARD

ADJUSTER - tension rods

2шт.

19

129-330

NUT,1"-14, G5, LH

Upper 1"-14, G5, LH

2шт.

20

R36826

ROD

- tension, left-hand, upper

2шт.

21

D33816

PIN

- tension rods

4шт.

22

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

8шт.

23

R46678

PIN

- mounting frame

2шт.

24

A30338

PIN

- self-locking

2шт.
