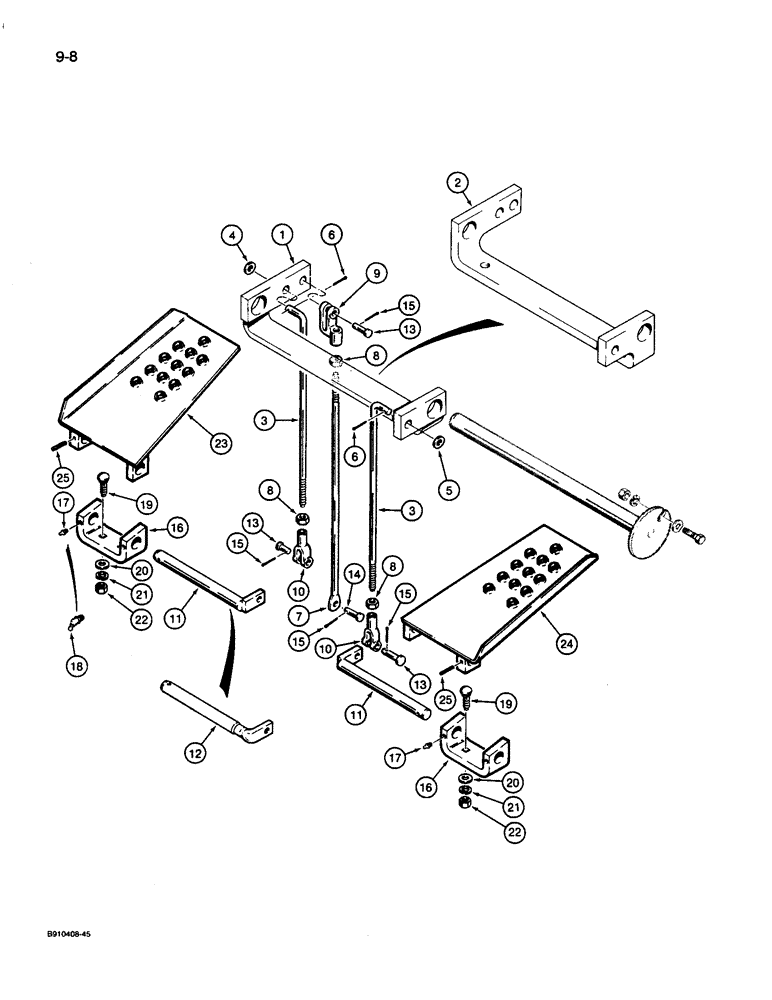

Запчасти Case 26D (9-08) - BACKHOE CONTROLS WITH FOOT SWING, SWING PEDALS AND MOUNTING

1

D86082

BRACKET

- swing pivot, no longer used, order D129392

1шт.

2

D129392

BRACKET

- swing pivot

1шт.

3

D81905

ROD

- swing pedal, Serial Range: shaft-bracket

2шт.

4

T40163

WASHER

- flat, left-hand rod

1шт.

5

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch

1шт.

6

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

7

D30821

ROD

- swing bracket to valve, straight, uses offset clevis

1шт.

8

129-123

NUT,3/8"-24, G5

3шт.

9

L11182

YOKE,3/8" - 24

CLEVIS - 3/8", offset, used on models with or without extendable dipper

1шт.

10

213-41

ADJUSTABLE CLEVIS,3/8"-24

(x 2-1/2") 3/8"-24

2шт.

11

D89317

SHAFT

- swing pedal, welded, no longer available, order D135328 shaft for service, Ref. 12

2шт.

12

D135328

SHAFT

- swing pedal

2шт.

13

141-54

CLEVIS PIN,3/8" x 1 1/16"

3шт.

14

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

1шт.

15

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

16

D92817

BRACKET

- swing pedal shaft

2шт.

17

219-17

LUBE NIPPLE,3/16" NPTF

GREASE FITTING - straight, 3/16", drive

4шт.

18

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16" drive, used on 450C/455C and 550 models

4шт.

19

11-632

BOLT,Short NK, 3/8"-16 x 2", G2

- round head square neck, 3/8 NC x 2 inch

4шт.

20

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch

4шт.

21

492-11038

LOCK WASHER,3/8"

4шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

23

D87888

PEDAL

- swing, left-hand

1шт.

24

D87886

PEDAL

- swing, right-hand

1шт.

25

138-304

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

2шт.
