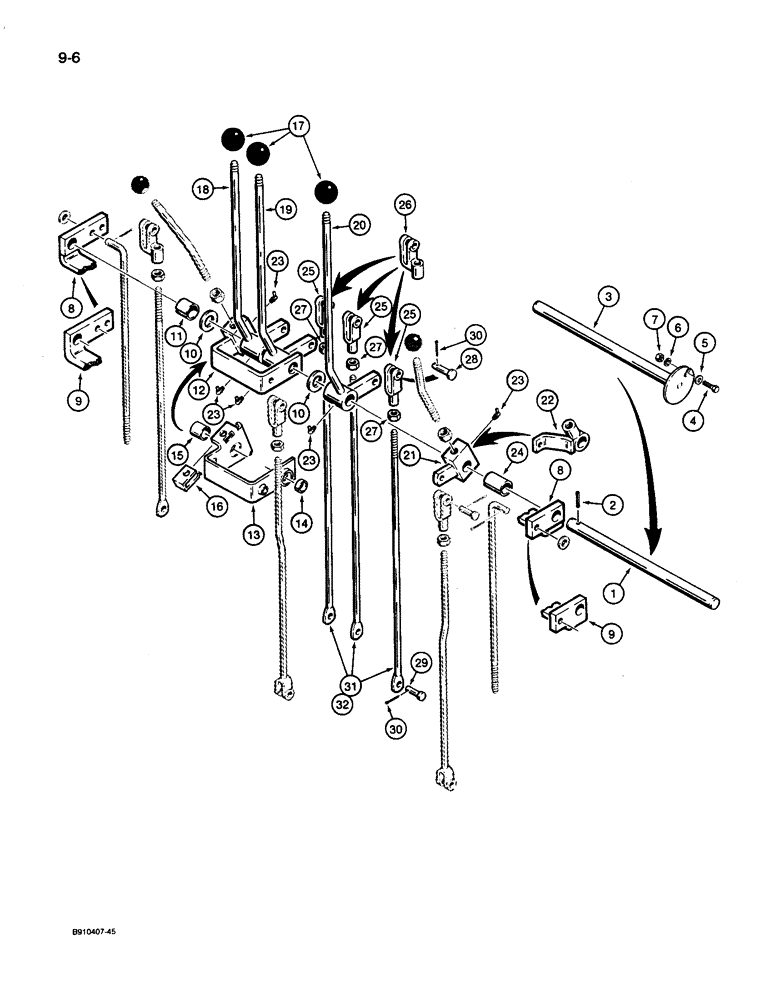

Запчасти Case 26D (9-06) - BACKHOE CONTROLS, BOOM, DIPPER AND BUCKET CONTROL LEVERS AND

1

D79526

ROD

SHAFT - control levers, used with D84083 control tower, see Figure 9-2, if used

1шт.

2

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , If used 1/4" x 1 1/4", Slotted

1шт.

3

D123224

SHAFT

- control levers, used with D123189 control tower, see Figure 9-2, if used

1шт.

4

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

If used Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

5

195-133

WASHER,5/16" x 3/4" x .065"

- flat, 1/4", black, if used

1шт.

6

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , If used 1/4"

1шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, If used

1шт.

8

D86082

BRACKET

- swing pivot, no longer used, order D129392 bracket

1шт.

9

D129392

BRACKET

- swing pivot

1шт.

10

195-545

WASHER,3/4", SAE

- flat, 13/16 x 1-15/32 x 1/8 inch, used as a shim

1шт.

11

D88212

BUSHING

SPACER - left-hand, not used with extendable dipper

1шт.

12

D92993

BRACKET

- left-hand stabilizer pivot, if used

1шт.

13

D123713

LEVER

BRACKET - left-hand stabilizer pivot, if used, Includes: Ref. 14 and 15

1шт.

14

D124852

BUSHING

- right-hand side of bracket

1шт.

15

A12018

BUSHING

- left-hand side of bracket

1шт.

16

D122307

NUT

NUT - U-type, used with D123713 bracket, if used

1шт.

17

L54563

KNOB

- boom, dipper, and bucket control levers

3шт.

18

D99173

HANDLE

LEVER - bucket control

1шт.

19

D99172

HANDLE

LEVER - dipper control

1шт.

20

D99171

HANDLE

LEVER - boom control

1шт.

21

D92995

LEVER

- pivot, right-hand stabilizer on models without extendable dipper, if used, see Ref. 28

1шт.

22

D87834

LEVER

- pivot, right-hand stabilizer on models with extendable dipper

1шт.

23

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4" - 28 NF taper

2-5шт.

24

D88213

SPACER

- right-hand, not used with extendable dipper

1шт.

25

213-41

ADJUSTABLE CLEVIS,3/8"-24

straight, metal, plated, replaces fiberglass clevis on some models 3/8"-24

5шт.

26

L11182

YOKE,3/8" - 24

CLEVIS - 3/8" - 24 NF, offset

1-4шт.

27

129-123

NUT,3/8"-24, G5

6шт.

28

141-54

CLEVIS PIN,3/8" x 1 1/16"

3шт.

29

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

3шт.

30

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

6шт.

31

D81902

ROD

- boom, dipper, and bucket control, models without extendable dipper

3шт.

32

D30821

ROD

- boom, dipper, and bucket control, models with extendable dipper, uses offset clevis, Ref. 26

3шт.
