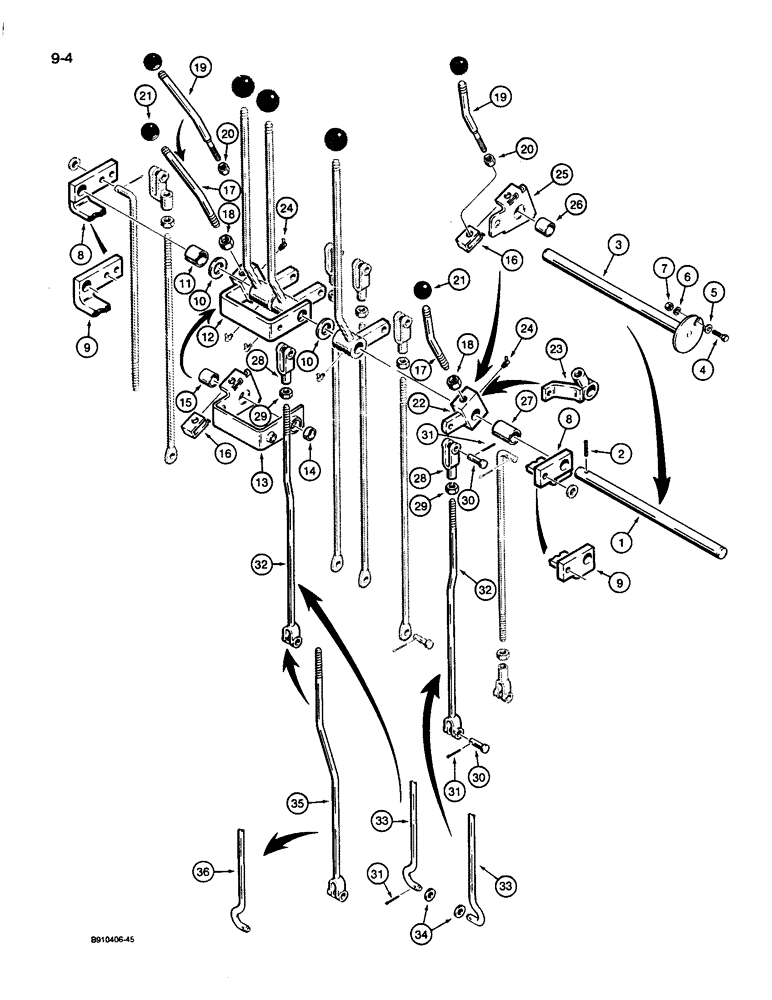

Запчасти Case 26D (9-04) - BACKHOE CONTROLS, STABILIZER CONTROL LEVERS AND LINKAGE

1

D79526

ROD

SHAFT - control levers, used with D84083 control tower, see Figure 9-2, if used

1шт.

2

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , If used 1/4" x 1 1/4", Slotted

1шт.

3

D123224

SHAFT

- control levers, used with D123189 control tower, see Figure 9-2, if used

1шт.

4

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

If used Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

5

195-133

WASHER,5/16" x 3/4" x .065"

- flat, 1/4", black, if used

1шт.

6

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , If used 1/4"

1шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, If used

1шт.

8

D86082

BRACKET

- swing pivot, no longer used, order D129392 bracket

1шт.

9

D129392

BRACKET

- swing pivot

1шт.

10

195-545

WASHER,3/4", SAE

- flat, 13/16 x 1-15/32 x 1/8 inch, used as shim

1шт.

11

D88212

BUSHING

SPACER - left-hand, not used with extendable dipper

1шт.

12

D92993

BRACKET

- left-hand stabilizer pivot, if used

1шт.

13

D123713

LEVER

BRACKET - left-hand stabilizer pivot, if used, Includes: Ref. 14 - 16

1шт.

14

D124852

BUSHING

- right-hand side of bracket

1шт.

15

A12018

BUSHING

- left-hand side of bracket

1шт.

16

D122307

NUT

NUT - U-type, used with D123713 bracket, if used

2шт.

17

D86249

LEVER

- control, stabilizer, uses 1/2" hardware, if used, see Ref. 19

2шт.

18

129-125

NUT,1/2"-20, G5

Used with Ref. 17, if used 1/2"-20, G5

2шт.

19

D123719

THREADED ROD

LEVER - control, stabilizer, uses 3/8" hardware, if used, see Ref. 17

2шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Used w/ ref. 19, if used 3/8"-16, G5

2шт.

21

D59912

KNOB

- stabilizer control levers

2шт.

22

D92995

LEVER

- pivot, right-hand stabilizer on models without extendable dipper, if used, see Ref. 25

1шт.

23

D87834

LEVER

- pivot, right-hand stabilizer on models with extendable dipper

1шт.

24

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4" - 28 NF taper

2-5шт.

25

D123715

LEVER

- pivot, right-hand stabilizer, on models without extendable dipper, if used, see Ref. 22, Includes: Ref. 26

1шт.

26

A12018

BUSHING

- D123175 lever

1шт.

27

D88213

SPACER

- right-hand, not used with extendable dipper

1шт.

28

H44198

YOKE

CLEVIS - 5/16" - 24 NF, straight, metal, plated, replaces fiberglass clevis on some models

2шт.

29

129-122

NUT,5/16"-24, G5

2шт.

30

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

6-8шт.

31

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

16шт.

32

D85934

ROD

- stabilizer control, no longer available, order D126331 rod and (2) 195-102 washers

1-2шт.

33

D126331

STEM

ROD - stabilizer control, two used on models without extendable dipper

1-2шт.

34

195-102

WASHER,1/4"

- flat, , plated 1/4"

2шт.

35

D87482

ROD

- left-hand stabilizer control on models with extendable dipper, if used

1шт.

36

D126334

ROD

- left-hand stabilizer control on models with extendable dipper, if used

1шт.
