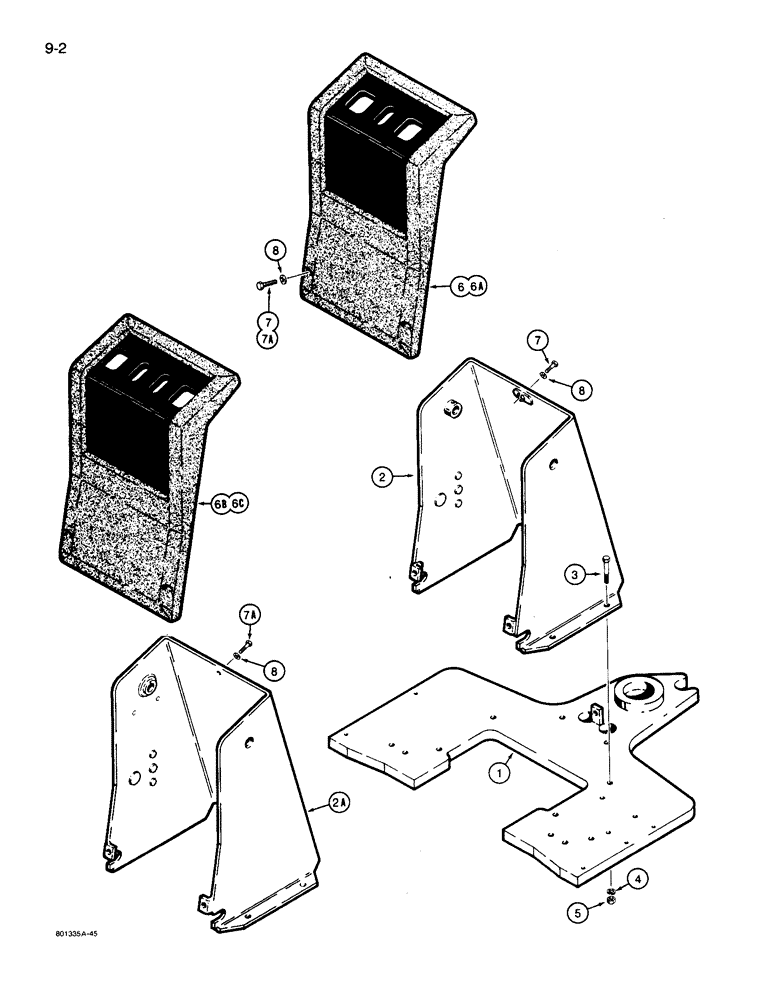

Запчасти Case 26D (9-02) - CONTROL TOWER

1

REF

INSTRUCTION

FRAME - backhoe mounting, see Figure 9-16

1шт.

2

D84083

SPARE PART

TOWER - backhoe control, no longer available, order Ref. 2A and 7 below and Ref. 3 - 7 on Figure 9-4

1шт.

2a

D123189

CONTROL BLOCK

TOWER - backhoe control

1шт.

3

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

6

D92397

COVER ASSY

COVER - console without extendable dipper, black, includes decals, see Figure 9-44 for decals, if used

1шт.

6a

D124081

COVER ASSY

COVER - console without extendable dipper, brown, includes decals, see Figure 9-44 for decals, if used

1шт.

6b

D92409

COVER

- console with extendable dipper, black, includes decals, see Figure 9-44 for decals, if used

1шт.

6c

D124082

COVER

- console with extendable dipper, brown, includes decals, see Figure 9-44 for decals, if used

1шт.

7

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

If used Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

7a

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT - self-tapping, 1/4" - 20 NC x 3/4", used with D124081 console cover

3шт.

8

195-133

WASHER,5/16" x 3/4" x .065"

- flat, 1/4", black

3шт.
