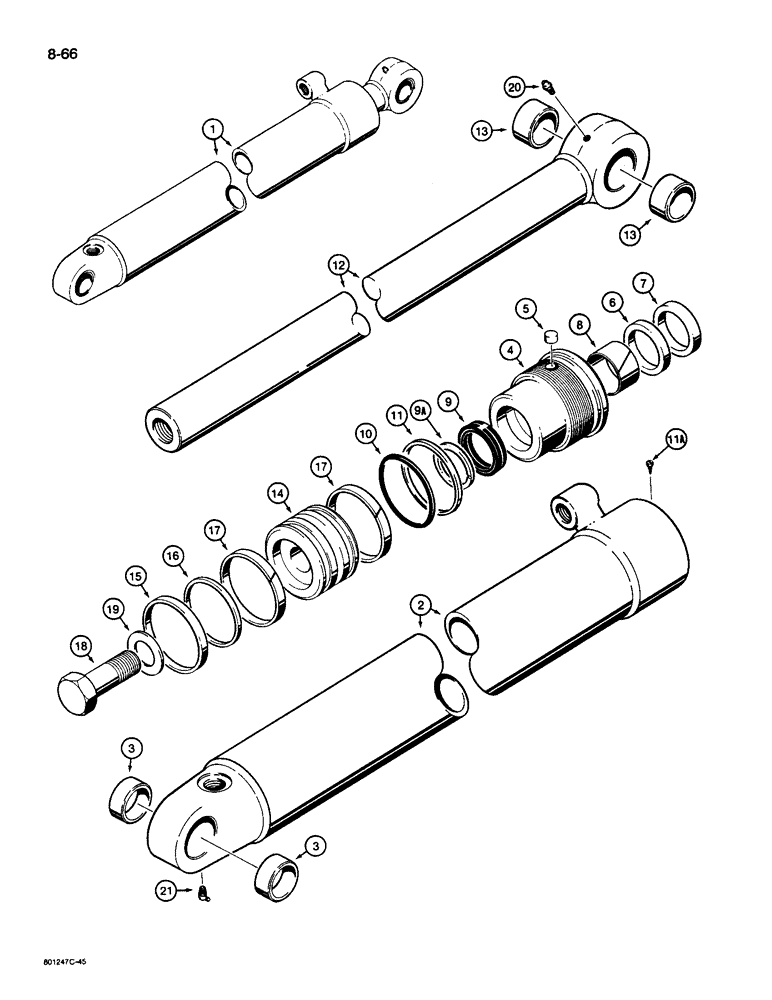

Запчасти Case 26D (8-66) - G103503 BUCKET CYLINDER

1

G103503

CYLINDER BLOCK

CYLINDER ASSEMBLY - 3-1/4 inch (83 mm) ID x 26-19/64 inch (668 mm) stroke, backhoe bucket, Includes: Ref. 2 - 21

1шт.

2

G103504

TUBE,34.36" L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- tube

2шт.

G104252

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

G102569

PLUG

- nylon, locking, gland

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining, bushing

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit P/N G109465

1шт.

8

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BEARING - center

1шт.

Part of Seal Kit P/N G109465

1шт.

9

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of Seal Kit P/N G109465

1шт.

9

G100778

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

9a

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit P/N G109465

1шт.

10

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- housing

1шт.

Part of Seal Kit P/N G109465

1шт.

11

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING - backup, gland O-ring

1шт.

Part of Seal Kit P/N G109465

1шт.

11a

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", If used

1шт.

12

G103509

ROD

ASSEMBLY - piston, 2" (51 mm) diameter, Includes: Ref. 13

1шт.

13

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

14

G100640

PISTON

- cylinder

1шт.

15

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G109465

1шт.

16

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

- backup, piston seal

1шт.

Part of Seal Kit P/N G109465

1шт.

17

S109445

RING,82.55mm OD, Ext

- wear, piston

2шт.

Part of Seal Kit P/N G109465

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

(National Superfine) Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- flat, 1 inch, hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

21

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8 PT x 7/8 inch

1шт.

G109465

GASKET KIT

KIT - seal, Includes: Refs. 7, 8, 9, 9A, 10, 11, 15, 16 and 17

1шт.
