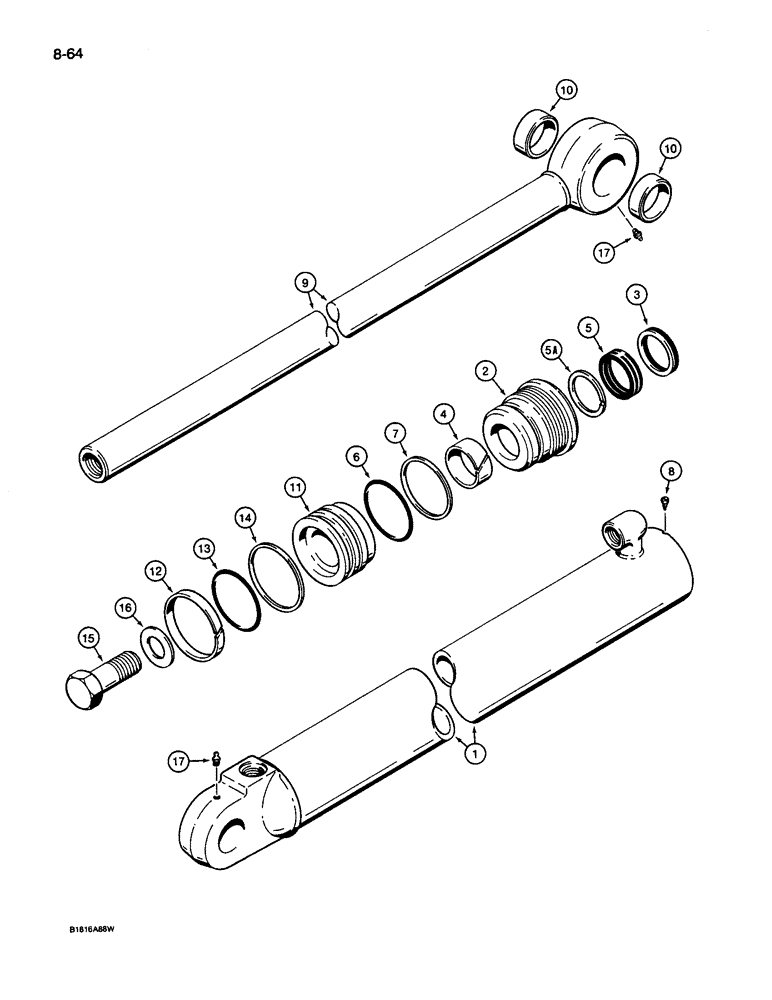

Запчасти Case 26D (8-64) - 1980159C1 DIPPER CYLINDER, 14 FOOT BACKHOE MODELS

1980159C1

CYLINDER BLOCK

CYLINDER ASSEMBLY - 3-3/4" (95 mm) ID x 33" (838 mm) stroke, backhoe dipper, Includes: Ref. 1 - 17

1шт.

1

1980176C1

HYD TUBE

TUBE ASSEMBLY - cylinder

1шт.

1980187C1

GLAND

ASSEMBLY - cylinder, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit P/N 1980181C1

1шт.

4

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BEARING - center

1шт.

Part of Seal Kit P/N 1980181C1

1шт.

5

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of Seal Kit P/N 1980181C1

1шт.

5

G100778

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

5a

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit P/N 1980181C1

1шт.

6

S5933

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N 1980181C1

1шт.

7

1980249C1

SEALING RING

RING - backup, gland O-ring

1шт.

Part of Seal Kit P/N 1980181C1

1шт.

8

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

9

1980252C1

ROD

ASSEMBLY - piston, 2" (51 mm) diameter, Includes: Ref. 10

1шт.

10

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

11

1980186C1

PISTON

- cylinder

1шт.

12

1980245C1

SEALING RING,89mm ID x 95.2mm OD x 12.5mm Thk

RING - wear, piston

1шт.

Part of Seal Kit P/N 1980181C1

1шт.

13

A32190

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

- piston

1шт.

Part of Seal Kit P/N 1980181C1

1шт.

14

1980250C1

SEALING RING

- piston

1шт.

Part of Seal Kit P/N 1980181C1

1шт.

15

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8

1шт.

16

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- flat, 1-1/4 inch, hardened

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

1980181C1

SEAL KIT

KIT - seal, Includes: Refs. 3, 4, 5, 5A, 6, 7, 12, 13 and 14

1шт.
