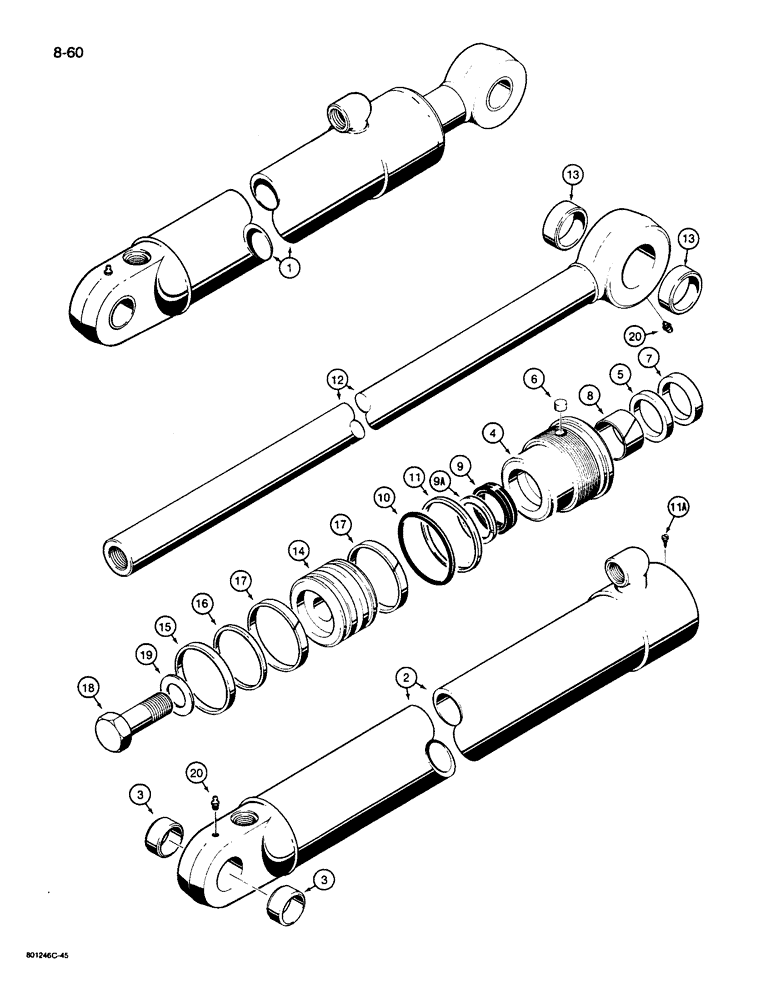

Запчасти Case 26D (8-60) - G104844 DIPPER CYLINDER, 12 FOOT BACKHOE MODELS

1

G104844

CYLINDER

ASSEMBLY - 3-1/2 inch (89 mm) ID x 33-1/8 inch (841 mm) stroke, backhoe dipper, Includes: Ref. 2 - 20

1шт.

2

G104845

TUBE,3.5" DIA x 41.87" L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube

2шт.

G104402

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining, bushing

1шт.

6

G102569

PLUG

- nylon, locking, gland

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit P/N G109453

1шт.

8

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BEARING - center

1шт.

Part of Seal Kit P/N G109453

1шт.

9

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of Seal Kit P/N G109453

1шт.

9

G100778

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

9a

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit P/N G109453

1шт.

10

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

Gland -238, 70 Duro, 3.484" ID x .139" Thk

1шт.

Part of Seal Kit P/N G109453

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of Seal Kit P/N G109453

1шт.

11a

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", If used

1шт.

12

G104842

ROD

ASSEMBLY - piston, Includes: Ref. 13

1шт.

13

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

14

G100692

PISTON

- cylinder

1шт.

15

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

SEAL - piston

1шт.

Part of Seal Kit P/N G109453

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

RING - backup, piston seal

1шт.

Part of Seal Kit P/N G109453

1шт.

17

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston

2шт.

Part of Seal Kit P/N G109453

1шт.

18

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8

1шт.

19

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- flat, 1-1/4 inch, hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

G109453

GASKET KIT

KIT - seal, Includes: Refs. 7, 8, 9, 9A, 10, 11, 15, 16 and 17

1шт.
