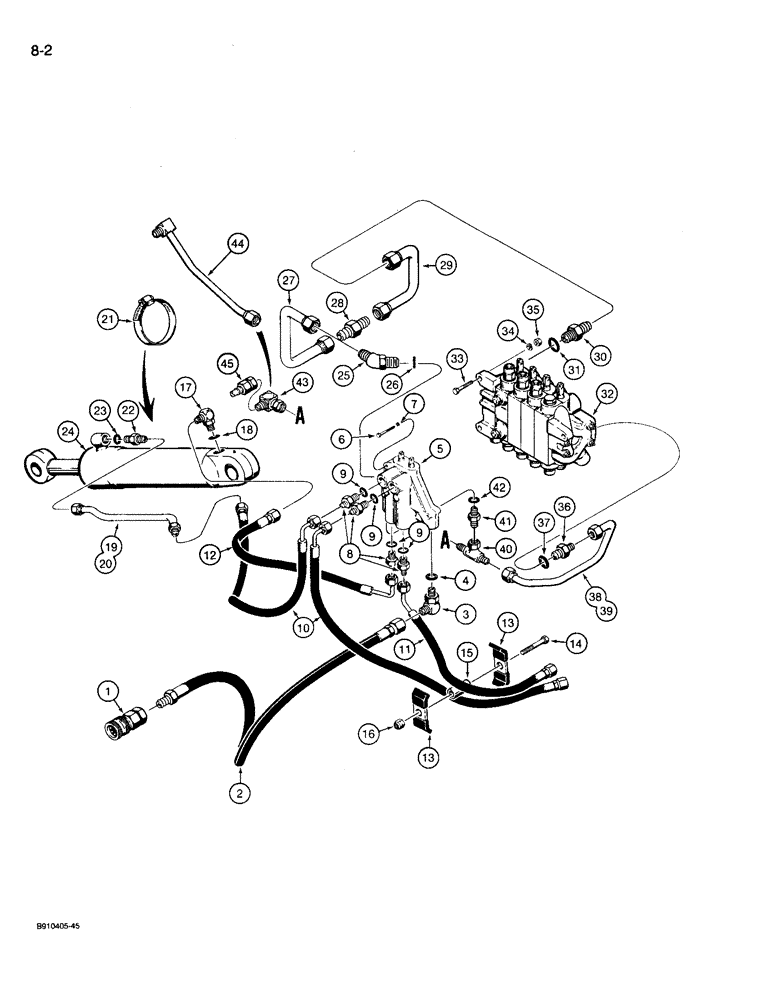

Запчасти Case 26D (8-02) - STABILIZER CYLINDER HYDRAULIC CIRCUIT

1

D52800

COUPLING, QUICK, FEM

DISCONNECT - quick, coupling, female, parts list Figure 8-48

1шт.

2

R36060

HOSE

- 45" (1143 mm) long, to stabilizer valve

1шт.

3

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj. O-ring boss, Incl. Ref. 4

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

5

REF

INSTRUCTION

VALVE ASSEMBLY - stabilizer control, see Figure 8-22 for correct assembly and components

1шт.

6

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, Includes Ref. 9

4шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

D99161

HOSE

- 35" (889 mm) long, to rod end of cylinders

2шт.

11

D99767

HOSE

- 27" (686 mm) long, to closed end of right-hand cylinder

1шт.

12

D99160

HOSE

- 32" (813 mm) long, to closed end of left-hand cylinder

1шт.

13

D40236

CLAMP

- hose

4шт.

14

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

15

D36040

BUSHING

SPACER - hose clamp

2шт.

16

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

2шт.

17

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj. O-ring boss, Incl. Ref. 18

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

19

D75321

HYD TUBE,0.625" OD x 1.42, 16.4" L

TUBE - right-hand cylinder

1шт.

20

D75341

HYD TUBE,0.625" OD x 1.42, 16.4" L

TUBE - left-hand cylinder

1шт.

21

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - adj, 3-9/16 - 4-1/2 inch diameter

2шт.

22

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 23

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

24

G101200

STABILIZER,STABILIZER CYLINDER

CYLINDER ASSEMBLY - 3 inch ID, stabilizer, parts list Figure 8-50, if used

2шт.

24

REF

INSTRUCTION

CYLINDER ASSEMBLY - 3-1/2 inch ID, stabilizer, see Figure 8-52 or 8-54 for correct assembly and components, if used

2шт.

25

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, 1-1/16-12 inch flare x adj. O-ring boss, Includes: Ref. 26

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

27

D99889

HYD TUBE,19.05 mm OD x 185, 103 mm L

TUBE - from stabilizer control valve

1шт.

28

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight, 1-1/16-12 inch flare

1шт.

29

D99888

HYD TUBE,0.75" OD

TUBE - to backhoe control valve

1шт.

30

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring, Incl. Ref. 31

1шт.

31

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1 inch OD tube

1шт.

32

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, see Figure 8-24 or 8-26 for correct assembly and components

1шт.

33

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

35

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

36

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring, backhoe control valve inlet port, Incl. Ref. 37

1шт.

37

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1 inch O.D. tube

1шт.

38

D99125

HYD TUBE,0.75" OD

TUBE - backhoe control valve return, models without extendable dipper

1шт.

39

D99057

HYD TUBE,0.75" OD

TUBE - backhoe control valve return, models with extendable dipper

1шт.

40

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

- 1-1/16-12 inch swiv str thread branch x flare x flare

1шт.

41

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 fl x 7/8-14 inch O-ring boss, Includes: Ref. 42

1шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

43

218-990

ELBOW,90 Degree, 1 3/16"-12 Sw x 3/4" NPT

- 90 deg, 1-1/16-12 swiv straight thread x 3/4 inch PT, if used

1шт.

44

D99061

HYD TUBE,19.05 mm OD x 275.1, 37.3 mm L

TUBE - return to tractor, if used

1шт.

45

D52694

QUICK MALE COUPLING

DISCONNECT - quick, coupling, male, parts list Figure 8-48

1шт.
