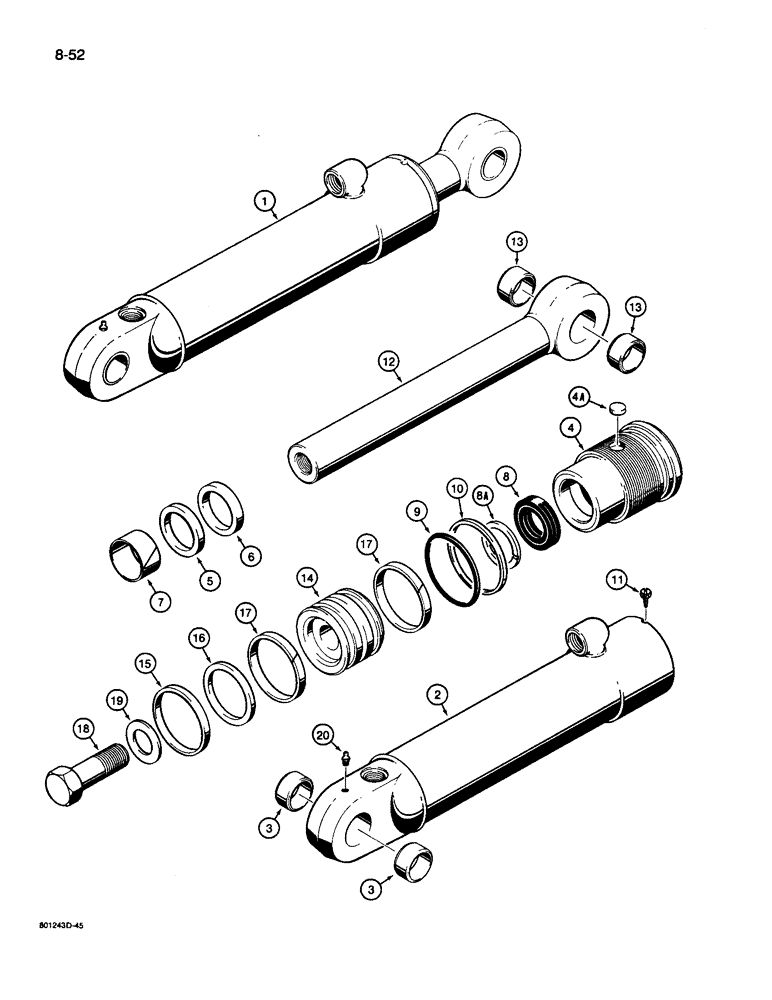

Запчасти Case 26D (8-52) - G102294 STABILIZER CYLINDER

1

G102294

CYLINDER

ASSEMBLY - 3-1/2 inch (89 mm) ID x 16-3/8 inch (416 mm) stroke, stabilizer, heavy duty, if used, no longer available, order 1340827C1, see Fig. 8-54, also see G101200 3" (76 mm) ID stabilizer cylinder on Fig. 8-50, Includes: Ref. 2 - 20

2шт.

2

G35008

TUBE,25.12" L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube

2шт.

G104276

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4a

G102569

PLUG

- nylon, locking, gland, if used

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining, bushing

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G109471

1шт.

7

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of Seal Kit P/N G109471

1шт.

8

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of Seal Kit P/N G109471

1шт.

8

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- U-cup, piston rod, service option - severe heat or cold

1шт.

8a

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

- piston rod, narrow, with groove

1шт.

Part of Seal Kit P/N G109471

1шт.

9

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

Gland -238, 70 Duro, 3.484" ID x .139" Thk

1шт.

Part of Seal Kit P/N G109471

1шт.

10

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of Seal Kit P/N G109471

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", If used

1шт.

12

G102295

ROD

ASSEMBLY - piston, 1-3/4 inch (44 mm) diameter, Includes: Ref. 13

1шт.

13

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

14

G100698

PISTON

- cylinder

1шт.

15

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G109471

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

RING - backup, piston seal

1шт.

Part of Seal Kit P/N G109471

1шт.

17

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston

2шт.

Part of Seal Kit P/N G109471

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

(National Superfine) Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- flat, 1 inch, hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

G109471

GASKET KIT

KIT - seal, Includes: Refs. 6, 7, 8, 8A, 9, 10, 15, 16 and 17

1шт.
