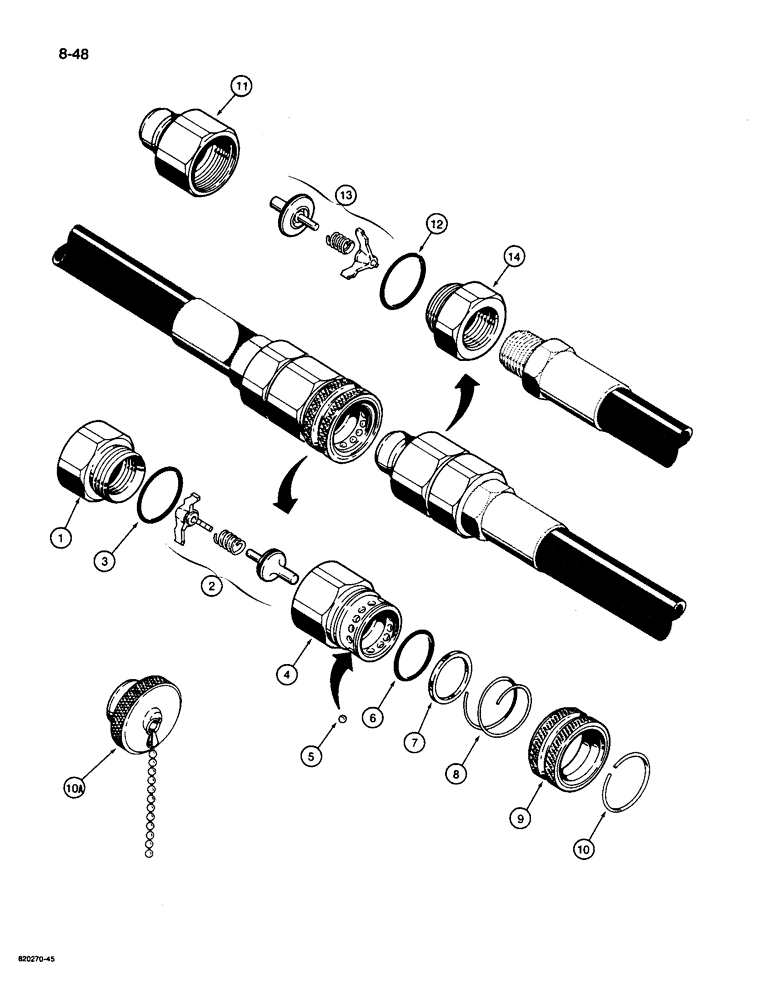

Запчасти Case 26D (8-48) - HYDRAULIC QUICK DISCONNECT COUPLINGS, D52800 FEMALE COUPLING

D52800

COUPLING, QUICK, FEM

DISCONNECT - quick, coupling, female, Includes: Ref. 1 - 10

1шт.

1

D31975

FITTING

ADAPTER - coupling

1шт.

2

D53915

VALVE

ASSEMBLY - coupling, component parts not serviced separately

1шт.

3

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- coupling

1шт.

4

D53916

BODY

- coupling

1шт.

5

211-6

BALL,7/32" Dia

grade 200, chrome alloy steel 7/32" Dia

10шт.

6

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

O-RING - body, coupling

1шт.

7

D54276

RING

- backup, O-ring

1шт.

8

D31979

VALVE SPRING

SPRING - sleeve

1шт.

9

D31980

SLEEVE CYLINDER

SLEEVE - ball retaining

1шт.

10

D31981

RING

- retaining, sleeve

1шт.

10a

D39924

PLUG

- dust, for female coupling

1шт.

D52694

QUICK MALE COUPLING

DISCONNECT - quick, coupling, male, Includes: Ref. 11 - 14

1шт.

11

D31971

BODY

- coupling

1шт.

12

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- body, coupling

1шт.

13

D53915

VALVE

ASSEMBLY - coupling, component parts not serviced separately

1шт.

14

D31975

FITTING

ADAPTER - coupling

1шт.
