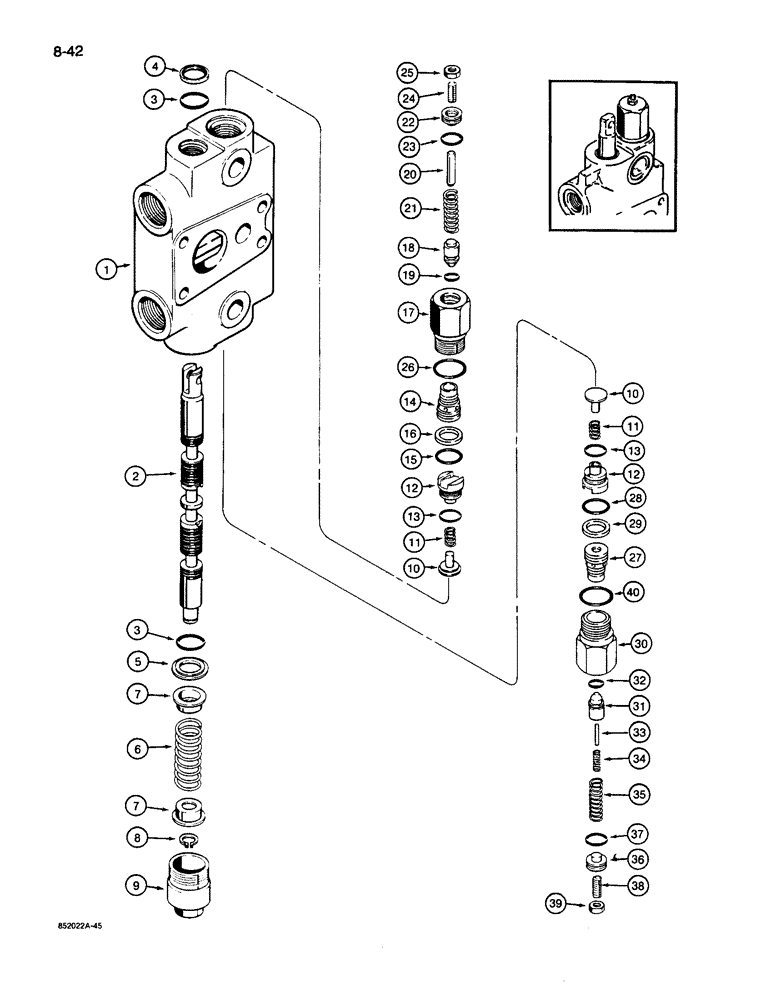

Запчасти Case 26D (8-42) - G109514 BACKHOE CONTROL VALVE, BOOM SECTION

G109514

KNIFE SECTION

SECTION ASSEMBLY - boom, circuit relief valve with one-piece cap, replaces G103399 boom section assembly on Figure 8-38, Includes: Ref. 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - boom section

1шт.

3

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- 5/16 inch ID

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

- spool

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G34463

SPRING

- centering, spool

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT - centering spring

2шт.

8

G33077

SNAP RING,#47, Ext

Ring, Snap, , retainer #47, Ext

1шт.

9

P0033080G

SCREW

- centering spring

1шт.

10

G33081

VALVE POPPET

POPPET - load check valve

2шт.

11

G33573

SPRING

- load check valve

2шт.

12

G33084

PLUG

- load check valve

2шт.

13

G33686

O-RING,0.07" Thk x 0.61" ID

- plug

2шт.

G109441

KIT

VALVE ASSEMBLY - circuit relief, upper, spool eye end, low pressure, one-piece cap, replaces G34052 valve in production, see Figure 8-38, order G109448 kit for service, Includes: Ref. 14 - 26

1шт.

14

NSS

NOT SOLD SEPARAT

SEAT - circuit relief valve

1шт.

Part of Service Kit G109448

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Seat -018, 90 Duro, .739" ID x .070" Thk

1шт.

Part of Service Kit G109448

1шт.

16

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, 3/4 inch ID O-ring, seat

1шт.

Part of Service Kit G109448

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

Part of Service Kit G109448

1шт.

18

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

Part of Service Kit G109448

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

Part of Service Kit G109448

1шт.

20

NSS

NOT SOLD SEPARAT

PIN - stop, circuit relief valve spring

1шт.

Part of Service Kit G109448

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - circuit relief valve

1шт.

Part of Service Kit G109448

1шт.

22

NSS

NOT SOLD SEPARAT

PISTON - circuit relief valve

1шт.

Part of Service Kit G109448

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of Service Kit G109448

1шт.

24

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW - set, hex socket headless, 5/16 - 24 NF x 25 mm

1шт.

Part of Service Kit G109448

1шт.

25

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex jam, 5/16 inch NF

1шт.

Part of Service Kit G109448

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

Part of Seal Kit P/N G109479

1шт.

G109448

KIT

- service for G109441, includes G109446 relief valve assembly (Refs. 14 - 26) and an instruction sheet

1шт.

Part of Service Kit G109448

1шт.

G107786

VALVE, PRESSURE RELI

VALVE ASSEMBLY - circuit relief, lower, spool cap end, high pressure, one-piece cap, replaces G34043 valve in production, see Figure 8-38, order G109449 kit for service, Includes: Ref. 27 - 40

1шт.

Part of Service Kit G109448

1шт.

27

NSS

NOT SOLD SEPARAT

SEAT - circuit relief valve

1шт.

Part of Service Kit G109448

1шт.

28

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Seat -018, 90 Duro, .739" ID x .070" Thk

1шт.

Part of Service Kit G109448

1шт.

29

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, 3/4 inch ID O-ring, seat

1шт.

Part of Service Kit G109449

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

Part of Service Kit G109449

1шт.

31

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

Part of Service Kit G109449

1шт.

32

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

Part of Service Kit G109449

1шт.

33

NSS

NOT SOLD SEPARAT

PIN - relief stop

1шт.

Part of Service Kit G109449

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING - circuit relief valve, inner

1шт.

Part of Service Kit G109449

1шт.

35

NSS

NOT SOLD SEPARAT

SPRING - circuit relief valve, outer

1шт.

Part of Service Kit G109449

1шт.

36

NSS

NOT SOLD SEPARAT

PISTON - circuit relief valve

1шт.

Part of Service Kit G109449

1шт.

37

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of Service Kit G109449

1шт.

38

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW - set, hex socket headless, 5/16 - 24 NF x 25 mm

1шт.

Part of Service Kit G109449

1шт.

39

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex jam, 5/16 inch NF

1шт.

Part of Service Kit G109449

1шт.

40

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Body

1шт.

Part of Service Kit G109449

1шт.

G109449

KIT

- service for G107786, includes G109447 relief valve assembly (Refs. 27 - 40) and an instruction sheet

1шт.
