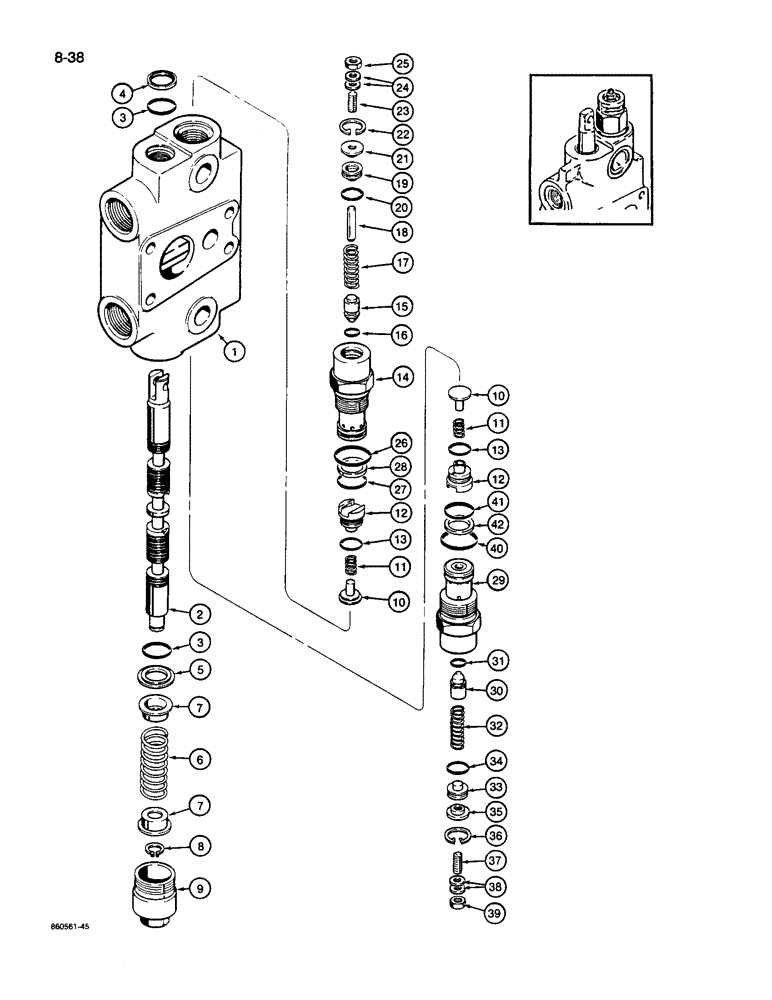

Запчасти Case 26D (8-38) - G103399 BACKHOE CONTROL VALVE, BOOM SECTION

G103399

KNIFE SECTION

SECTION ASSEMBLY - boom, no longer available, order G109514 boom section assembly on Figure 8-42, Includes: Ref. 1 - 28

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - boom section

1шт.

3

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- 5/16 inch ID, body

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

- spool

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G34463

SPRING

- centering, spool

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT - centering spring

2шт.

8

G33077

SNAP RING,#47, Ext

Ring, Snap, , retainer #47, Ext

1шт.

9

G33080

CAP

- centering spring

1шт.

10

G33081

VALVE POPPET

POPPET - load check valve

2шт.

11

G33573

SPRING

- load check valve

2шт.

12

G33084

PLUG

- load check valve

2шт.

13

G33686

O-RING,0.07" Thk x 0.61" ID

- plug

2шт.

G34052

KIT

VALVE ASSEMBLY - circuit relief, upper, spool eye end, w/round retainer & snap ring at outer end of circuit relief cap, used in production, no longer available, replaced by G109441, see Fig. 8-42, order G109448 kit for service, Includes: Ref. 14 - 28

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve and according to the service manual.

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

Part of service kit G34052

1шт.

15

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

Part of service kit G34052

1шт.

16

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

Part of service kit G34052

1шт.

17

G105693

VALVE SPRING

SPRING - circuit relief valve, outer

1шт.

Part of service kit G34052

1шт.

18

G33241

PIN

- stop, relief valve

1шт.

Part of service kit G34052

1шт.

19

G33091

PISTON

- circuit relief valve

1шт.

Part of service kit G34052

1шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Piston -014, 90 Duro, .489" ID x .070" Thk

1шт.

Part of service kit G34052

1шт.

21

G33092

RETAINER

- circuit relief valve

1шт.

Part of service kit G34052

1шт.

22

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , circuit relief valve 0.75", Int, #75

1шт.

Part of service kit G34052

1шт.

23

G102782

SET SCREW,1/4" - 20 x 1"

- set, hex socket, 1/4 NC x 1 inch

1шт.

Part of service kit G34052

1шт.

24

G102781

WASHER

- special, if used

2шт.

Part of service kit G34052

1шт.

25

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex, jam, 1/4 inch NC

1шт.

Part of service kit G34052

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

Part of service kit G34052

1шт.

27

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Part of service kit G34052

1шт.

28

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, 3/4 inch ID O-ring

1шт.

Part of service kit G34052

1шт.

G109448

KIT

- service for G34052, includes G109446 relief valve assembly (Refs. 14 - 28) and an instruction sheet

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve and according to the service manual.

1шт.

G34043

KIT

VALVE ASSEMBLY - circuit relief, lower, spool cap end, ring at outer end of circuit relief valve cap, used in production, no longer available, replaced by G107786, see Figure 8-42, order G109449 kit for service, Includes: Ref. 29 - 42

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve and according to the service manual.

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

Part of Service Kit G109449

1шт.

30

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

Part of Service Kit G109449

1шт.

31

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Poppet

1шт.

Part of Service Kit G109449

1шт.

32

G105693

VALVE SPRING

SPRING - circuit relief valve

1шт.

Part of Service Kit G109449

1шт.

33

G33091

PISTON

- circuit relief valve

1шт.

Part of Service Kit G109449

1шт.

34

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Piston -014, 90 Duro, .489" ID x .070" Thk

1шт.

Part of Service Kit G109449

1шт.

35

G33092

RETAINER

- circuit relief valve

1шт.

Part of Service Kit G109449

1шт.

36

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , circuit relief valve 0.75", Int, #75

1шт.

Part of Service Kit G109449

1шт.

37

G102782

SET SCREW,1/4" - 20 x 1"

- set, hex socket, 1/4 NC x 1 inch

1шт.

Part of Service Kit G109449

1шт.

38

G102781

WASHER

- special, if used

2шт.

Part of Service Kit G109449

1шт.

39

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex, jam, 1/4 inch NC

1шт.

Part of Service Kit G109449

1шт.

40

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

Part of Service Kit G109449

1шт.

41

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Part of Service Kit G109449

1шт.

42

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, 3/4 inch ID O-ring, if used

1шт.

Part of Service Kit G109449

1шт.

G109449

KIT

- service, G34043, includes G109447 relief valve assembly (Refs. 29 - 42) and an instruction sheet

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve and according to the service manual.

1шт.
