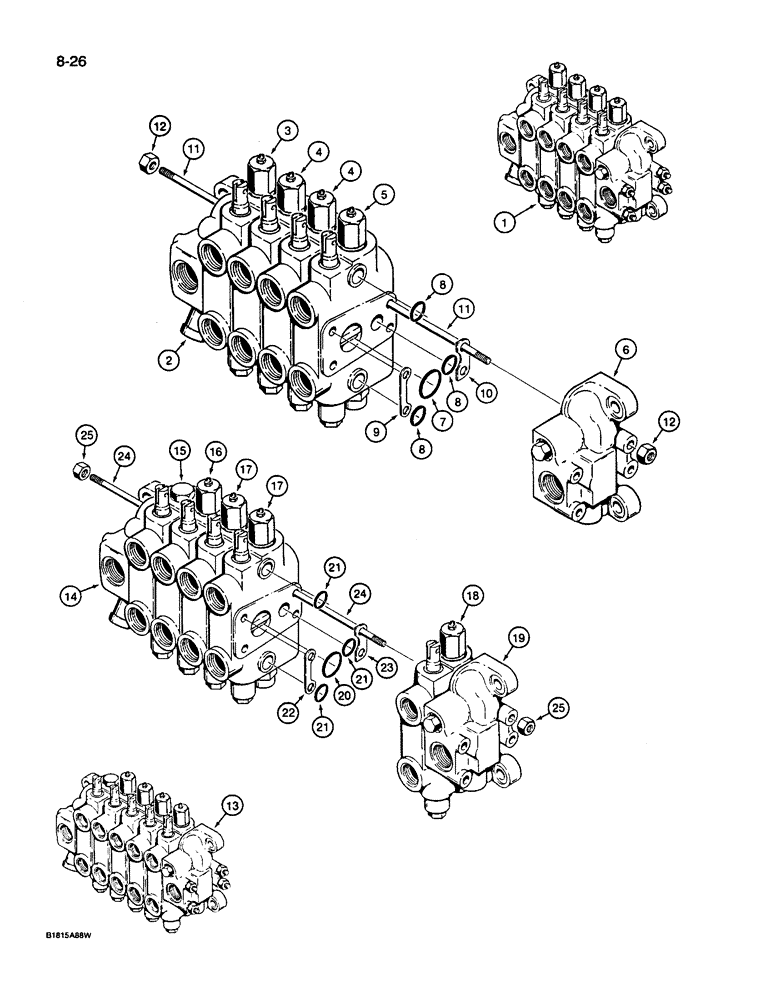

Запчасти Case 26D (8-26) - BACKHOE CONTROL VALVES

1

G109542

VALVE

ASSEMBLY - control, without extendable dipper, replaces G103394 control valve assembly on Figure 8-24, Includes: Ref. 2 - 12

1шт.

2

G33108

MANIFOLD

SECTION ASSEMBLY - outlet, parts list Figure 8-28

1шт.

3

G109514

KNIFE SECTION

SECTION ASSEMBLY - boom, parts list Figure 8-42

1шт.

4

G109513

HYD VALVE SECTION

SECTION ASSEMBLY - dipper and bucket, parts list Figure 8-32

2шт.

5

G109522

VALVE

SECTION ASSEMBLY - swing, parts list Figure 8-36

1шт.

6

G33102

MANIFOLD

SECTION ASSEMBLY - inlet, parts list Figure 8-28

1шт.

7

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

- section ports, large

5шт.

8

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small -119, 90 Duro, .924" ID x .103" Thk

15шт.

9

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve 0.051mm Thk

5шт.

10

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

5шт.

11

G34942

TIE-ROD

STUD - tie, 3/8 NC x 13-3/4 inch

4шт.

12

425-106

NUT,3/8"-16, Cl 5

8шт.

13

G109538

VALVE

ASSEMBLY - control, backhoe, with extendable dipper, replaces G103395 control valve assembly on Figure 8-24, Includes: Ref. 14 - 25

1шт.

14

G33108

MANIFOLD

SECTION ASSEMBLY - outlet, parts list Figure 8-28

1шт.

15

G103404

SEGMENT

SECTION ASSEMBLY - dipper extension, parts list Figure 8-46

1шт.

16

G109514

KNIFE SECTION

SECTION ASSEMBLY - boom, parts list Figure 8-42

1шт.

17

G109513

HYD VALVE SECTION

SECTION ASSEMBLY - dipper and bucket, parts list Figure 8-32

2шт.

18

G109522

VALVE

SECTION ASSEMBLY - swing, parts list Figure 8-36

1шт.

19

G33102

MANIFOLD

SECTION ASSEMBLY - inlet, parts list Figure 8-28

1шт.

20

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

- section ports, large

6шт.

21

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small -119, 90 Duro, .924" ID x .103" Thk

18шт.

22

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve 0.051mm Thk

6шт.

23

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

6шт.

24

G34675

TIE-ROD

STUD - tie, 3/8 NC x 15-3/4 inch

4шт.

25

425-106

NUT,3/8"-16, Cl 5

8шт.
