Запчасти Case 26D (8-24) - BACKHOE CONTROL VALVES

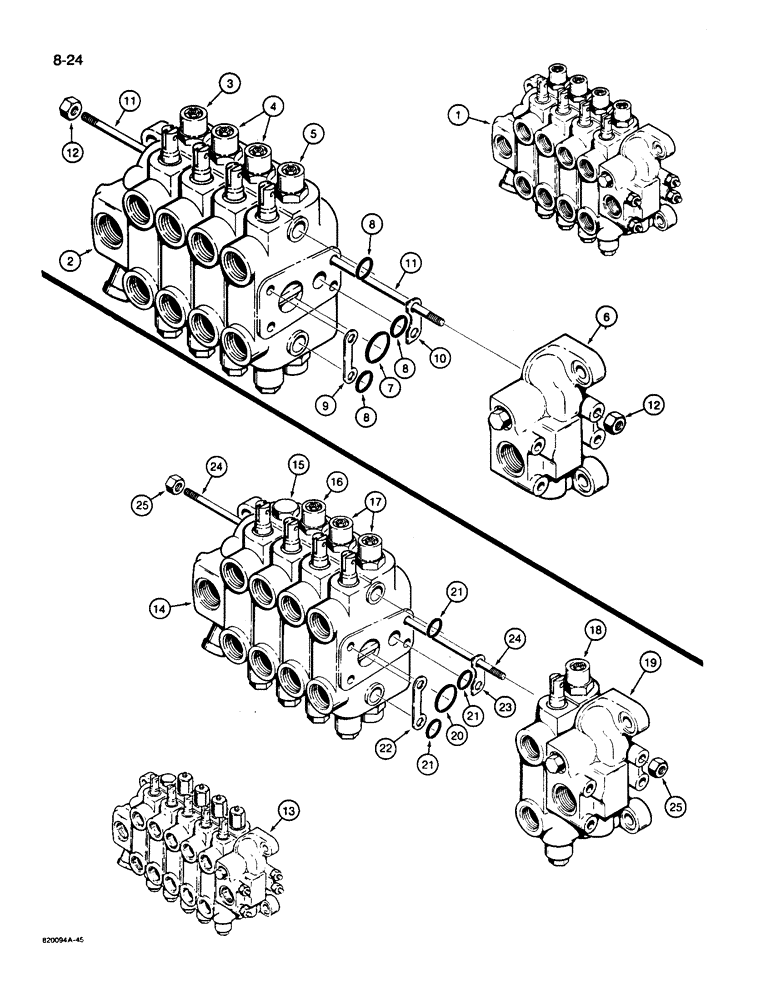

Схема запчастей Case 26D - (8-24) - BACKHOE CONTROL VALVES

Артикул

Название

Примечание

Количество

1

G103394

VALVE

ASSEMBLY - control, backhoe, without extendable dipper, order G109542 control valve assembly on Figure 8-26, Includes: Ref. 2 - 12

1шт.

2

G33108

MANIFOLD

SECTION ASSEMBLY - outlet, parts list Figure 8-28

1шт.

3

G103399

KNIFE SECTION

SECTION ASSEMBLY - boom, parts list Figure 8-38

1шт.

4

G103401

KNIFE SECTION

SECTION ASSEMBLY - dipper and bucket, parts list Figure 8-30

2шт.

5

G103403

KNIFE SECTION

SECTION ASSEMBLY - swing, parts list Figure 8-34

1шт.

6

G33102

MANIFOLD

SECTION ASSEMBLY - inlet, parts list Figure 8-28

1шт.

7

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

- section ports, large

5шт.

8

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports, small -119, 90 Duro, .924" ID x .103" Thk

15шт.

9

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of valve 0.051mm Thk

5шт.

10

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

5шт.

11

G34942

TIE-ROD

STUD - tie, 3/8 NC x 13-3/4 inch

4шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

13

G103395

VALVE

ASSEMBLY - control, backhoe, with extendable dipper, no longer available, order G109538 control valve assembly on Figure 8-26, Includes: Ref. 14 - 25

1шт.

14

G33108

MANIFOLD

SECTION ASSEMBLY - outlet, parts list Figure 8-28

1шт.

15

G103404

SEGMENT

SECTION ASSEMBLY - dipper extension, parts list Figure 8-46

1шт.

16

G103399

KNIFE SECTION

SECTION ASSEMBLY - boom, parts list Figure 8-38

1шт.

17

G103401

KNIFE SECTION

SECTION ASSEMBLY - dipper and bucket, parts list Figure 8-30

2шт.

18

G103403

KNIFE SECTION

SECTION ASSEMBLY - swing, parts list Figure 8-34

1шт.

19

G33102

MANIFOLD

SECTION ASSEMBLY - inlet, parts list Figure 8-28

1шт.

20

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

- section ports, large

6шт.

21

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

small -119, 90 Duro, .924" ID x .103" Thk

18шт.

22

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve 0.051mm Thk

6шт.

23

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

6шт.

24

G34675

TIE-ROD

STUD - tie, 3/8 NC x 15-3/4 inch

4шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

Выбрано товаров: 25
