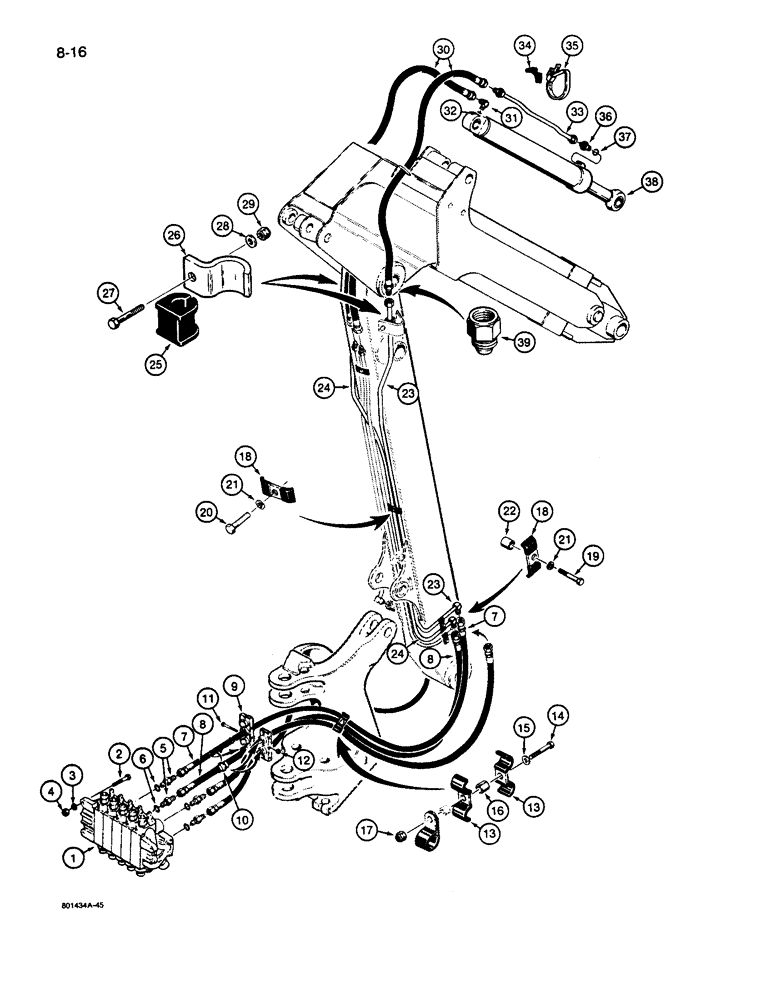

Запчасти Case 26D (8-16) - BUCKET CYLINDER HYDRAULIC CIRCUIT MODELS WITH EXTENDABLE DIPPER

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, see Figures 8-24 or 8-26 for correct assembly and components

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

5

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring, Includes: Ref. 6

3шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

D99157

HOSE

- 51" (1295 mm) long, from upper valve port

1шт.

8

D99146

HOSE

- 47" (1193 mm) long, from lower valve port

1шт.

9

D99151

CLAMP

- hose, includes two halves

1шт.

10

D99822

BUSHING

GROMMET - hose

2шт.

11

113-178

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex, 5/16 NC x 4-1/2 inch

3шт.

12

131-4

LOCK NUT,5/16"-18, GB

NUT - light hex, self-locking, 5/16 inch NC

3шт.

13

D42833

CLAMP

- hose, at swing tower

2шт.

14

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch, For extendable dipper clamp and spacer, see Figure 8-20, Ref. 13 and 14

1шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

16

R46103

SPACER

- clamp, see Figure 8-20, item 14 for second spacer

1шт.

17

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

1шт.

18

A13622

PLATE, LOCKING

CLAMP - tube, at boom

2шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

20

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

D36040

BUSHING

SPACER - tube clamp, side of boom

1шт.

23

D99137

HYD TUBE,19.05 mm OD

TUBE - right-hand, uses tubes with welded 90 degree fittings

1шт.

24

D99139

HYD TUBE,19.05 mm OD x 1711.5, 240.9 mm L

TUBE - left-hand, uses tubes with welded 90 degree fittings

1шт.

25

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR - tube clamp

2шт.

26

D74192

CLAMP

- tube

2шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

28

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

29

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

2шт.

30

D34298

HOSE

- 56" (1422 mm) long, to bucket cylinder

2шт.

31

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 1-1/16-12 flare x 7/8-14 inch adj. O-ring, Includes: Ref. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

33

D99206

HYD TUBE,19.05 mm OD x 738, 95.8 mm L

TUBE - to rod end of bucket cylinder

1шт.

34

D38648

BLOCK

INSULATOR - rubber

1шт.

35

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - adj, 3-9/16 - 4-1/2 inch dia

2шт.

36

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 fl x 7/8-14 inch O-ring boss, Includes: Ref. 37

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

38

G103503

CYLINDER BLOCK

CYLINDER ASSEMBLY - 3-1/4 inch ID x 26-19/64 inch stroke, parts list Figure 8-66

1шт.

39

218-1703

REDUCER,37 Degree, 7/8"-14, Fem x 1 1/16"-12 Male

ADAPTER - 7/8-14 fem straight thread x 1-1/16-12 inch flare, adapts Ref. 30, 31, 33, and 36 from Figure 8-18 to backhoes with welded 90 degree fittings on tubes (Ref. 23 and 24), if used

2шт.
