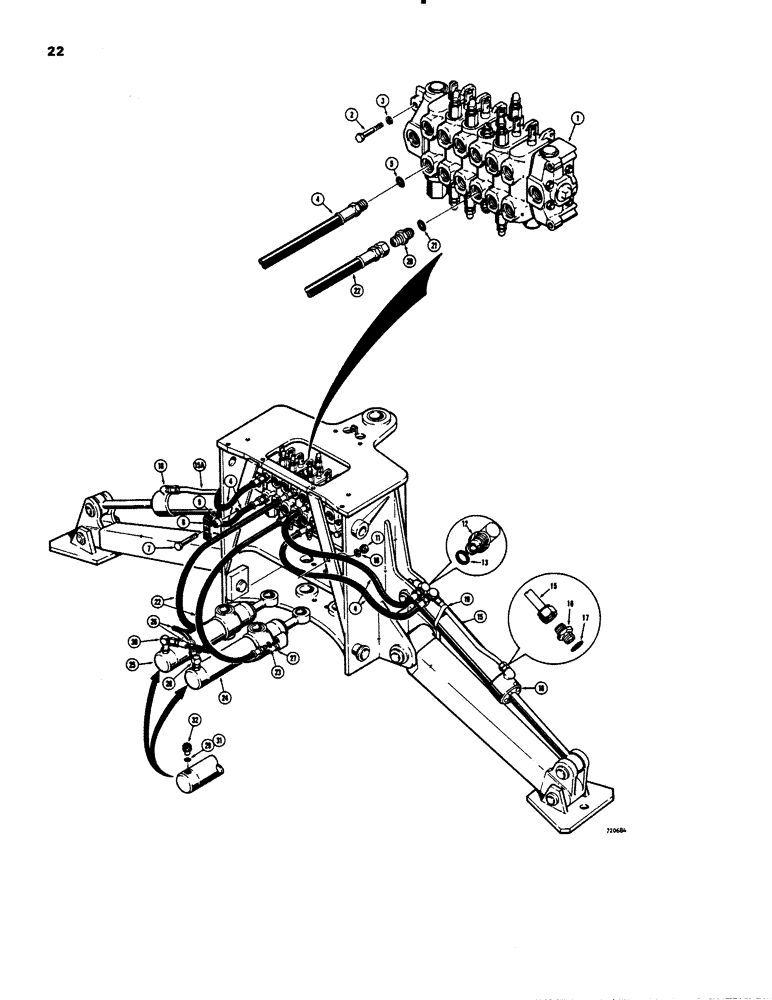

Запчасти Case 26C (022) - SWING & STBLZR CYL, HYD CIRCT, FOR 350 & 450 CRWLRS BEF BACKHOE SN 5220152,STBLZR CIRCT,SWING CIRCT

1

D39047

VALVE

- backhoe control, parts list Figure 062

1шт.

2

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

D49536

HOSE

- to stabilizer cylinders, 34-1/2" (876 mm) long, stabilizer cylinder hydraulic circuit, Includes: Ref. 5

4шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- hose, stabilizer cylinder hydraulic circuit

1шт.

7

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Stabilizer cylinder hydraulic circuit Hex, 3/8"-16 x 2 1/4", G5

2шт.

8

D33316

CLAMP

- hose, stabilizer cylinder hydraulic circuit

2шт.

9

D33829

BUSHING

SPACER - clamp, stabilizer cylinder hydraulic circuit

2шт.

9

D33829

BUSHING

SPACER - clamp, stabilizer cylinder hydraulic circuit

2шт.

10

195-25

WASHER,3/8"

- flat, , stabilizer cylinder hydraulic circuit 3/8"

2шт.

11

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, lock, 3/8" - 16 NC, stabilizer cylinder hydraulic circuit

2шт.

12

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING - 90 degree adjustable elbow, stabilizer cylinder hydraulic circuit, Incl. Ref. 13

2шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting, stabilizer cylinder hydraulic circuit

1шт.

15

D49535

TUBE

- valve to stabilizer cylinder, rod end, R.H., stabilizer cylinder hydraulic circuit

1шт.

15a

D49534

TUBE

- valve to stabilizer cylinder, rod end, L.H., stabilizer cylinder hydraulic circuit

1шт.

16

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - male, straight connector, stabilizer cylinder hydraulic circuit, Includes: Ref. 17

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting, stabilizer cylinder hydraulic circuit

1шт.

18

REF

INSTRUCTION

CYLINDER - stabilizer, see Figures 088 - 92 for proper cylinder, stabilizer cylinder hydraulic circuit

2шт.

19

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose, stabilizer cylinder hydraulic circuit

2шт.

20

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

FITTING - male, straight connector, swing cylinder hydraulic circuit, Includes: Ref. 21

2шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting, swing cylinder hydraulic circuit

1шт.

22

D37219

HOSE

- to swing cylinders, 30" (762 mm) long, swing cylinder hydraulic circuit, Includes: Ref. 23

2шт.

24

REF

INSTRUCTION

CYLINDER - R.H. swing, see Figures 94 - 100 for proper cylinder, swing cylinder hydraulic circuit

1шт.

25

REF

INSTRUCTION

CYLINDER - L.H. swing, see Figures 94 - 100 for proper cylinder, swing cylinder hydraulic circuit

1шт.

26

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

- crossover, swing cylinders, 23-1/2" (597 mm) long, swing cylinder hydraulic circuit, Includes: Ref. 27

2шт.

28

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

FITTING - 90 degree, adjustable elbow, R.H. swing cylinder hydraulic circuit, Includes: Ref. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting, swing cylinder hydraulic circuit

1шт.

30

D36934

FITTING

- adjustable, 90 degree elbow, L.H. swing cylinder hydraulic circuit, Includes: Ref. 31

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting, swing cylinder hydraulic circuit

1шт.

32

D45555

FITTING

RESTRICTOR - flow control, swing cylinder hydraulic circuit

2шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- hose, swing cylinder hydralic circuit

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- hose, swing cylinder hydraulic circuit

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- hose, swing cylinder hydraulic circuit

1шт.
