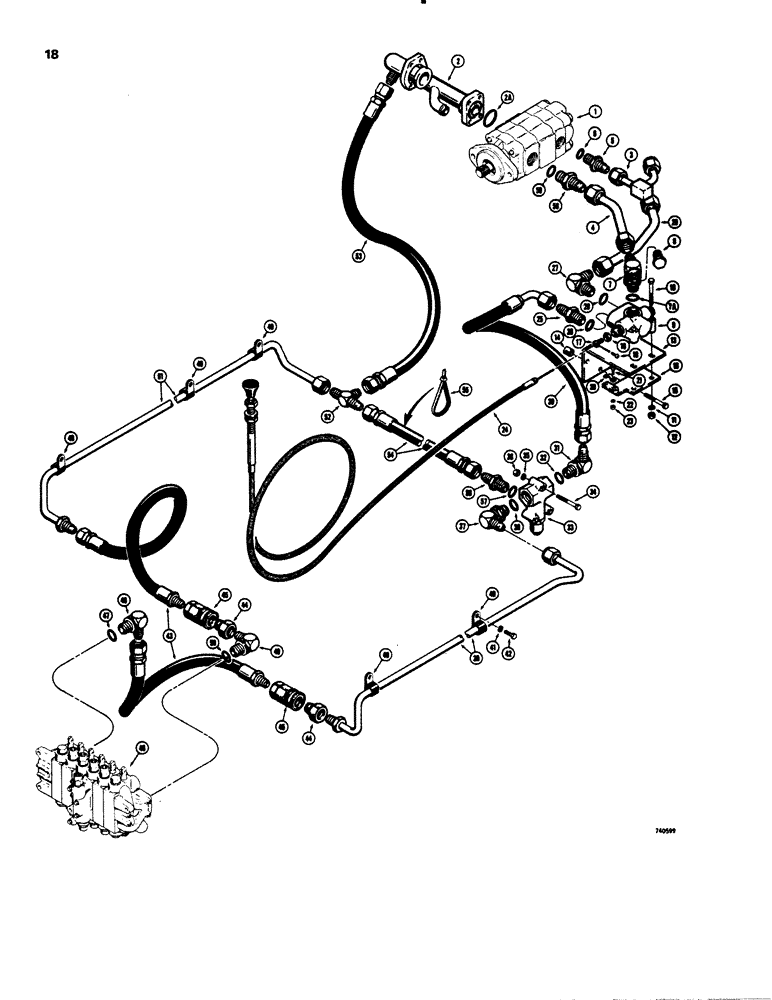

Запчасти Case 26C (018) - W14 LOADER TO BACKHOE HYDRAULIC CIRCUIT
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
PUMP - hydraulic, see W14 Loader Parts Catalog
1шт.
2
L54948
MANIFOLD
Pump suction
1шт.
3
L53111
TUBE,4, 3.1" L
ASSEMBLY - to steering pump
1шт.
4
L54969
TUBE,1" OD x 7.7, 3.5" L
ASSEMBLY - to diverter valve
1шт.
5
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
FITTING - male, straight connector, Incl. Ref. 6
2шт.
6
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Fitting
1шт.
7
L55496
FITTING
Hydraulic, backhoe supply, Includes Ref. 7A
1шт.
7a
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
Fitting
1шт.
8
221-655
PLUG,Hex Hd, 3/4"-14
3/4" NPT
1шт.
9
L55038
VALVE
Selector, parts list Figure 052
1шт.
10
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
2шт.
11
92-6
LOCK WASHER,3/8"
2шт.
12
25-106
NUT,3/8"-16, G5
Hex
2шт.
13
L54962
BRACKET
Selector valve mounting
1шт.
14
L55340
SPACER
Bracket mounting
3шт.
15
13-652
BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5
3шт.
16
L55198
BRACKET
SPARE PART Selector valve cable mounting
1шт.
17
L55199
SCREW,3/8" - 16 x 1"
Set, 3/8" - 16 NC x 1"
1шт.
18
169-73
SCREW,Fil Hd, #8 - 32 x 1/4"
Fillister head
1шт.
19
25-146
JAM NUT,Jam, 3/8"-16, G5
Hex, lock
1шт.
20
L12441
CLAMP
Cable retaining
1шт.
21
177-98
SPARE PART No. 10 - 32 NF x 9/16"
2шт.
22
92-3
LOCK WASHER,#10
2шт.
23
129-37
NUT,#10-32
2шт.
24
L55748
CABLE
ASSEMBLY - selector valve, parts list Figure 052
1шт.
25
218-5077
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
FITTING, Incl. Ref. 26
1шт.
27
218-5110
ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Adjustable, Incl. Ref. 28
1шт.
28
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
Fitting
1шт.
29
L55032
TUBE,1" OD
ASSEMBLY - to loader
1шт.
30
L54974
HOSE
Backhoe supply from selector valve to relief valve
1шт.
31
218-5118
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Adjustable, Includes Ref. 32
1шт.
32
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Fitting
1шт.
33
L56060
VALVE
Relief, parts list Figure 054
1шт.
34
13-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
3шт.
35
92-6
LOCK WASHER,3/8"
3шт.
36
25-106
NUT,3/8"-16, G5
Hex
3шт.
37
218-5118
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Adjustable, Includes Ref. 38
1шт.
38
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Fitting
1шт.
39
L55519
TUBE,0.75" OD
ASSEMBLY - to backhoe valve
1шт.
40
515-23190
CLAMP,3/4", Insul, 3/8" Bolt
CLIP - tube to frame
5шт.
41
92-6
LOCK WASHER,3/8"
5шт.
42
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
5шт.
43
36232
HOSE ASSY.
Inlet and outlet, 32" (813 mm) long
2шт.
44
REF
INSTRUCTION
COUPLING - disconnect, male, see Figures 048 or 050
2шт.
45
REF
INSTRUCTION
COUPLING - disconnect, female, see Figures 048 or 050
2шт.
46
218-5118
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Adjustable, Includes Ref. 47
1шт.
47
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Fitting
1шт.
48
REF
INSTRUCTION
VALVE - backhoe control, see Figures 062 and 074 for proper valve
1шт.
49
218-5311
ELBOW
FITTING - 90 degree, adjustable elbow, Includes Ref. 50
1шт.
50
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Fitting
1шт.
51
L55523
TUBE,0.75" OD
ASSEMBLY - from backhoe
1шт.
52
218-596
TEE,1 1/16"-12 37 Degree
FITTING
1шт.
53
L55004
HOSE
To suction manifold, 29" (737 mm) long
1шт.
54
L54982
HOSE
Relief valve to suction manifold, 24" (610 mm) long
1шт.
55
L18331
CABLE TIE,375.9mm L, Nylon
CABLE STRAP Nylon, hose to filler tube
1шт.
56
218-5077
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
FITTING, Incl. Ref. 57
1шт.
58
218-5069
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
FITTING - male, straight connector, Incl. Ref. 59
1шт.
59
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
Fitting
1шт.
Выбрано товаров: 60
