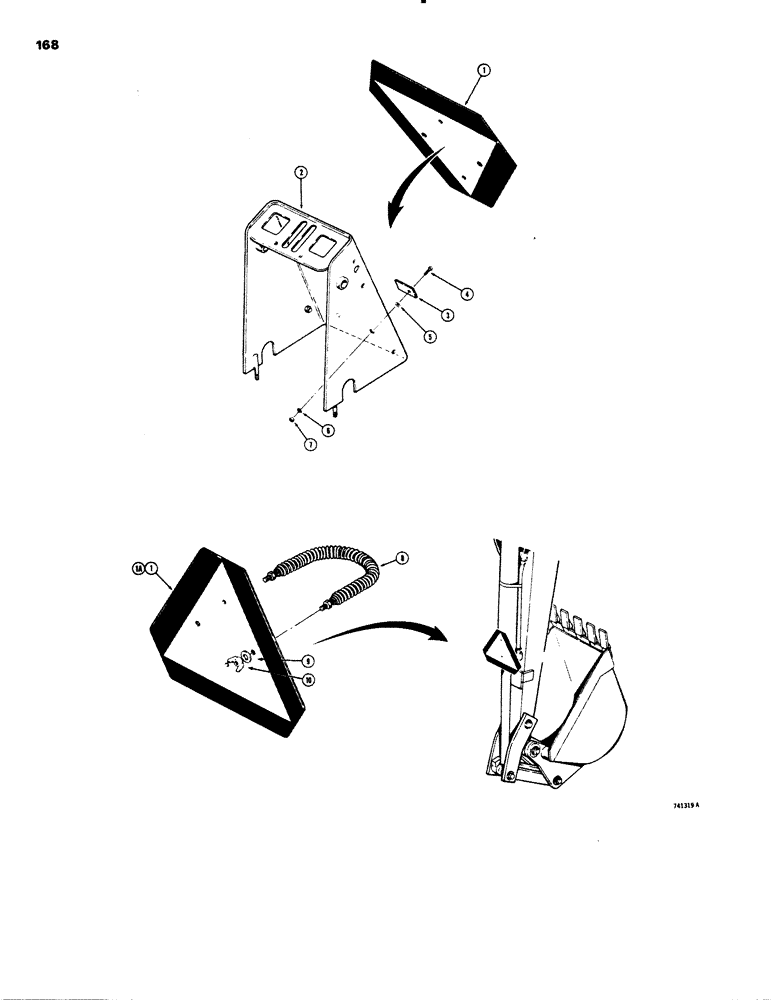

Запчасти Case 26C (168) - SLOW MOVING VEHICLE EMBLEM, SPRING MOUNTING ON HAND SWING MODELS ONLY

1

D52581

TRAFFIC SIGN

EMBLEM - slow moving vehicle, Includes: Ref. 1A

1шт.

1a

321-1751

DECAL

Emblem

1шт.

2

REF

INSTRUCTION

CONTROL TOWER - see Figures 156 - 160

1шт.

3

D51330

SPARE PART Emblem mounting, storage

2шт.

4

75-414

SCREW,Rd, 1/4" x 7/8"

1/4" - 20 NC x 7/8"

2шт.

5

195-18

WASHER,1/4"

2шт.

6

92-4

LOCK WASHER,1/4"

2шт.

7

25-104

NUT,1/4"-20, G5

2шт.

8

D52564

SPRING

Emblem mounting

1шт.

9

195-518

WASHER,1/4", SAE

2шт.

10

129-409

WING NUT,1/4"-20

2шт.
