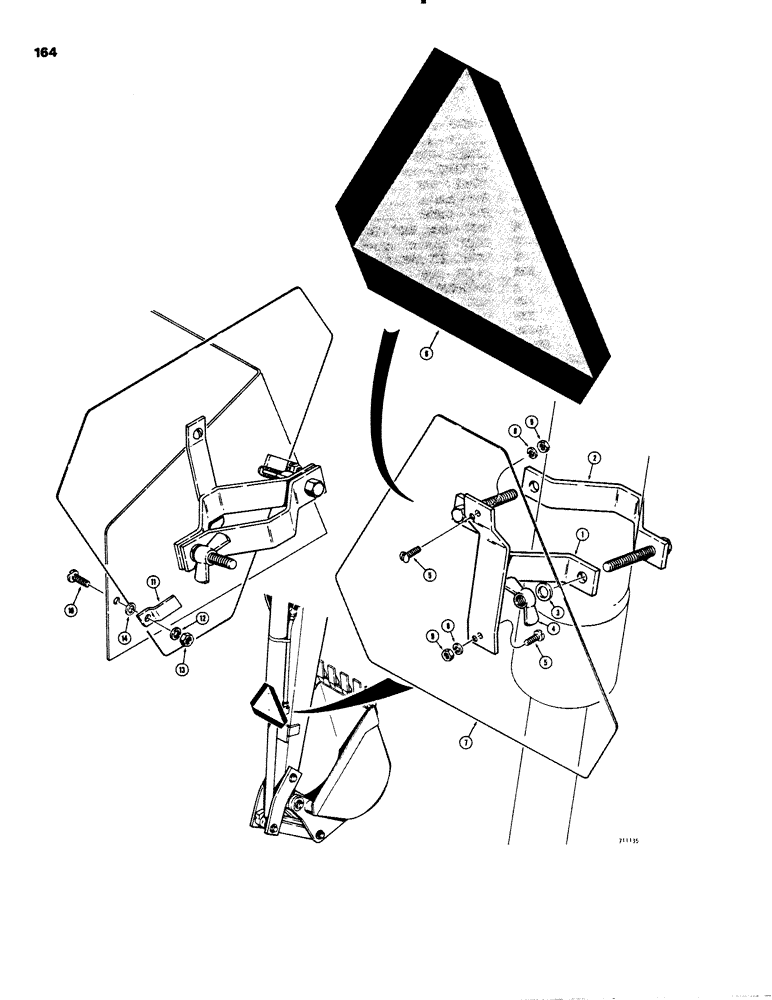

Запчасти Case 26C (164) - SLOW MOVING VEHICLE EMBLEM, MODELS WITH T-TYPE MOUNTING BRACKET

18

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

4шт.

19

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

20

D1038223

SPRING

Ring, Snap, 1.438", Int, #143

2шт.

21

D38297

SPHERICAL BEARING,22.23mm ID x 36.51mm OD x 19.43mm W

- pivotal ball type

2шт.

22

D38303

ADAPTER

LEVER - pivotal, R.H.

1шт.

23

D38302

ADAPTER

LEVER - pivotal, L.H.

1шт.

24

D38305

BLOCK

WEAR BLOCK - lever

8шт.

25

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, lock, 3/8" - 24 NF

8шт.

26

92-6

LOCK WASHER,3/8"

4шт.

27

D38296

JOINT

- ball type

4шт.

28

D45884

ROD - bent, connecting, dipper control

1шт.

29

D45885

ROD - bent, connecting, bucket control

1шт.

30

D45883

ROD - straight, connecting, boom and swing control

2шт.

31

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

32

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Connecting rod mounting 5/16" x .940"

6шт.

33

D49996

KNOB

- control lever, small

2шт.

34

D54340

HANDLE

LEVER - control, R.H. stabilizer NO

1шт.
