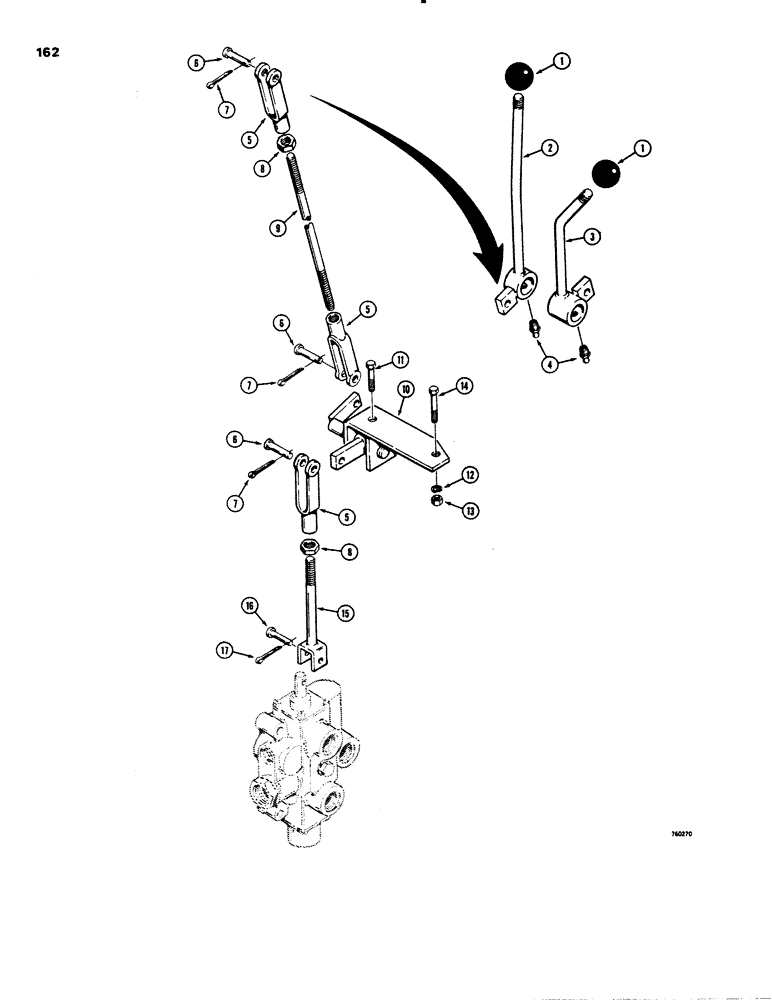

Запчасти Case 26C (162) - EXTENDABLE DIPPER CONTROL

1

D59912

KNOB

- control lever

2шт.

2

D56483

HANDLE

LEVER - extendable dipper

1шт.

For other control levers and related parts see Figures 148 through 154.

1шт.

3

D56480

LEVER - R.H. stabilizer

1шт.

For other control levers and related parts see Figures 148 through 154.

1шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

5

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - 3/8"

3шт.

6

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

3шт.

7

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

3шт.

8

25-116

NUT,Hex, 3/8"-24, G5

- lock, 3/8" - 24 NF

2шт.

9

D56479

ROD

- control, upper

1шт.

10

D57070

BRACKET AND SHAFT - extendable dipper control

1шт.

11

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" - 16 NC x 2"

1шт.

15

D56436

ROD - control, lower

1шт.

16

D50559

CLEVIS,9.53mm OD x 28.32mm L

PIN - clevis

1шт.

17

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.
